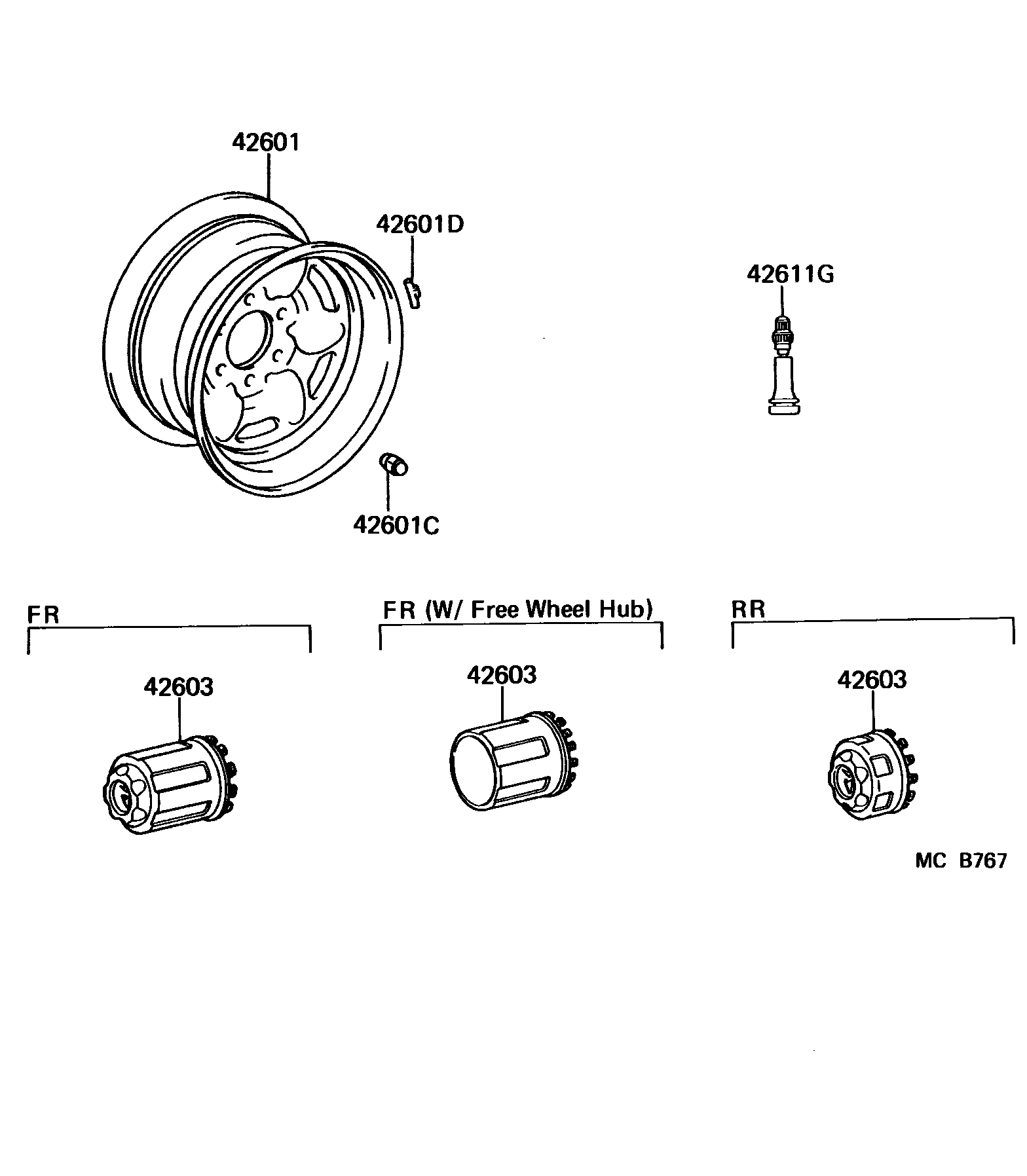

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42601-60130-05×5iBJ70198411-198707

15X6JJ,6JJ-15,WHITE,WHITE

main42601-60150×5iBJ70198411-198707

6JJ-15,6JJ-15,CHROME PLATED

42601CNUT, HUB (FOR AXLE)

main90942-01047×24iBJ70198411-198707

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03079iBJ70198411-198707

20G,T=10,20G

main90942-03080iBJ70198411-198707

30G,T=9.3,30G

main90942-03081iBJ70198411-198707

40G,T=9.3,40G

main90942-03082iBJ70198411-198707

50G,T=9.3,50G

main90942-03083iBJ70198411-198707

60G,T=9.3,60G

main90942-03084iBJ70198411-198707

70G,T=9.3,70G

main90942-03085iBJ70198411-198707

80G,T=9.3,80G

main90942-03086iBJ70198411-198707

100G,100G

main90942-03107iBJ70198411-198707

10G,T=8,10G

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-35080×2iBJ70198411-198707

*STE,FR,W/FREE WHEEL HUB

main42603-60012×2iBJ70198411-198608

FR

main42603-60052×2iBJ70198411-198707

RR

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iBJ70198411-198707

5 parts on this diagram · 1 diagram in section
