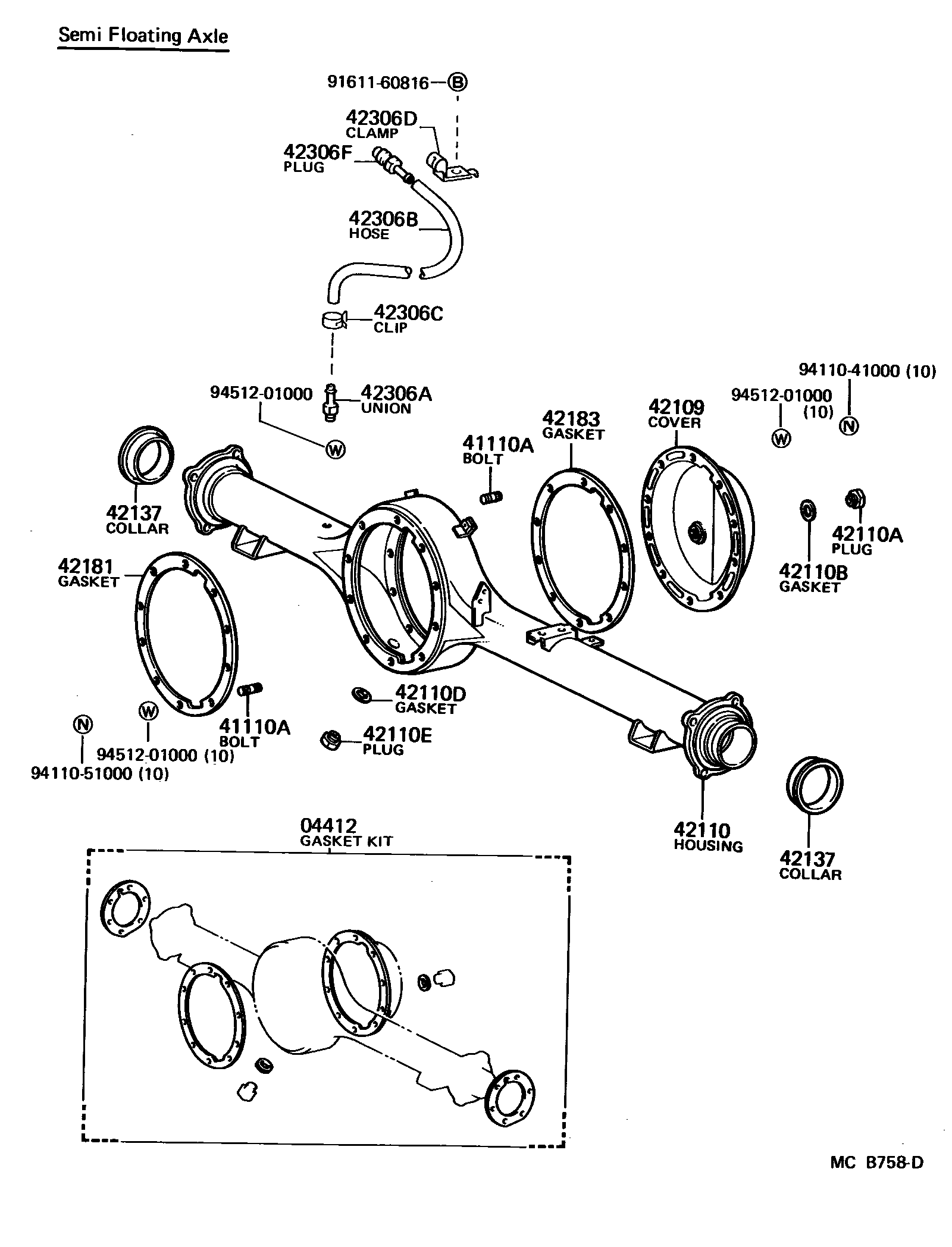

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-60030iBJ70198608-198707

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-60100iBJ70198411-198707

*FGR=37:10=3.700

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-10074×8iBJ70198411-198707

S=16 & 12.5,L=40.5,L=40.5,S=12.5 & 16

main90116-10075×2iBJ70198411-198707

S=18 & 12.5,L=53.5,L=53.5,S=12.5 & 18

main90116-10076×10iBJ70198411-198707

S=15 & 12.5,L=35.5,L=35.5,S=12.5 & 15

42109COVER SUB-ASSY, REAR AXLE HOUSING

main42109-60050iBJ70198411-198707

42110HOUSING ASSY, REAR AXLE

main42110-60250iBJ70198411-198608

main42110-60251iBJ70198608-198707

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iBJ70198411-198707

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iBJ70198411-198707

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iBJ70198411-198707

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iBJ70198411-198707

42137COLLAR, REAR AXLE HOUSING SIDE

main42137-55010×2iBJ70198411-198707

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-36010iBJ70198411-198707

42183GASKET, REAR AXLE HOUSING COVER

main42183-35010iBJ70198411-198707

42306AUNION (FOR REAR AXLE BREATHER HOUSE)

main90404-10018iBJ70198411-198707

42306BHOSE (FOR REAR AXLE BREATHER)

main95332-06060iBJ70198411-198702

*H,L=480

main95333-06060iBJ70198702-198707

*H,L=480

42306CCLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

main96132-30600iBJ70198411-198707

42306DCLAMP (FOR REAR AXLE BRATHER HOSE)

main90461-10387iBJ70198411-198707

42306FPLUG, BREATHER (FOR REAR AXLE)

main90930-03097iBJ70198411-198707

9161160816

main91611-60816

9411041000

main94110-41000

9411051000

main94110-51000

9451201000

main94512-01000

21 parts on this diagram · 2 diagrams in section
