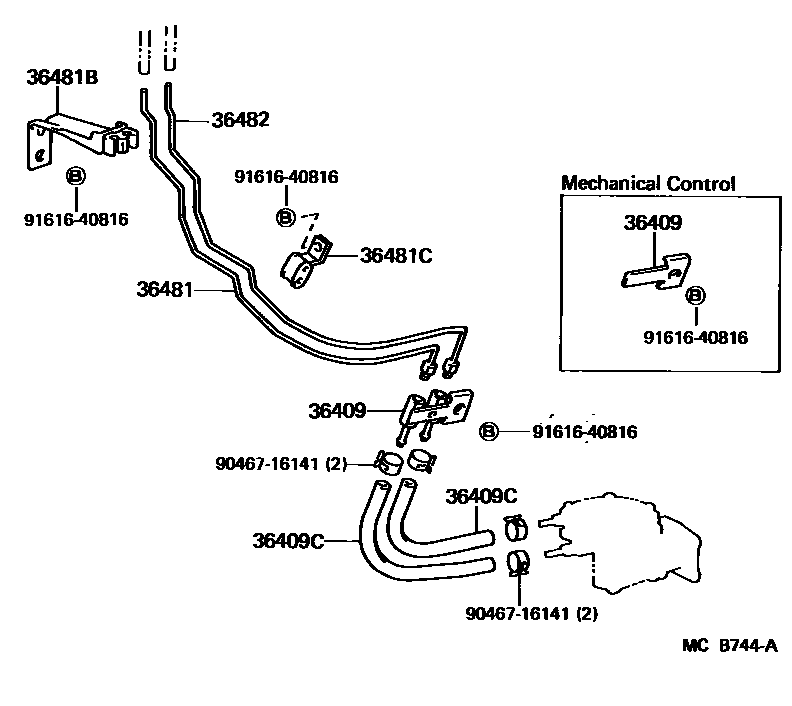

TRANSFER VACUUM PIPING

0001 1 0002 1

36409SUPPORT SUB-ASSY, VACUUM TUBE UNION

main36409-60030iBJ70198411-198707

ELECTRIC CONTROL TRANSFER

main36489-60030iBJ70198411-198707

MECHANICAL CONTROL TRANSFER

36409CHOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)

main95441-09260iBJ70198411-198707

L=260

main95441-09300iBJ70198411-198707

L=300

36481TUBE, FRONT DRIVE VACUUM, NO.1

main36481-60070iBJ70198411-198707

36481BCLAMP, FRONT DRIVE VACUUM TUBE, NO.1

main47371-60040iBJ70198411-198707

36481CCLAMP, FRONT DRIVE VACUUM TUBE, NO.2

main47372-35010iBJ70198411-198707

36482TUBE, FRONT DRIVE VACUUM, NO.2

main36482-60070iBJ70198411-198707

9046716141

main90467-16141

9161640816

main91616-40816

8 parts on this diagram · 2 diagrams in section
