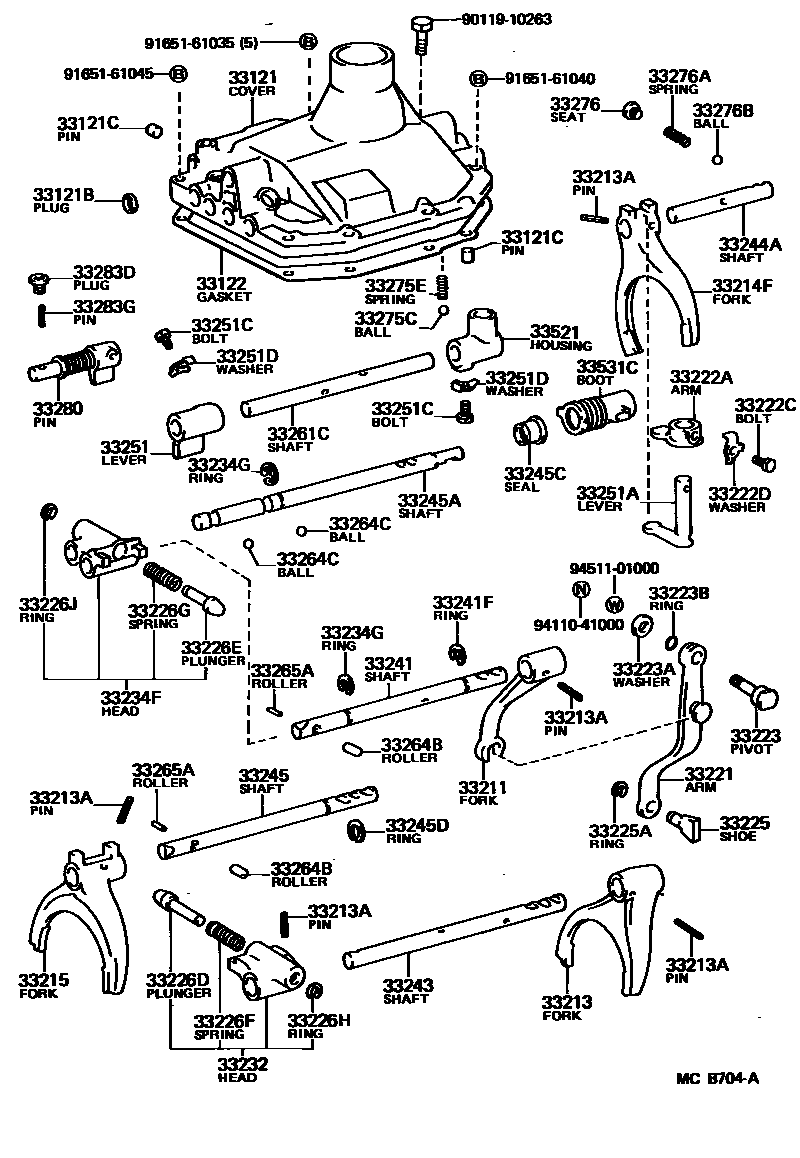

GEAR SHIFT FORK & LEVER SHAFT (MTM)

33121COVER, MANUAL TRANSMISSION CASE

main33102-60080iBJ70198411-198707

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90331-12002iBJ70198411-198609

OD=12

main90331-16050×7iBJ70198411-198609

OD=16

main90331-18001×2iBJ70198411-198609

OD=18

main96411-11600×7iBJ70198609-198707

OD=16

main96411-11800×2iBJ70198609-198612

OD=18

main96411-41200iBJ70198609-198707

OD=12

main96411-41800×2iBJ70198612-198707

OD=18

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214×2iBJ70198411-198707

L=14,OD=10,L=14,OD=10

main90250-10215iBJ70198411-198707

L=9,OD=9,L=8,OD=9.67

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-60010iBJ70198411-198707

33211FORK, REVERSE SHIFT

main33211-36011iBJ70198411-198707

33213FORK, 1ST & 2ND SHIFT

main33212-36020iBJ70198411-198707

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05016×5iBJ70198411-198707

33214FFORK, 5TH SHIFT

main33214-60021iBJ70198411-198707

33215FORK, 3RD & 4TH SHIFT

main33213-60050iBJ70198411-198703

main33213-60051iBJ70198703-198707

33221ARM, REVERSE SHIFT

main33201-36030iBJ70198411-198707

33222AARM, 5TH SHIFT

main33222-36030iBJ70198411-198707

33222CBOLT(FOR 5TH SHIFT ARM)

main90113-08001iBJ70198411-198707

33222DWASHER(FOR 5TH SHIFT ARM)

main90215-09003iBJ70198411-198707

33223PIVOT, SHIFT ARM

main33223-36020iBJ70198411-198707

33223AWASHER(FOR SHIFT ARM PIVOT)

main90201-10092iBJ70198411-198707

33223BRING, O(FOR SHIFT ARM PIVOT)

main96711-19010iBJ70198411-198707

33225SHOE, SHIFT ARM

main33225-36030iBJ70198411-198707

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main90520-08098iBJ70198411-198707

33226DPLUNGER, 1ST & 2ND SHIFT RETURN

main33226-60010iBJ70198411-198707

33226EPLUNGER, REVERSE & 5TH SHIFT RETURN

main33226-60010iBJ70198411-198707

33226FSPRING, COMPRESSION(FOR 1ST & 2ND SHIFT RETURN PLUNGER)

main90501-14076iBJ70198411-198707

33226GSPRING, COMPRESSION(FOR REVERSE & 5TH SHIFT RETURN PLUNGER)

main90501-14069iBJ70198411-198707

33226HRING, SHAFT SNAP(FOR 1ST & 2ND SHIFT RETURN PLUNGER)

main90520-07001iBJ70198411-198707

33226JRING, SHAFT SNAP(FOR REVERSE & 5TH SHIFT RETURN PLUNGER)

main90520-07001iBJ70198411-198707

33232HEAD, 1ST & 2ND SHIFT

main33203-60010iBJ70198411-198707

33234FHEAD, REVERSE & 5TH SHIFT

main33202-60030iBJ70198411-198608

main33202-60031iBJ70198608-198707

33234GRING, E (FOR REVERSE & 5TH SHIFT HEAD)

main90523-15025×2iBJ70198411-198707

33241SHAFT, REVERSE SHIFT FORK

main33241-60050iBJ70198411-198707

33241FRING, E(FOR REVERSE SHIFT FORK SHAFT)

main90523-15025iBJ70198411-198707

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-60030iBJ70198411-198707

33244ASHAFT, 5TH SHIFT FORK

main33244-60010iBJ70198411-198703

main33244-60011iBJ70198703-198707

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-60070iBJ70198411-198703

main33243-60071iBJ70198703-198707

33245ASHAFT, 5TH SHIFT ARM

main33245-60031iBJ70198411-198703

main33245-60032iBJ70198703-198707

33245CSEAL, OIL (FOR 5TH SHIFT ARM SHAFT)

main90311-16002iBJ70198411-198707

33245DRING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT)

main90520-14002iBJ70198411-198707

33251LEVER, SHIFT & SELECT

main33251-60030iBJ70198411-198608

main33251-60031iBJ70198608-198707

33251ALEVER, SHIFT, INNER NO.1

main33251-60021iBJ70198411-198703

main33251-60022iBJ70198703-198707

33251CBOLT, SET (FOR SHIFT & SELECT LEVER)

main90105-08142×2iBJ70198608-198707

main90113-08001×2iBJ70198411-198608

33251DWASHER, LOCK (FOR SHIFT & SELECT LEVER)

main90215-09003×2iBJ70198411-198608

33261CSHAFT, SHIFT & SELECT LEVER

main33261-60020iBJ70198411-198608

main33261-60021iBJ70198608-198707

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90361-10037×2iBJ70198411-198707

L=17.9

33264CBALL (FOR SHIFT INTERLOCK)

main90360-10003×2iBJ70198411-198707

33265AROLLER, NO.2 (FOR INTERLOCK)

main90361-05001×2iBJ70198411-198707

33275CBALL (FOR SHIFT DETENT)

main90360-10003×4iBJ70198411-198707

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-13011×4iBJ70198411-198707

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-10004iBJ70198411-198707

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-10067iBJ70198411-198707

33276BBALL, SHIFT DETENT, NO.2

main90360-08009iBJ70198411-198707

33280PIN ASSY, REVERSE RESTRICT

main33280-60010iBJ70198411-198707

33283DPLUG (FOR REVERSE RESTRICT PIN)

main90341-12008iBJ70198411-198707

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05016iBJ70198411-198707

33521HOUSING, SHIFT LEVER

main33521-60020iBJ70198411-198608

main33521-60021iBJ70198608-198707

33531CBOOT, DUST (FOR 5TH SHIFT ARM SHAFT)

main33531-36040iBJ70198411-198707

9011910263

main90119-10263

9165161035

main91651-61035

9165161040

main91651-61040

9165161045

main91651-61045

9411041000

main94110-41000

9451101000

main94511-01000

59 parts on this diagram · 1 diagram in section
