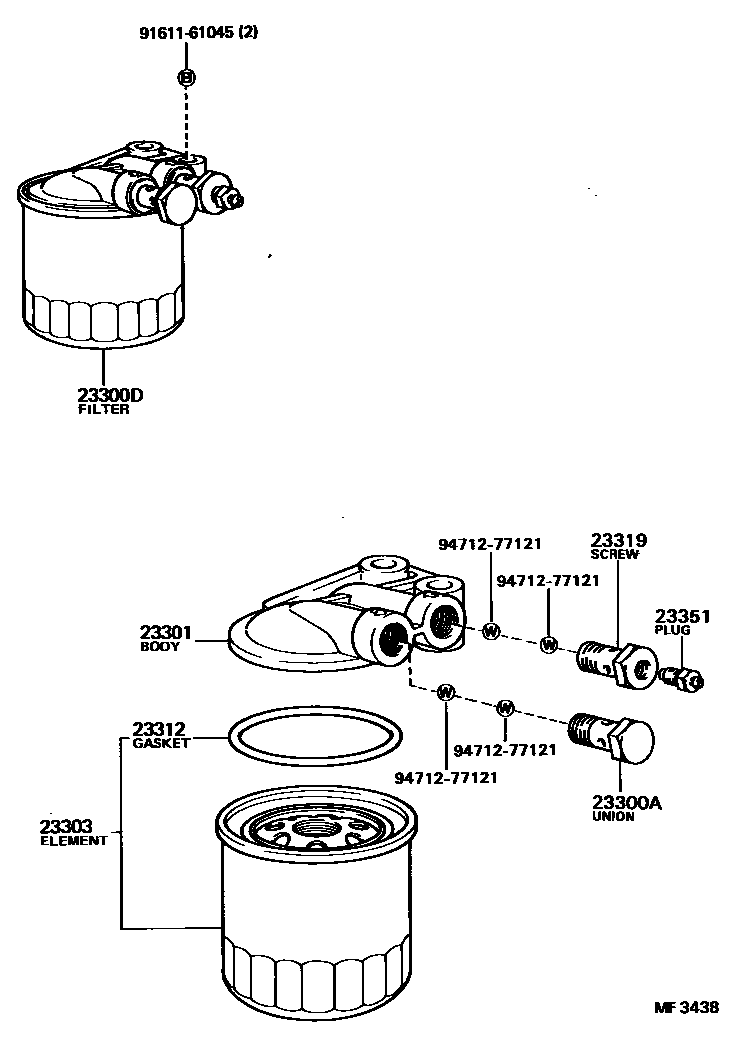

FUEL FILTER

0001 1 0002 1

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90401-14060i3B..BJ70198411-198707

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-56040i3B..BJ70198411-198707

23301BODY SUB-ASSY, FUEL FILTER

main23311-56040i3B..BJ70198411-198707

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-56031i3B..BJ70198411-198707

23312GASKET, FILTER BOWL

main23312-56021i3B..BJ70198411-198707

23319SCREW, FUEL PIPE FOLLOW

main23319-48010i3B..BJ70198411-198707

23351PLUG, AIR VENT

main23323-56010i3B..BJ70198411-198707

SEDIMENTER,NO.2

main23351-54010i3B..BJ70198411-198707

SEDIMENTER,NO.1

main47547-12030i3B..BJ70198411-198707

FILTER

9161161045

main91611-61045

9471277121

main94712-77121

9 parts on this diagram · 2 diagrams in section
