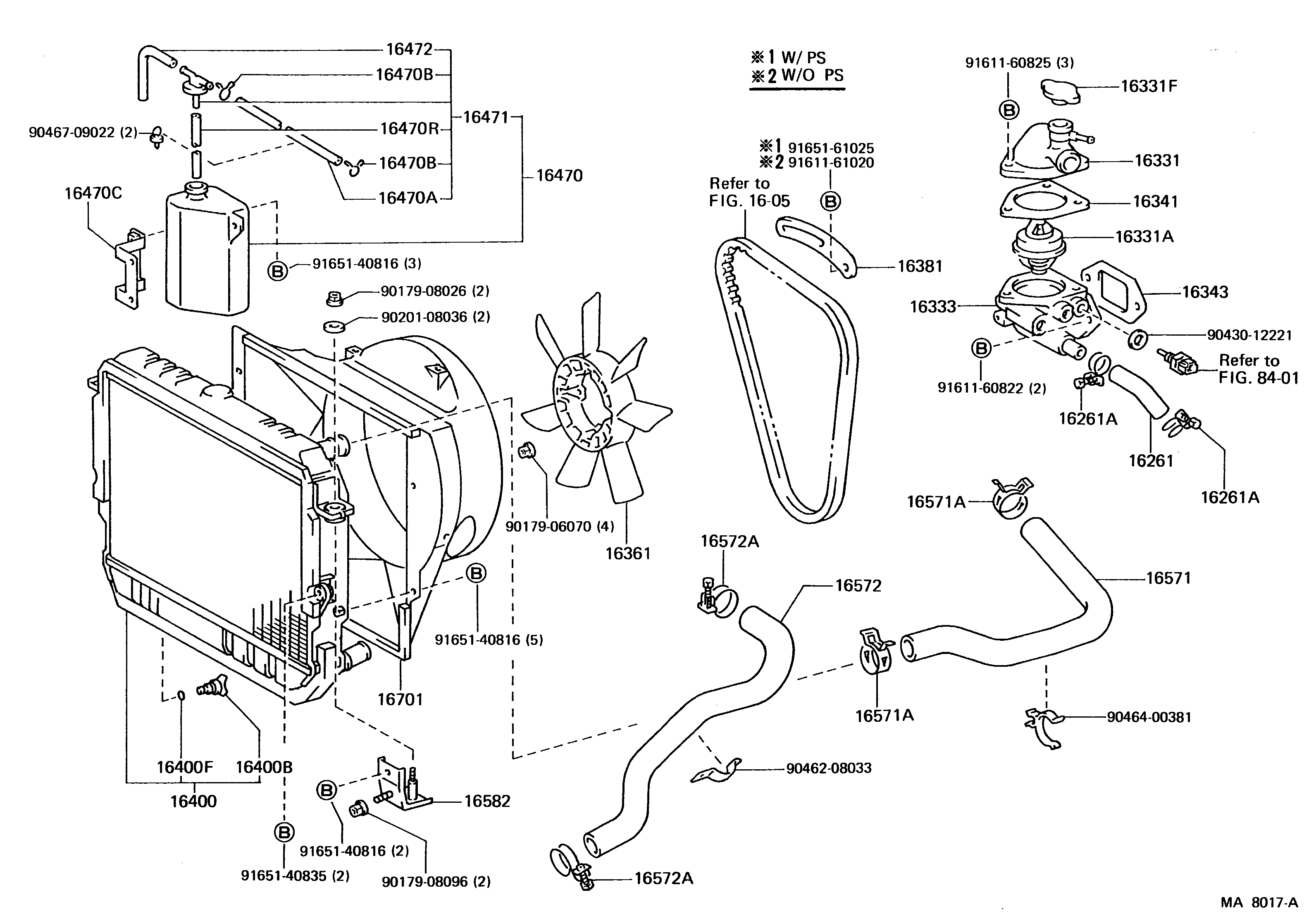

RADIATOR & WATER OUTLET
1605V-BELT
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 88-100
16331FCAP SUB-ASSY(FOR WATER OUTLET)
16333HOUSING, WATER OUTLET
16341GASKET, WATER OUTLET
16343GASKET, WATER OUTLET HOUSING
16361FAN
16381BAR, FAN BELT ADJUSTING
W/PS
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=1800(*H,L=960)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=1450(*H,L=220)
16471CAP SUB-ASSY, RESERVE TANK
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
RADIATOR SIDE
RADIATOR SIDE
WATER PUMP SIDE
WATER PUMP SIDE
16582BRACKET, RADIATOR, NO.1
16701SHROUD SUB-ASSY, FAN
8401SWITCH & RELAY & COMPUTER
9017906070
main90179-06070
9017908026
main90179-08026
9017908096
main90179-08096
9020108036
main90201-08036
9043012221
main90430-12221
9046208033
main90462-08033
9046400381
main90464-00381
9046709022
main90467-09022
9161160822
main91611-60822
9161160825
main91611-60825
9161161020
main91611-61020
9165140816
main91651-40816
9165140835
main91651-40835
9165161025
main91651-61025
42 parts on this diagram · 1 diagram in section
