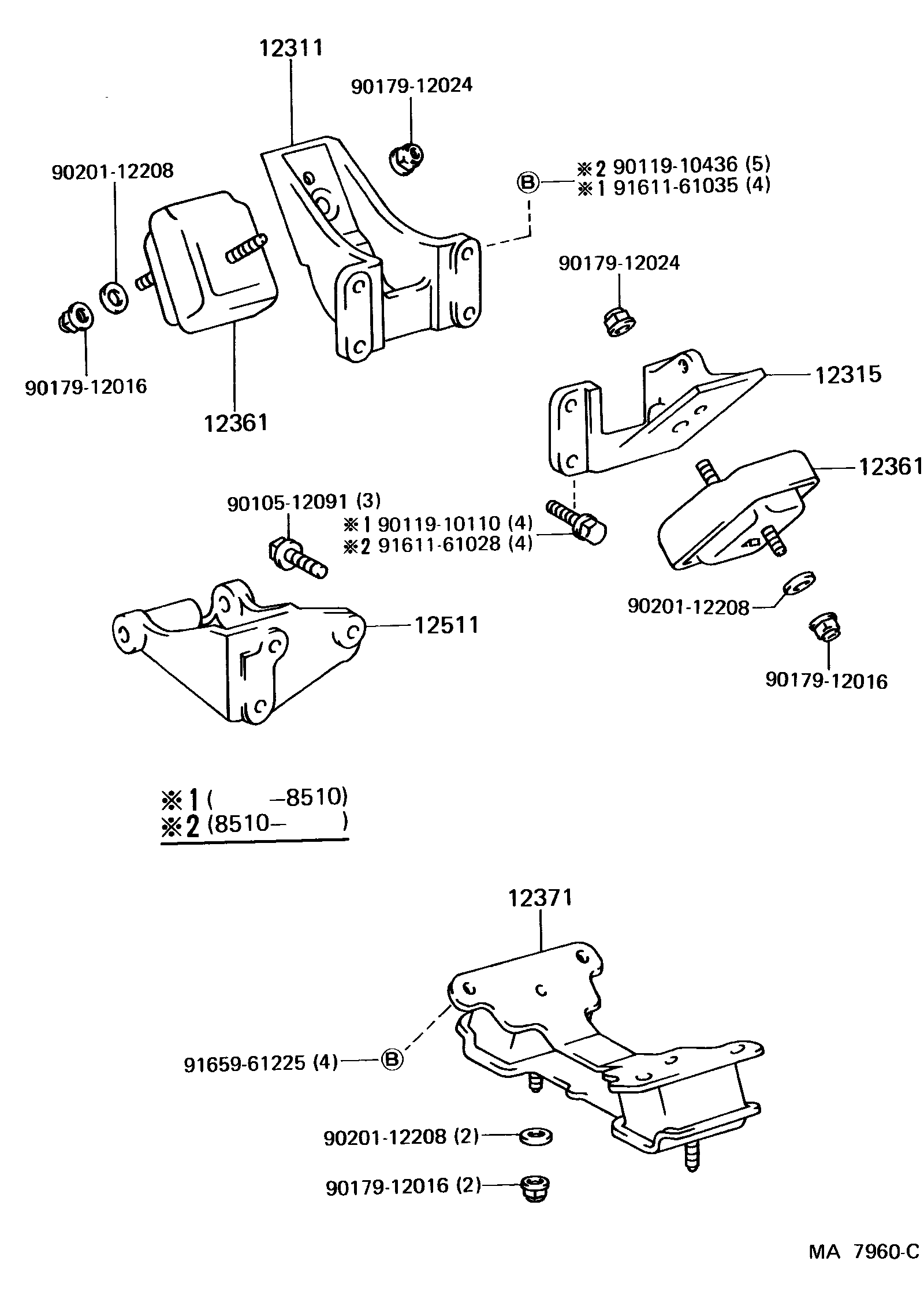

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-58031i3B..BJ70198411-198612

main12311-58032i3B..BJ70198612-198707

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-58020i3B..BJ70198411-198707

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-58030×2i3B..BJ70198411-198607

main12361-58060×2i3B..BJ70198607-198707

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-58020i3B..BJ70198411-198707

12511BRACKET, ALTERNATOR, NO.1

main12511-56040i3B..BJ70198411-198707

9010512091

main90105-12091

9011910110

main90119-10110

9011910436

main90119-10436

9017912016

main90179-12016

9017912024

main90179-12024

9020112208

main90201-12208

9161161028

main91611-61028

9161161035

main91611-61035

9165961225

main91659-61225

14 parts on this diagram · 1 diagram in section
