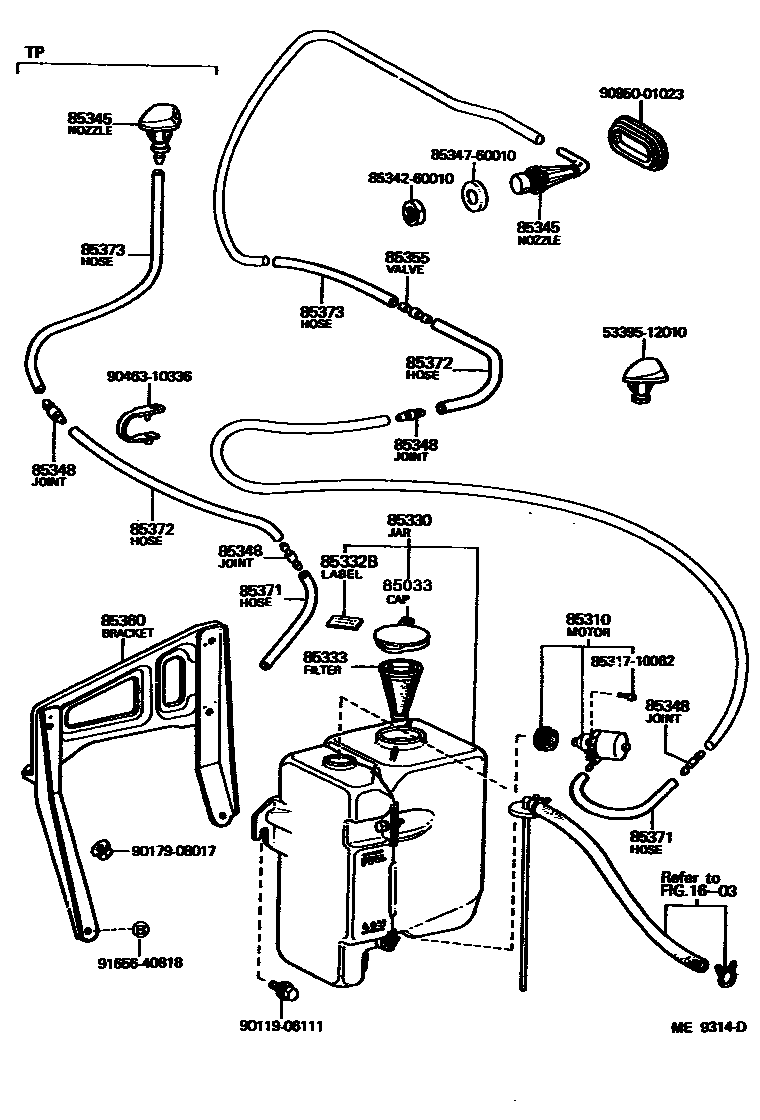

WINDSHIELD WASHER
1603RADIATOR & WATER OUTLET
85033CAP ASSY, WINDSHIELD WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85332BLABEL, WASHER
85333FILTER, WINDSHIELD WASHER JAR
85345NOZZLE, WINDSHIELD WASHER
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
L=42
L=40
85355VALVE, WINDSHIELD WASHER HOSE
85360BRACKET ASSY, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
*H,L=100
L=280
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=200
L=1800(*H,L=1000)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=200
L=1000(*H,L=100)
5339512010COVER, WIND WASHER NOZZLE HOLE
main53395-12010
8531710062WIRING ASSY, WASHER
main85317-10062
8534260010HOLDER, WASHER NOZZLE
main85342-60010
8534760010PACKING, REAR WASHER
main85347-60010
9011906111
main90119-06111
9017908017
main90179-08017
9046310336
main90463-10336
9095001023
main90950-01023
9165640818
main91656-40818
22 parts on this diagram · 4 diagrams in section
