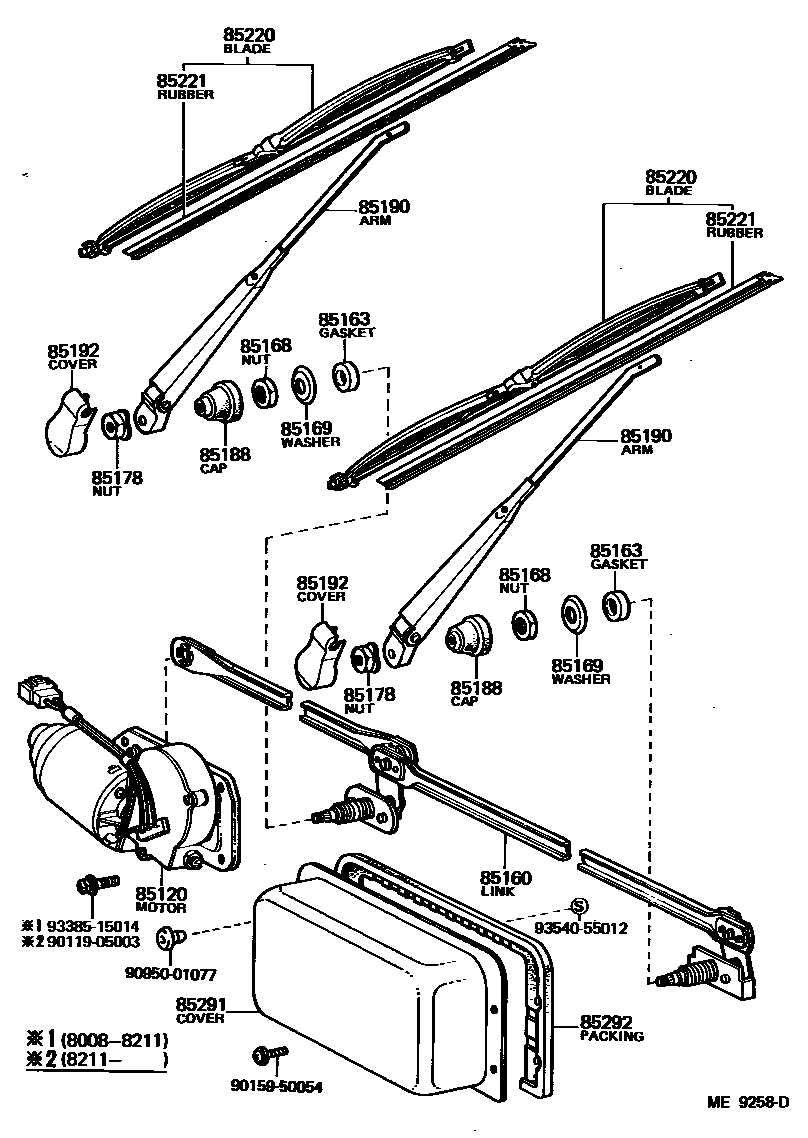

WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-90308iFJ40..USA198008-198012

main85120-90310iFJ40..VKC198008-198012

COLD SPEC

main85120-90311iBJ42198008-198012

main85120-90802iFJ40..USA198012-198110

main85120-90804iFJ40..VKC198012-198110

COLD SPEC

main85120-90805iBJ42198012-198110

main85120-90808iFJ40198110-198309

main85120-90810iFJ40198110-198309

COLD SPEC

main85120-90811iBJ42198110-198410

85160LINK ASSY, WINDSHIELD WIPER

main85160-90300iFJ40..USA198008-198309

main85160-90302iBJ42,FJ40..VKC198008-198410

COLD SPEC

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-25040×2iBJ42,FJ40198008-198410

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-55010×2iBJ42,FJ40198008-198410

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main90209-12002×2iBJ42,FJ40198008-198410

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-06158×2iBJ42,FJ40198008-198410

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-90300×2iBJ42,FJ40198008-198410

85190ARM ASSY, WINDSHIELD WIPER

main85190-90305×2iBJ42,FJ40198008-198410

85192COVER, WINDSHIELD WIPER ARM

main85192-90300×2iBJ42,FJ40198008-198301

main85195-95700×2iBJ42,FJ40198301-198410

85220BLADE ASSY, WINDSHIELD WIPER

main85220-90304×2iBJ42,FJ40198008-198110

main85220-90800×2iBJ42,FJ40198110-198410

85221BLADE, WINDSHIELD WIPER

main85221-90800×2iBJ42,FJ40198008-198110

main85221-90801×2iBJ42,FJ40198110-198410

85291COVER, WINDSHIELD WIPER MOTOR

main85209-90800iBJ42,FJ40198012-198410

main85291-90301iBJ42,FJ40198008-198012

85292PACKING, WINDSHIELD WIPER MOTOR

main85292-90301iBJ42,FJ40198008-198410

9011905003

main90119-05003

9015950054

main90159-50054

9095001077

main90950-01077

9338515014

main93385-15014

9354055012

main93540-55012

18 parts on this diagram · 1 diagram in section
