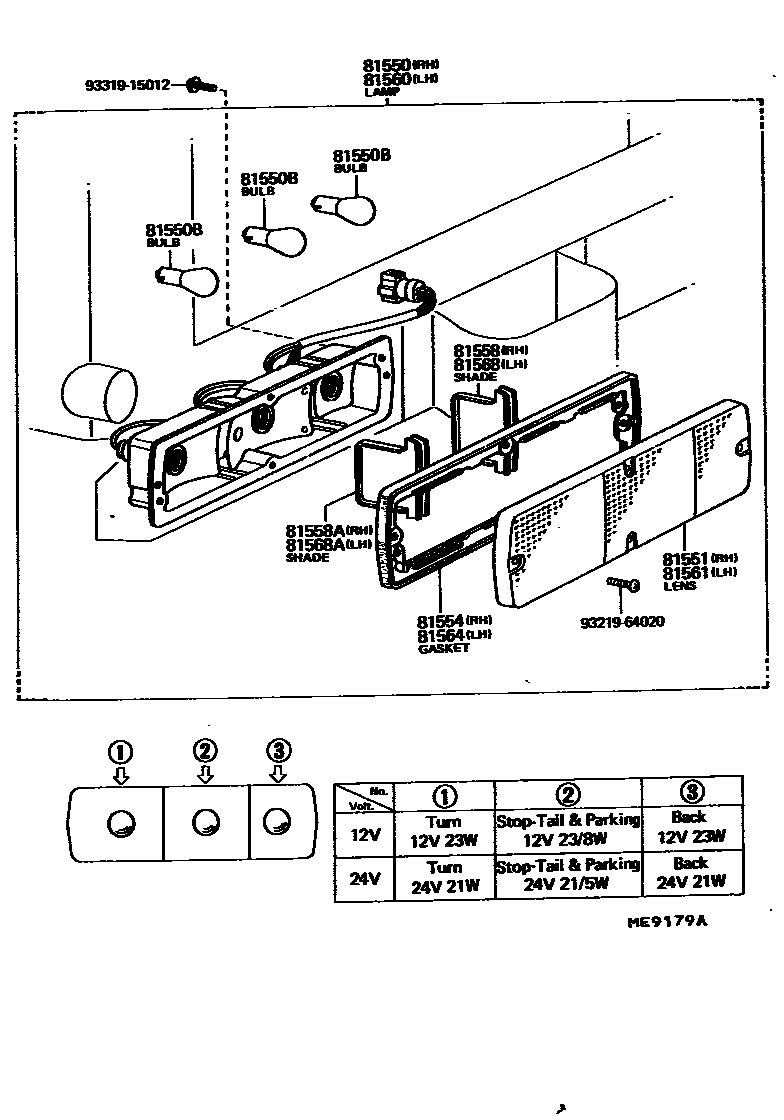

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-60192iFJ40198008-198309

AMBER-RED-CLEAR

main81550-60311iBJ42198008-198410

AMBER-RED-CLEAR

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iBJ42198008-198410

24V 21W,24V 21W

main90981-16015×2iBJ42198008-198410

24V 21/5W,24V 21/5W

main99132-11230×4iFJ40198008-198309

12V 23W,12V 23W

main99132-21230×2iFJ40198008-198309

12V 23/8W,12V 23/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-60180iBJ42,FJ40198008-198410

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-26040iBJ42,FJ40198008-198410

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-26040iBJ42,FJ40198008-198410

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-26040iBJ42,FJ40198008-198410

81560LAMP ASSY, REAR COMBINATION, LH

main81560-60112iFJ40198008-198309

AMBER-RED-CLEAR

main81560-60231iBJ42198008-198410

AMBER-RED-CLEAR

81561LENS, REAR COMBINATION LAMP, LH

main81561-60080iBJ42,FJ40198008-198410

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-26040iBJ42,FJ40198008-198410

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-26040iBJ42,FJ40198008-198410

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-26040iBJ42,FJ40198008-198410

9321964020

main93219-64020

9331915012

main93319-15012

13 parts on this diagram · 1 diagram in section
