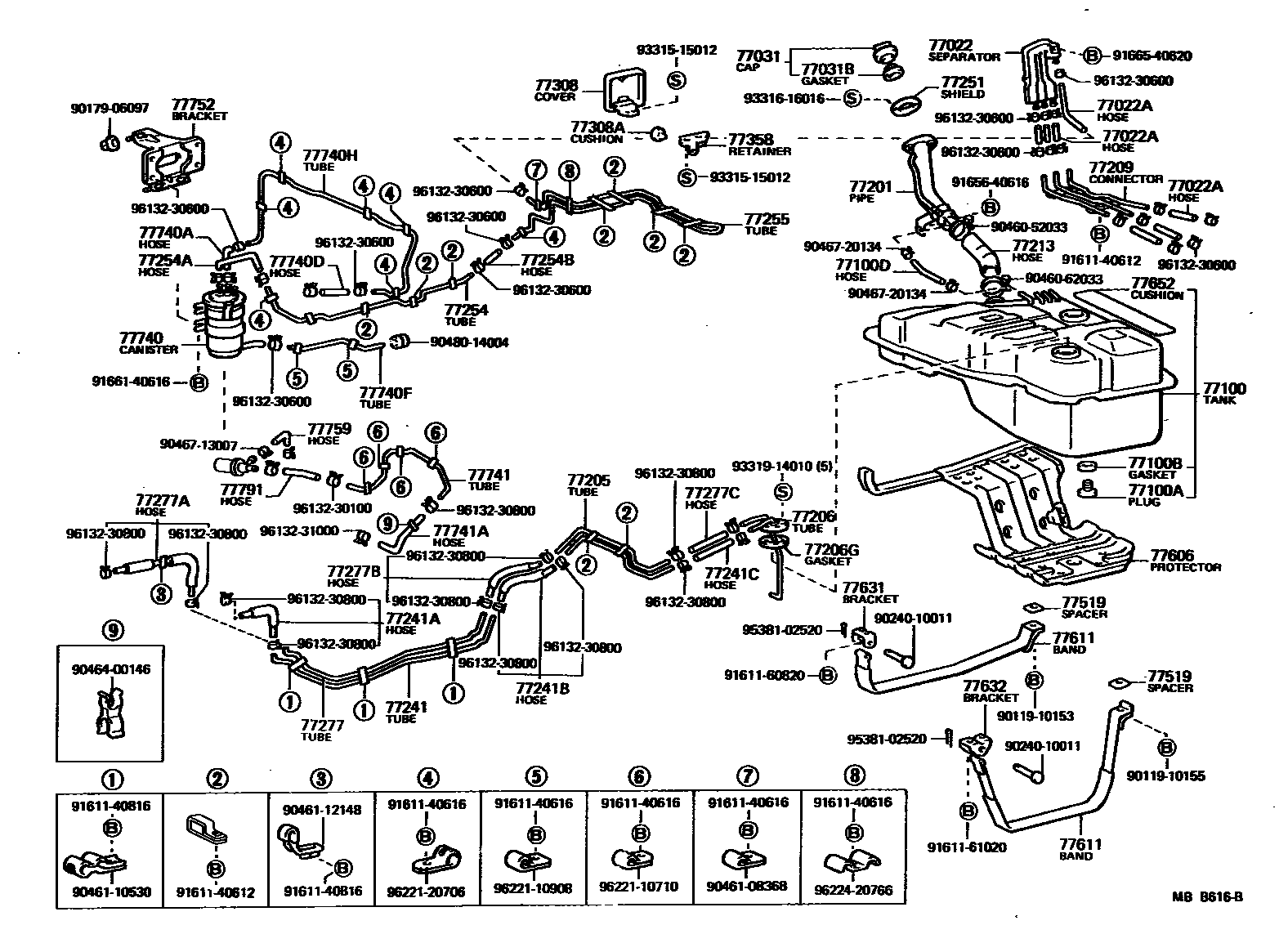

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77193-60013iBJ42,FJ40198008-198410

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06010iBJ42,FJ40..CND198008-198410

L=100(*H,L=60)

sub95333-06010

main95332-06010iBJ42,FJ40..CND198008-198410

L=100(*H,L=80)

sub95333-06010

main95332-06020iBJ42,FJ40198008-198410

L=200(*H,L=150)

sub95333-06020

main95332-06060iFJ40..USA198008-198309

L=600(*H,L=460)

sub95333-06060

77031CAP ASSY, FUEL TANK

main77310-12090iBJ42,FJ40198008-198110

sub77310-12100

main77310-12100iBJ42,FJ40198110-198309

main77310-35061iBJ42198207-198410

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iBJ42,FJ40198008-198410

77100TANK ASSY, FUEL

main77001-60055iBJ42,FJ40198210-198410

sub77001-60140

main77100-60045iBJ42,FJ40198008-198210

77100APLUG(FOR FUEL TANK)

main90341-20003iBJ42,FJ40198210-198410

sub90341-20004

main90341-24036iBJ42,FJ40198008-198210

77100BGASKET(FOR FUEL TANK)

main90430-20006iBJ42,FJ40198210-198410

main90430-24047iBJ42,FJ40198008-198210

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22016iBJ42,FJ40198008-198410

L=220

sub90445-22024

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60052iBJ42,FJ40..CND198008-198410

main77201-60093iFJ40..USA198008-198309

77205TUBE SUB-ASSY, FUEL MAIN

main77205-60050iFJ40198008-198210

main77205-60050iFJ40198210-198309

RR

main77205-60080iFJ40198210-198309

FR

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-60020iFJ40198008-198210

sub77240-60050

main77203-60030iBJ42198008-198210

sub77240-60040

main77240-60040iBJ42198210-198410

main77240-60050iFJ40198210-198309

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iBJ42,FJ40198210-198410

main83361-20030iBJ42,FJ40198008-198210

77209CONNECTOR SUB-ASSY, FUEL TUBE

main77209-60020iBJ42,FJ40198008-198210

sub77209-60021

main77209-60021iBJ42,FJ40198210-198410

77213HOSE, FUEL TANK SUB INLET

main77217-60015iBJ42,FJ40198008-198210

main77217-60030iBJ42,FJ40198210-198410

77241TUBE, FUEL MAIN, NO.1

main77251-60131iBJ42198008-198410

main77251-60151iFJ40198008-198210

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main23906-58010iBJ42198210-198410

W/POWER STEERING

main77260-60070iFJ40198008-198309

main95332-08030iBJ42198008-198410

L=300(*H,L=220)

sub95333-08030

main95332-08040iBJ42198008-198410

L=400(*H,L=380)

sub95333-08040

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main77260-60030iFJ40198008-198309

main95332-08040iBJ42198008-198210

L=400

sub95333-08040

main95332-08060iBJ42198210-198410

L=600(*H,L=440)

sub95333-08060

77241CHOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)

main95332-08020iFJ40198008-198210

L=200(*H,L=170)

sub95333-08020

main95332-08020iFJ40198210-198309

L=200

sub95333-08020

77251SHIELD, FUEL TANK, INLET, NO.1

main77293-60030iBJ42,FJ40198008-198410

77254TUBE, FUEL EMISSION, NO.1

main77245-60040iFJ40..USA198008-198309

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95332-06020iFJ40..USA198008-198309

L=200(*H,L=170)

sub95333-06020

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95332-06020iFJ40..USA198008-198309

L=200(*H,L=150)

sub95333-06020

77255TUBE, FUEL EMISSION, NO.2

main77244-60021iFJ40..USA198008-198210

main77244-60022iFJ40198210-198309

main77244-60050iBJ42,FJ40..CND198008-198210

main77244-60051iBJ42198210-198410

77277TUBE, FUEL RETURN, NO.1

main77255-60081iFJ40198008-198210

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main77250-61040iFJ40198008-198309

main77250-61050iFJ40..VKC..USA198008-198309

W/COOLER

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main77260-60030iFJ40198008-198309

77277CHOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)

main95332-08020iFJ40198008-198210

L=200(*H,L=170)

sub95333-08020

main95332-08020iFJ40198210-198309

L=200

sub95333-08020

77308COVER SUB-ASSY, FUEL INLET BOX

main61802-90302iBJ42,FJ40198008-198410

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-03078iBJ42,FJ40198008-198410

77358RETAINER, FUEL INLET CUSHION

main61824-90302iBJ42,FJ40198008-198410

77519SPACER, FUEL TANK BRACKET

main77519-60010iBJ42,FJ40198008-198410

T=1.0

main77519-60020iBJ42,FJ40198008-198410

T=4.5

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60020iBJ42,FJ40198008-198210

main77606-60021iBJ42,FJ40198210-198410

77611BAND, FUEL TANK

main77601-60041iBJ42,FJ40198008-198410

RH

main77602-60021iBJ42,FJ40198008-198410

LH

77631BRACKET, FUEL TANK, NO.1

main77614-60030iBJ42,FJ40198008-198410

77632BRACKET, FUEL TANK, NO.2

main77615-60020iBJ42,FJ40198008-198410

77652CUSHION, FUEL TANK, NO.1

main77651-60020iBJ42,FJ40198008-198410

750X100

main77652-60011iBJ42,FJ40198008-198410

230X80

sub77653-60010

main77653-60010iBJ42,FJ40198008-198410

350X80

main77654-60010iBJ42,FJ40198008-198410

100X100

sub77653-60010

77740CANISTER ASSY, CHARCOAL

main77740-60014iFJ40..USA198008-198309

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95332-06020iFJ40..USA198008-198309

L=200(*H,L=180)

sub95333-06020

77740DHOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)

main95332-06020iFJ40..USA198008-198309

L=200(*H,L=130)

sub95333-06020

77740FTUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77247-60040iFJ40..USA198008-198309

77740HTUBE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main77246-60050iFJ40..USA198008-198309

77741TUBE, FUEL VAPOR FEED

main77263-60021iFJ40..USA198008-198309

77741AHOSE, FUEL, (FOR VAPOR FEED)

main77249-60020iFJ40..USA198008-198309

77752BRACKET, CHARCOAL CANISTER SUPPORT

main53721-90300iFJ40..USA198008-198309

77759HOSE, CHARCOAL CANISTER

main77759-14011iFJ40..USA198008-198309

77791HOSE, OUTER VENT VALVE TO CARBURETOR

main95331-10014iFJ40..USA198008-198309

L=140

sub95332-10014

9011910153

main90119-10153

9011910155

main90119-10155

9017906097

main90179-06097

9024010011

main90240-10011

9046062033

main90460-62033

9046108368

main90461-08368

9046110530

main90461-10530

9046112148

main90461-12148

9046400146

main90464-00146

9046713007

main90467-13007

9046720134

main90467-20134

9048014004

main90480-14004

9161140612

main91611-40612

9161140616

main91611-40616

9161140816

main91611-40816

9161160820

main91611-60820

9161161020

main91611-61020

9165640616

main91656-40616

9166140616

main91661-40616

9166540620

main91665-40620

9331515012

main93315-15012

9331616016

main93316-16016

9331914010

main93319-14010

9538102520

main95381-02520

9613230100

main96132-30100

9613230600

main96132-30600

9613230800

main96132-30800

9613231000

main96132-31000

9622110710

main96221-10710

9622110908

main96221-10908

9622120706

main96221-20706

9622420766

main96224-20766

78 parts on this diagram · 4 diagrams in section
