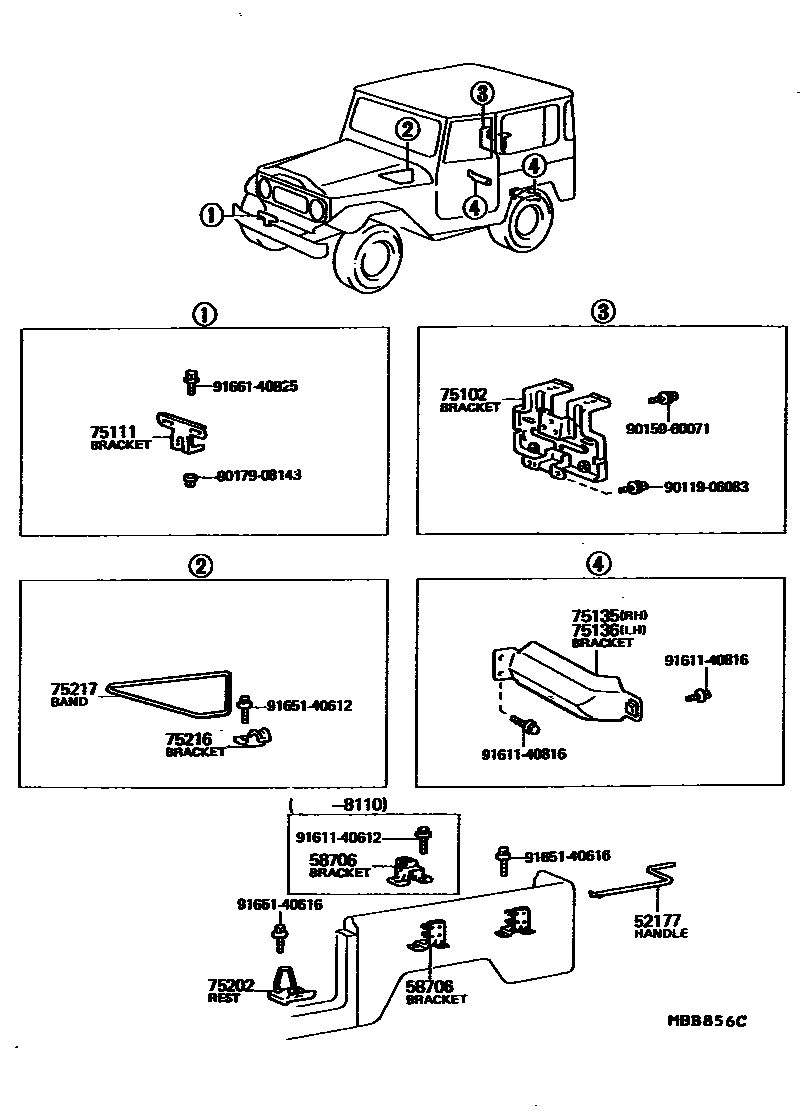

TOOL BOX & LICENSE PLATE BRACKET

52177HANDLE, STARTING OR SPARE WHEEL CARRIER

main51409-66010iFJ40198008-198110

L=850

58706BRACKET SUB-ASSY, JACK HANDLE

main58305-90301×2iBJ42,FJ40198008-198110

main58706-90800×2iBJ42,FJ40198110-198410

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-90303iBJ42,FJ40198008-198410

75111BRACKET, FRONT LICENSE PLATE

main75101-60011iBJ42,FJ40198008-198410

75135BRACKET, COMBINATION REAR LAMP, RH

main75136-60040iBJ42,FJ40198008-198410

75136BRACKET, COMBINATION REAR LAMP, LH

main75138-60020iBJ42,FJ40198008-198410

75202REST SUB-ASSY, JACK

main75202-90300iBJ42,FJ40198008-198410

75216BRACKET, TOOL BAG BAND

main75216-90301iBJ42,FJ40198008-198410

75217BAND, TOOL BAG

main75217-90300iBJ42,FJ40198008-198410

9011906083

main90119-06083

9015960071

main90159-60071

9017908143

main90179-08143

9161140612

main91611-40612

9161140816

main91611-40816

9165140612

main91651-40612

9165140616

main91651-40616

9166140825

main91661-40825

17 parts on this diagram · 1 diagram in section
