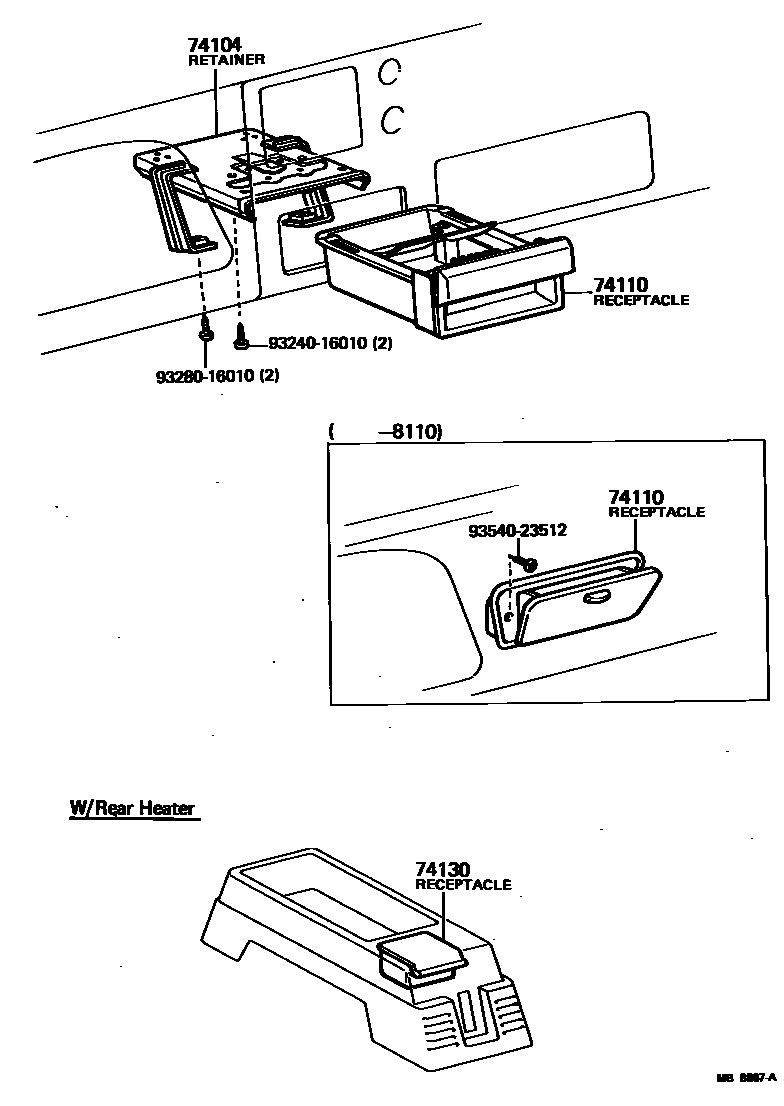

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-90800iBJ42,FJ40198210-198410

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-90800iBJ42,FJ40198210-198410

main74110-60010iBJ42,FJ40198008-198210

74130RECEPTACLE ASSY, REAR ASH

main74130-90800iFJ40..TPS;BJ42,FJ40..CND198008-198210

9324016010

main93240-16010

9328016010

main93280-16010

9354023512

main93540-23512

6 parts on this diagram · 1 diagram in section
