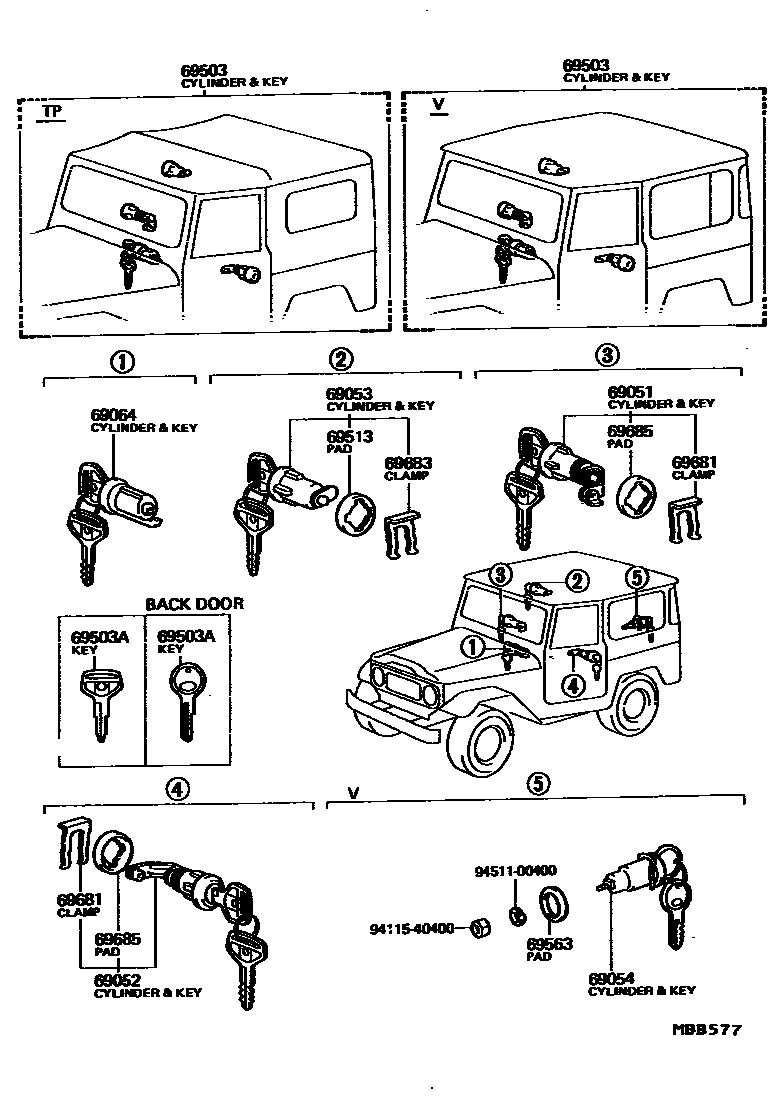

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-69015iBJ42,FJ40198008-198210

main69051-90801iBJ42,FJ40198210-198309

sub69051-90802

main69051-90802iBJ42198309-198410

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-69015iBJ42,FJ40198008-198210

sub69052-90800

main69052-90801iBJ42,FJ40198210-198309

sub69052-90802

main69052-90802iBJ42198309-198410

69053CYLINDER & KEY SET, FUEL INLET LOCK

main69058-90300iBJ42,FJ40198008-198210

sub69058-89113

main69058-90802iBJ42,FJ40198210-198309

sub69058-90805

main69058-90805iBJ42198309-198410

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69510-60010iBJ42,FJ40..VKC198008-198410

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-60011iBJ42198008-198110

W/STEERING LOCK

main69057-90801iFJ40198210-198309

W/O STEERING LOCK

main69057-90802iBJ42,FJ40198210-198309

W/STEERING LOCK

sub69057-90803

main69057-90803iBJ42198309-198410

W/STEERING LOCK

main69064-60021iFJ40198008-198210

W/O STEERING LOCK

main69064-60061iBJ42,FJ40198008-198210

W/STEERING LOCK

sub69057-90800

69503CYLINDER SET, LOCK

main69005-90315iFJ40198008-198210

W/O STEERING LOCK

main69005-90316iFJ40198008-198210

W/STEERING LOCK

main69005-90320iBJ42198008-198110

main69005-90803iFJ40198210-198309

W/O STEERING LOCK

main69005-90806iBJ42,FJ40198210-198309

W/STEERING LOCK

sub69005-90807

main69005-90807iBJ42198309-198410

W/STEERING LOCK

69503AKEY, BLANK

main90999-00006-01iBJ42,FJ40..VKC198008-198410

BACK DOOR,NO.1,BLACK

sub90999-00011

main90999-00006-02iBJ42,FJ40..VKC198008-198410

BACK DOOR,NO.2,RED/MAROON

sub90999-00011

main90999-00006-03iBJ42,FJ40..VKC198008-198410

BACK DOOR,NO.3,GRAY

sub90999-00011

main90999-00006-04iBJ42,FJ40..VKC198008-198410

BACK DOOR,NO.4,BLUE

sub90999-00011

main90999-00006-05iBJ42,FJ40..VKC198008-198410

BACK DOOR,NO.5,BEIGE

sub90999-00011

main90999-00006-06iBJ42,FJ40..VKC198008-198410

BACK DOOR,NO.6,BROWN

sub90999-00011

main90999-00066iBJ42,FJ40198008-198410

MASTER KEY

sub90999-00085

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69685-95400iBJ42,FJ40198008-198410

69563PAD, BACK DOOR LOCK CYLINDER

main69563-90300iBJ42,FJ40198008-198410

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iBJ42,FJ40198008-198410

69683CLAMP, FUEL LOCK CYLINDER

main69681-20040iBJ42,FJ40198008-198410

69685PAD, LOCK CYLINDER

main69685-12010iBJ42,FJ40198008-198410

9411540400

main94115-40400

9451100400

main94511-00400

14 parts on this diagram · 2 diagrams in section
