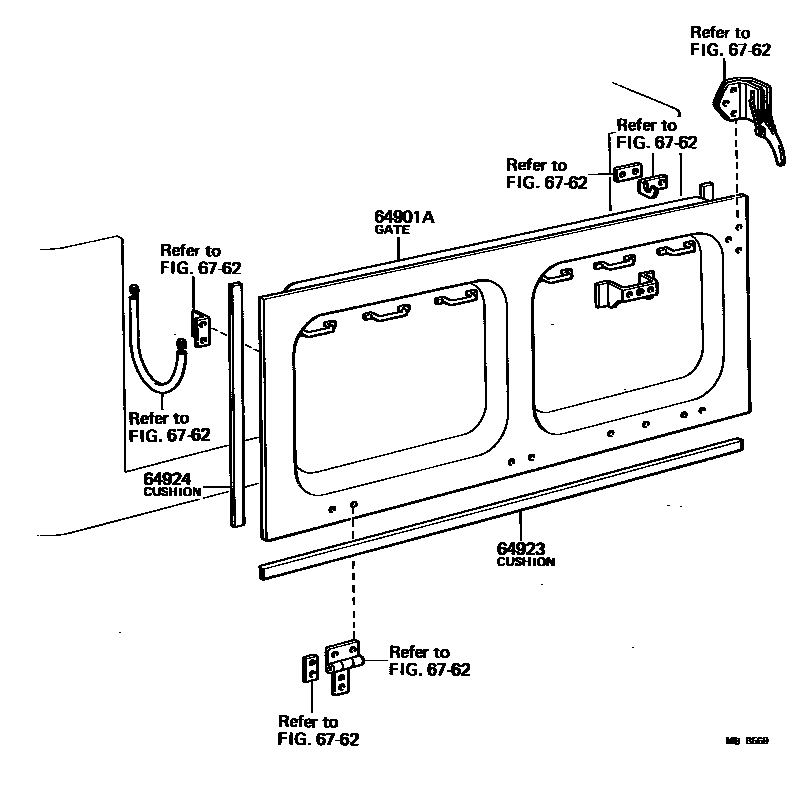

BACK DOOR PANEL & GLASS

0001 1 0002 1

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-90316iFJ40..TPS198008-198110

64923CUSHION, REAR DROP GATE, LOWER

main64923-90300iFJ40..TPS198008-198110

64924CUSHION, REAR DROP GATE, SIDE

main64922-90302×2iFJ40..TPS198008-198110

6762BACK DOOR LOCK & HINGE

→ Go to FIG 67-62

4 parts on this diagram · 2 diagrams in section
