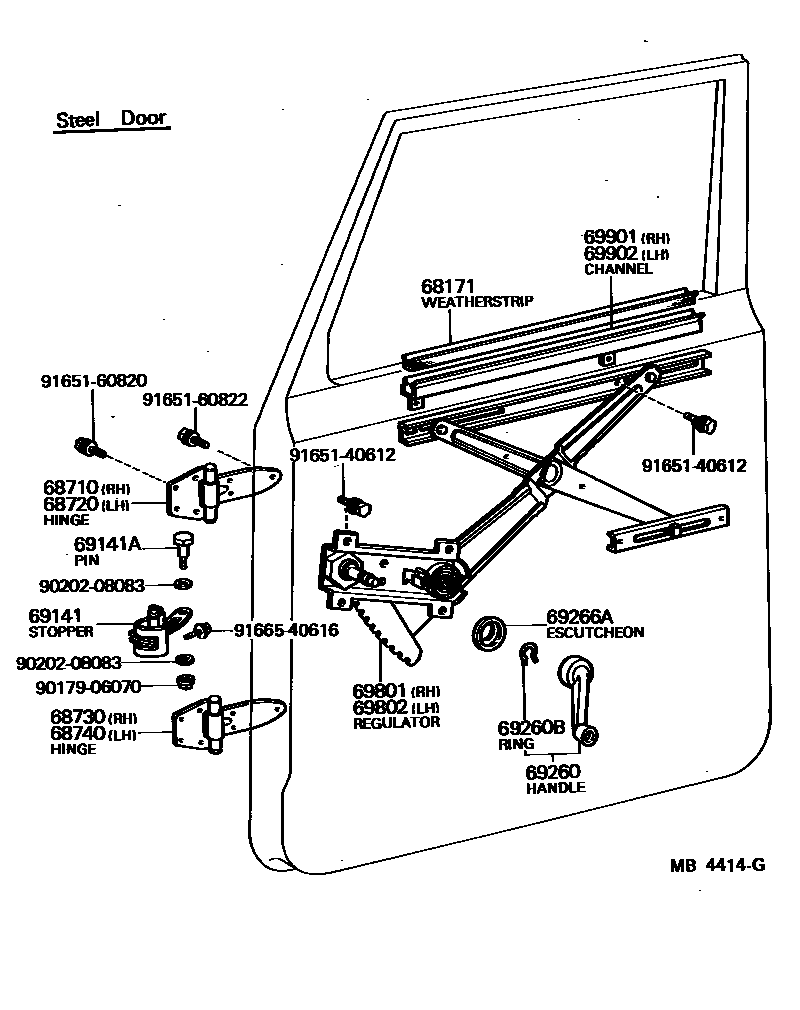

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-90301×2iBJ42,FJ40198008-198410

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-60012iBJ42,FJ40198008-198410

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-60012iBJ42,FJ40198008-198410

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-60012iBJ42,FJ40198008-198410

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68720-60012iBJ42,FJ40198008-198410

69141STOPPER, FRONT DOOR OPEN

main68980-90300×2iBJ42,FJ40198008-198410

STEEL DOOR

69141APIN, FRONT DOOR OPEN STOPPER

main68898-90300×2iBJ42,FJ40198008-198410

STEEL DOOR

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01×2iBJ42,FJ40198008-198410

BLACK

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iBJ42,FJ40198008-198410

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010-01×2iBJ42,FJ40198008-198410

BLACK

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-90303iBJ42,FJ40198008-198410

main69801-90304iBJ42,FJ40198008-198410

W/*VW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-90303iBJ42,FJ40198008-198410

main69802-90304iBJ42,FJ40198008-198410

W/*VW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-90800iBJ42,FJ40198008-198410

W/O *VW

main69901-90801iBJ42,FJ40198008-198410

W/*VW

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-90801iBJ42,FJ40198008-198410

W/*VW

main69902-90800iBJ42,FJ40198008-198410

W/O *VW

9017906070

main90179-06070

9020208083

main90202-08083

9165140612

main91651-40612

9165160820

main91651-60820

9165160822

main91651-60822

9166540616

main91665-40616

20 parts on this diagram · 1 diagram in section
