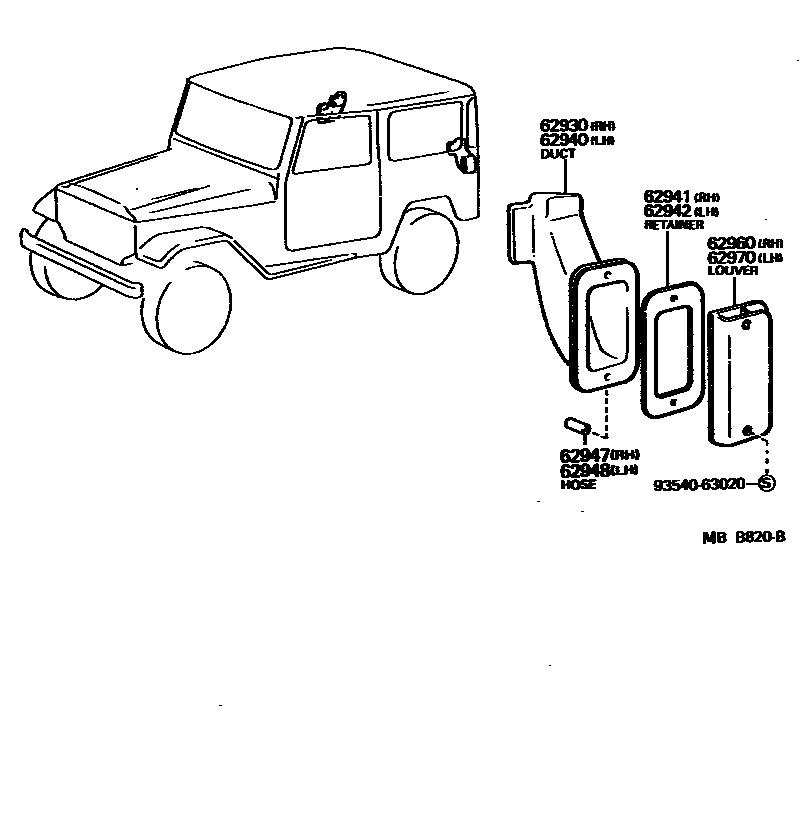

REAR VENTILATOR & ROOF VENTILATOR

62930DUCT ASSY, ROOF SIDE VENT, RH

main62930-90300iBJ42,FJ40..CND198008-198410

62940DUCT ASSY, ROOF SIDE VENT, LH

main62940-90300iBJ42,FJ40..CND198008-198410

62941RETAINER, ROOF SIDE VENT DUCT, RH

main62941-90300iBJ42,FJ40..CND198008-198410

62942RETAINER, ROOF SIDE VENT DUCT, LH

main62941-90300iBJ42,FJ40..CND198008-198410

62947HOSE, ROOF SIDE VENT, RH

main90445-04001iBJ42,FJ40..CND198008-198410

62948HOSE,ROOF SIDE VENT, LH

main90445-04001iBJ42,FJ40..CND198008-198410

62960LOUVER ASSY, ROOF SIDE VENT, RH

main62931-89103iBJ42,FJ40..CND198008-198410

62970LOUVER ASSY, ROOF SIDE VENT, LH

main62931-89103iBJ42,FJ40..CND198008-198410

9354063020

main93540-63020

9 parts on this diagram · 1 diagram in section
