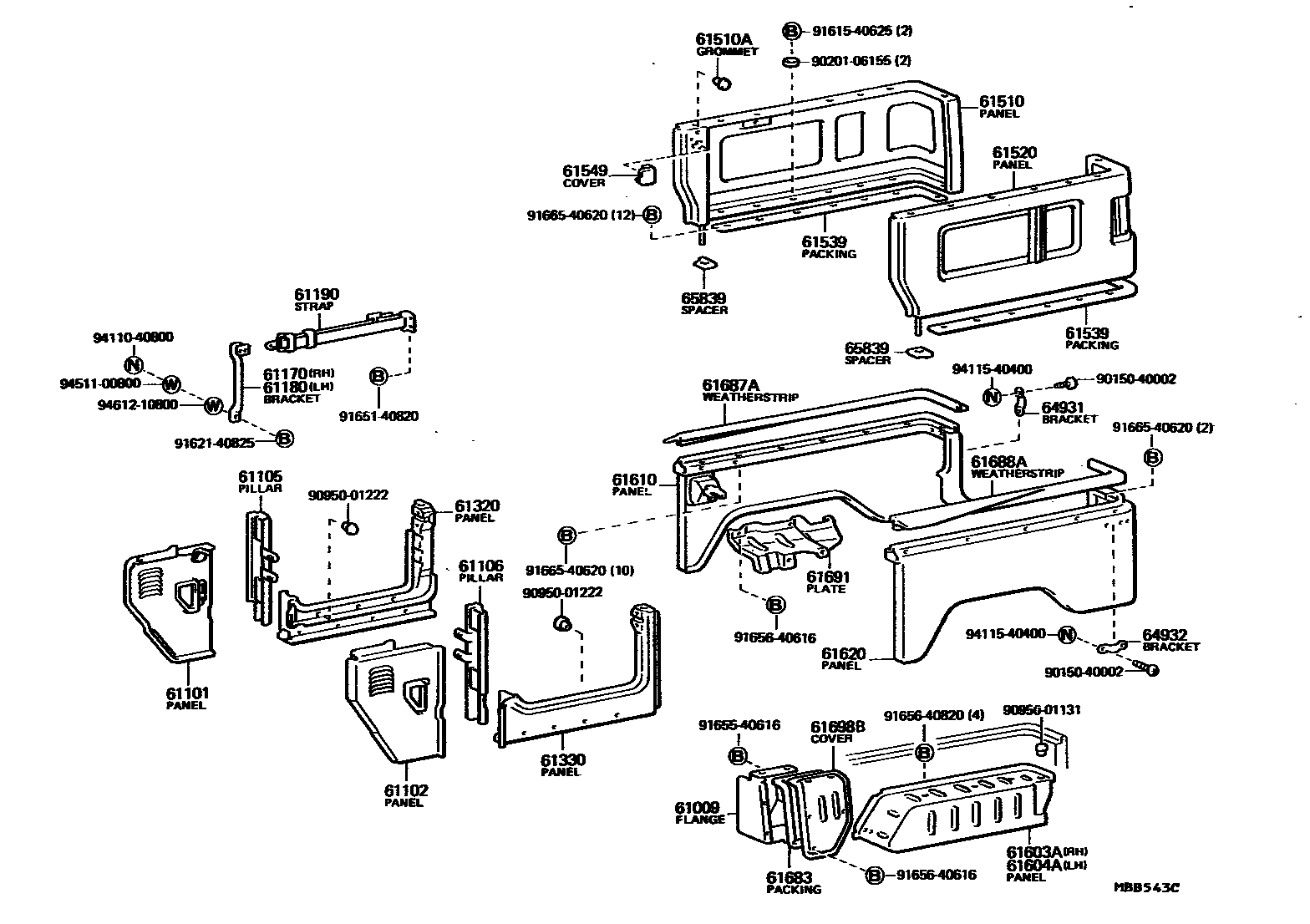

SIDE MEMBER
61009FLANGE SUB-ASSY,REAR SIDE SERVICE HOLE COVER SET
61101PANEL SUB-ASSY, COWL SIDE, RH
W/O ANTENA
W/ANTENA
61102PANEL SUB-ASSY, COWL SIDE, LH
W/O ANTENA
W/O ANTENA
W/ANTENA
61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
W/COOLER
W/COOLER
61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61170BRACKET ASSY, SAFETY STRAP, RH
61180BRACKET ASSY, SAFETY STRAP, LH
61190STRAP ASSY, SAFETY
61320PANEL, REAR BODY FRONT SIDE, RH
61330PANEL, REAR BODY FRONT SIDE, LH
61510PANEL ASSY, REAR UPPER SIDE, RH
61510AGROMMET, SAFETY BELT ANCHORAGE NUT
61520PANEL ASSY, REAR UPPER SIDE,LH
61539PACKING, REAR UPPER SIDE PANEL SET
61549COVER, ROOM SIDE LAMP HOLE
61603AAPRON, REAR FENDER, RH
61604AAPRON, REAR FENDER, LH
61610PANEL ASSY, REAR BODY SIDE, RH
61620PANEL ASSY, REAR BODY SIDE, LH
61683PACKING, REAR BODY REAR SIDE SERVICE HOLE COVER
61687AWEATHERSTRIP, REAR BODY REAR SIDE, RH
61688AWEATHERSTRIP, REAR BODY REAR SIDE, LH
61691PLATE, REAR FENDER UNDER GUARD
61698BCOVER, REAR BODY SIDE SERVICE HOLE
64931BRACKET, BAND, NO.1
64932BRACKET, BAND, NO.2
65839SPACER, FRONT SIDE PANEL PILLAR
9015040002
main90150-40002
9020106155
main90201-06155
9095001131
main90950-01131
9095001222
main90950-01222
9161540625
main91615-40625
9162140825
main91621-40825
9165140820
main91651-40820
9165540616
main91655-40616
9165640616
main91656-40616
9165640820
main91656-40820
9166540620
main91665-40620
9411040800
main94110-40800
9411540400
main94115-40400
9451100800
main94511-00800
9461210800
main94612-10800
42 parts on this diagram · 1 diagram in section
