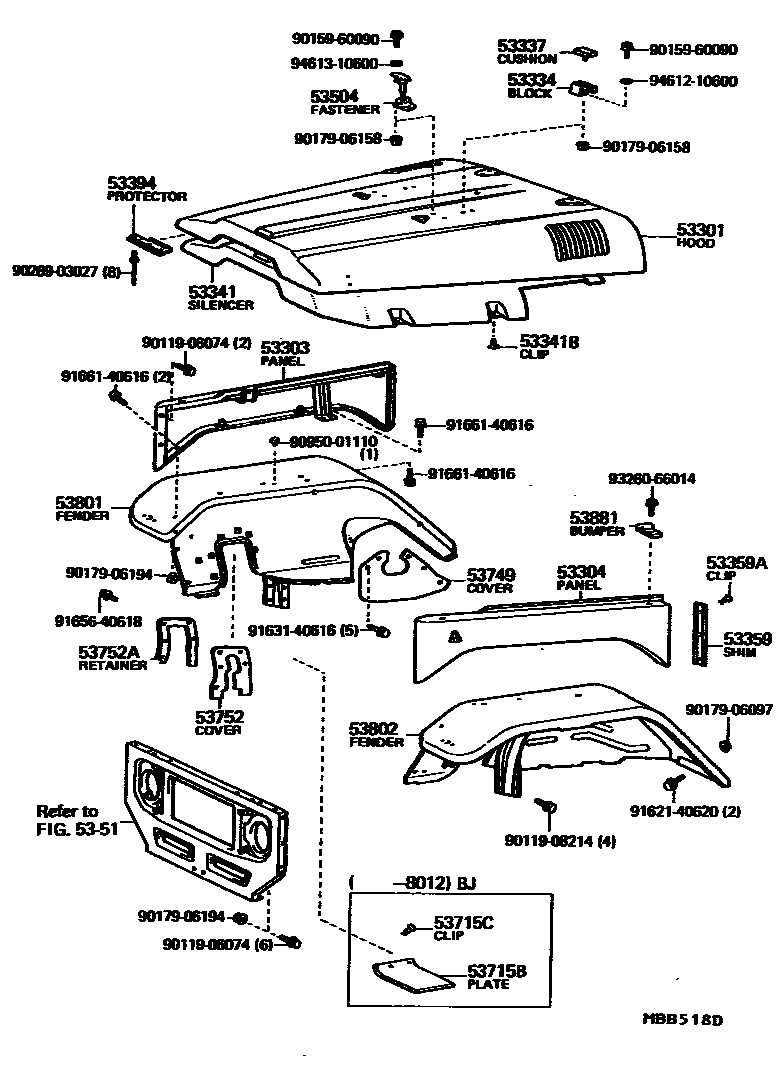

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-90311iFJ40198008-198105

W/O SILENCER

main53301-90801iBJ42,FJ40198008-198105

W/SILENCER

main53301-90808iBJ42,FJ40198110-198301

main53301-90810iFJ40198301-198309

53303PANEL SUB-ASSY, HOOD SIDE, RH

main53303-90801iFJ40198008-198012

main53303-90802iBJ42198008-198012

main53303-90805iFJ40198012-198309

main53303-90806iBJ42198108-198410

main53303-90807iBJ42198012-198108

53304PANEL SUB-ASSY, HOOD SIDE, LH

main53304-90801iFJ40..CND198008-198012

main53304-90802iFJ40..USA198008-198012

main53304-90803iBJ42198008-198012

main53304-90806iFJ40..CND198012-198108

main53304-90807iFJ40..USA198012-198309

main53304-90808iBJ42198012-198108

53334BLOCK, WINDSHIELD REST

main53334-90303×2iBJ42,FJ40198008-198410

53337CUSHION, WINDSHIELD REST BLOCK

main53337-90301×2iBJ42,FJ40198008-198410

53341SILENCER, HOOD, NO.1

main53316-90800iBJ42,FJ40..CND198008-198410

main53316-90801iFJ40..USA198008-198210

53341BINSULATOR, HOOD

main90467-09008×12iBJ42,FJ40198008-198210

53359SHIM, HOOD SIDE PANEL CUSHION

main53359-90301×2iBJ42,FJ40198008-198410

53359ACLAMP OR CLIP, HOOD SIDE PANEL CUSHION SHIM

main90467-04006×6iBJ42,FJ40198110-198410

main90467-04100×6iBJ42,FJ40198008-198110

53394PROTECTOR, HOOD, FRONT

main53393-90800iBJ42,FJ40198110-198410

RH

main53394-90800iBJ42,FJ40198110-198410

LH

53504FASTENER SUB-ASSY, HOOD

main53504-90300×2iBJ42,FJ40198008-198410

5351RADIATOR GRILLE

→ Go to FIG 53-51

53715BPLATE, FENDER APRON SPLASH

main53715-90300iBJ42198008-198012

53715CCLIP(FOR FENDER APRON SPLASH PLATE)

main90467-06004×2iBJ42198008-198012

53749COVER, FENDER APRON STEERING GEAR BOX

main53751-90300iBJ42198008-198410

53752COVER, SHOCK ABSORBER

main53752-90300×2iBJ42198008-198410

53752ARETAINER, SHOCK ABSORBER COVER

main53761-90300iBJ42198008-198410

RH

main53762-90300iBJ42198008-198410

LH

53801FENDER SUB-ASSY, FRONT RH

main53810-90341iFJ40..USA198008-198309

main53810-90344iFJ40..CND198008-198110

main53810-90348iBJ42198008-198110

main53810-90804iBJ42198110-198410

53802FENDER SUB-ASSY, FRONT LH

main53820-90080iFJ40..USA198008-198309

main53820-90083iFJ40..CND198008-198110

main53820-90088iBJ42198008-198310

main53820-90282iFJ40..USA198008-198309

W/ELECTRICAL WINCH

main53820-90286iBJ42198405-198410

main53820-90288iBJ42198008-198310

W/ELECTRICAL WINCH

main53820-90289iFJ40..CND198008-198110

W/ELECTRICAL WINCH

53881BUMPER, FENDER TO HOOD

main53349-90300×2iBJ42,FJ40198008-198410

9011906074

main90119-06074

9011908214

main90119-08214

9015960090

main90159-60090

9017906097

main90179-06097

9017906158

main90179-06158

9017906194

main90179-06194

9026903027

main90269-03027

9095001110

main90950-01110

9162140620

main91621-40620

9163140616

main91631-40616

9165640618

main91656-40618

9166140616

main91661-40616

9326066014

main93260-66014

9461210600

main94612-10600

9461310600

main94613-10600

35 parts on this diagram · 1 diagram in section
