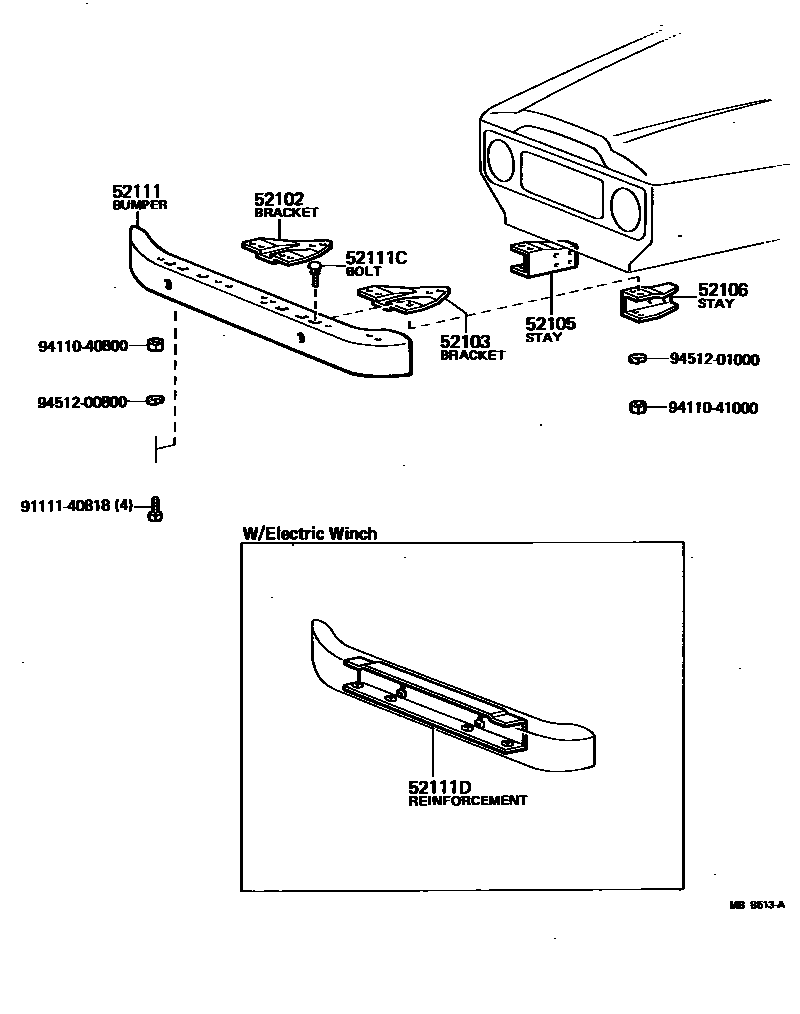

FRONT BUMPER & BUMPER STAY

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52116-60010iBJ42,FJ40198008-198410

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52116-60010iBJ42,FJ40198008-198410

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52141-60011iBJ42,FJ40198008-198410

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52142-60011iBJ42,FJ40198008-198410

52111BUMPER ASSY, FRONT

main52111-60030iBJ42,FJ40198008-198410

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-10004×6iBJ42,FJ40198008-198211

main90112-10016×6iBJ42,FJ40198211-198410

52111DREINFORCEMENT, FRONT BUMPER

main52131-60010iBJ42,FJ40198008-198410

W/ELECTRIC WINCH

9111140818

main91111-40818

9411040800

main94110-40800

9411041000

main94110-41000

9451200800

main94512-00800

9451201000

main94512-01000

12 parts on this diagram · 1 diagram in section
