FRAME

Parts diagram

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

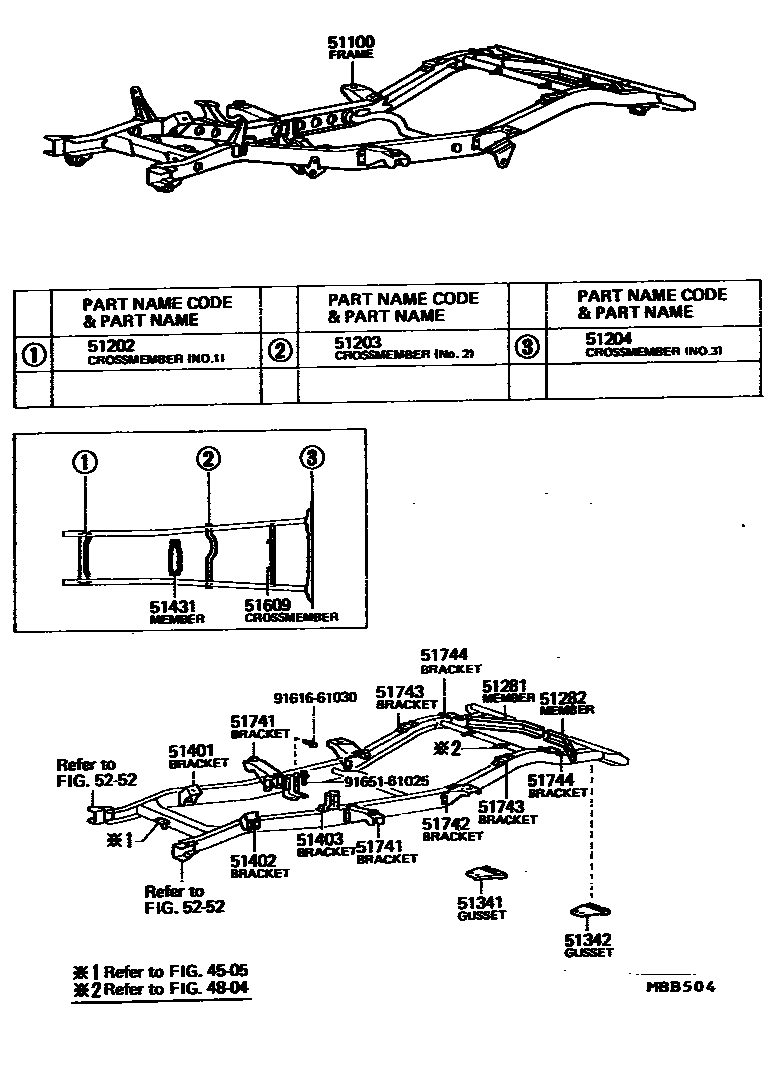

51100FRAME ASSY

main51001-60274i198008-198210

main51001-60275i198210-198410

main51001-60770i198008-198210

main51001-60771i198210-198309

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-60014i198008-198309

main51201-60071i198008-198310

main51201-60072i198310-198410

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-60042i198008-198210

main51202-60043i198210-198410

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51209-60031i198008-198410

51281MEMBER, REAR DIAGONAL, RH

main51281-60023i198008-198410

51282MEMBER, REAR DIAGONAL, LH

main51282-60013i198008-198410

51341GUSSET, FRAME NO.4 CROSSMEMBER, RH

main51308-60012i198008-198410

51342GUSSET, FRAME NO.4 CROSSMEMBER, LH

main51309-60012i198008-198410

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-60012i198008-198309

main51421-60030i198008-198410

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51422-60010i198008-198309

main51422-60030i198008-198410

51403BRACKET SUB-ASSY, ENGINE REAR MOUNTING

main51433-60020i198008-198210

RH

main51433-60021i198210-198410

RH

main51434-60030i198008-198210

LH

main51434-60031i198210-198410

LH

51431MEMBER, ENGINE REAR MOUNTING

main51403-60010i198008-198210

main51403-60011i198210-198410

51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT

main51203-60015i198008-198410

main51203-60064i198008-198309

51741BRACKET, REAR BODY MOUNTING, NO.1

main51701-60020×2i198008-198410

51742BRACKET, BODY MOUNTING, NO.2

main51751-60020i198008-198410

RH

main51752-60020i198008-198410

LH

51743BRACKET, BODY MOUNTING, NO.3

main51741-60011×2i198008-198410

51744BRACKET, BODY MOUNTING, NO.4

main51741-60011×2i198008-198410

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

9161661030

main91616-61030

9165161025

main91651-61025

22 parts on this diagram · 1 diagram in section
