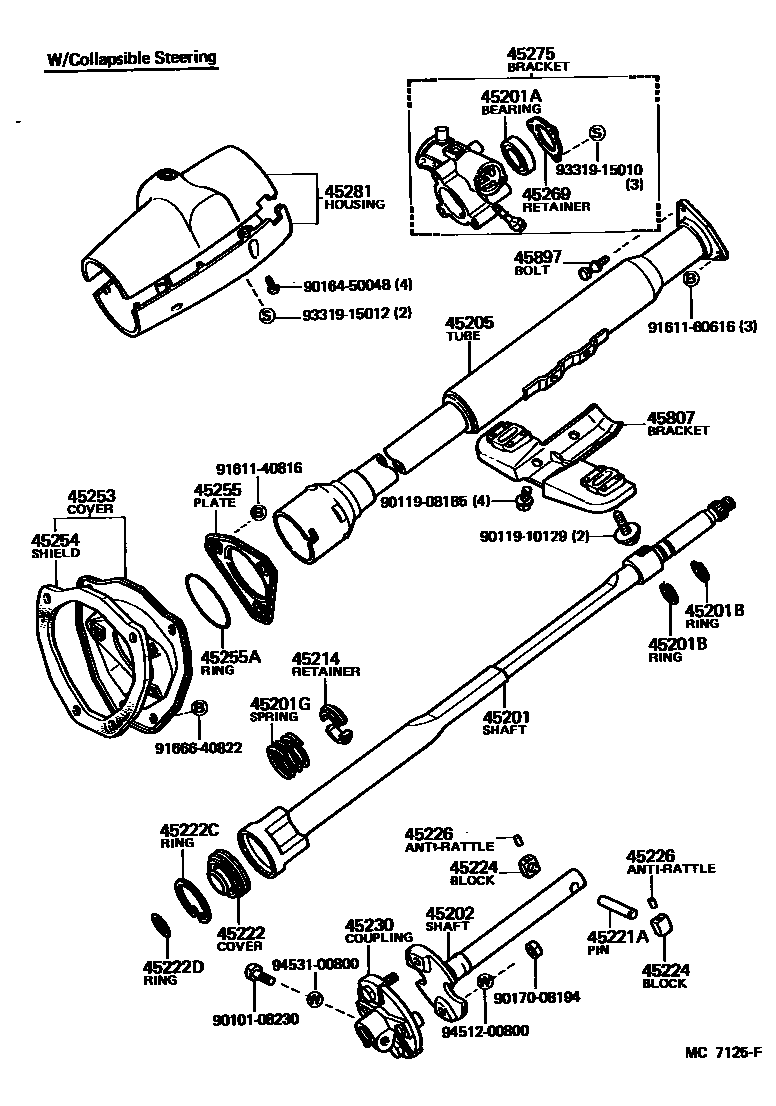

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0005 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-60050iBJ42,FJ40198008-198410

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBJ42,FJ40198008-198410

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBJ42,FJ40198008-198410

T=1.20,FLAT TYPE

main90520-17269iBJ42,FJ40198008-198410

T=1.20,CURVED TYPE

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-29388iBJ42,FJ40198008-198410

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45220-60060iBJ42,FJ40198008-198410

main45220-60070iFJ40198008-198210

W/POWER STEERING

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-60040iBJ42,FJ40198008-198410

45214RETAINER, MAIN SHAFT SPRING

main45214-30030×2iBJ42,FJ40198008-198410

45221APIN(FOR STEERING INTERMEDIATE SHAFT)

main90250-10059iBJ42,FJ40198008-198410

45222COVER, STEERING GEAR DUST

main45222-30030iBJ42,FJ40198008-198410

45222CRING, HOLE SNAP(FOR DUST COVER)

main90521-52003iBJ42,FJ40198008-198410

45222DRING, O(FOR DUST COVER)

main90301-23054iBJ42,FJ40198008-198410

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45224-30040×2iBJ42,FJ40198008-198410

15.97-16.00,L=15.97-16.00

main45225-30040iBJ42,FJ40198008-198410

16.00-16.03,L=16.00-16.03

45226ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING)

main45226-30020×2iBJ42,FJ40198008-198410

45230COUPLING ASSY, FLEXIBLE

main45230-36010iBJ42,FJ40198008-198410

45253COVER, STEERING COLUMN HOLE

main45025-60040iBJ42,FJ40198008-198410

45254SHIELD, STEERING COLUMN HOLE

main45254-60040iBJ42,FJ40198008-198410

45255PLATE, STEERING COLUMN HOLE COVER

main45255-60020iBJ42,FJ40198008-198410

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-60122iBJ42,FJ40198008-198410

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBJ42,FJ40198008-198410

45275BRACKET, STEERING COLUMN, UPPER

main45280-60042iBJ42198008-198110

W/STEERING LOCK

main45280-60052iFJ40198008-198209

W/O STEERING LOCK

main45280-60053iFJ40198209-198309

W/O STEERING LOCK

main45280-60062iFJ40198008-198110

W/STEERING LOCK

main45280-60063iBJ42,FJ40198209-198410

W/STEERING LOCK

45281HOUSING, STEERING COLUMN

main45286-60907iFJ40198008-198309

W/O STEERING LOCK

main45286-60909iBJ42,FJ40198008-198410

W/STEERING LOCK

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45807-60050iBJ42,FJ40198008-198410

45897BOLT, STEERING LOCK SET

main45897-12030iBJ42,FJ40198210-198410

9010108230

main90101-08230

9011908185

main90119-08185

9011910129

main90119-10129

9016450048

main90164-50048

9017008194

main90170-08194

9161140816

main91611-40816

9161160616

main91611-60616

9166640822

main91666-40822

9331915010

main93319-15010

9331915012

main93319-15012

9451200800

main94512-00800

9453100800

main94531-00800

35 parts on this diagram · 4 diagrams in section
