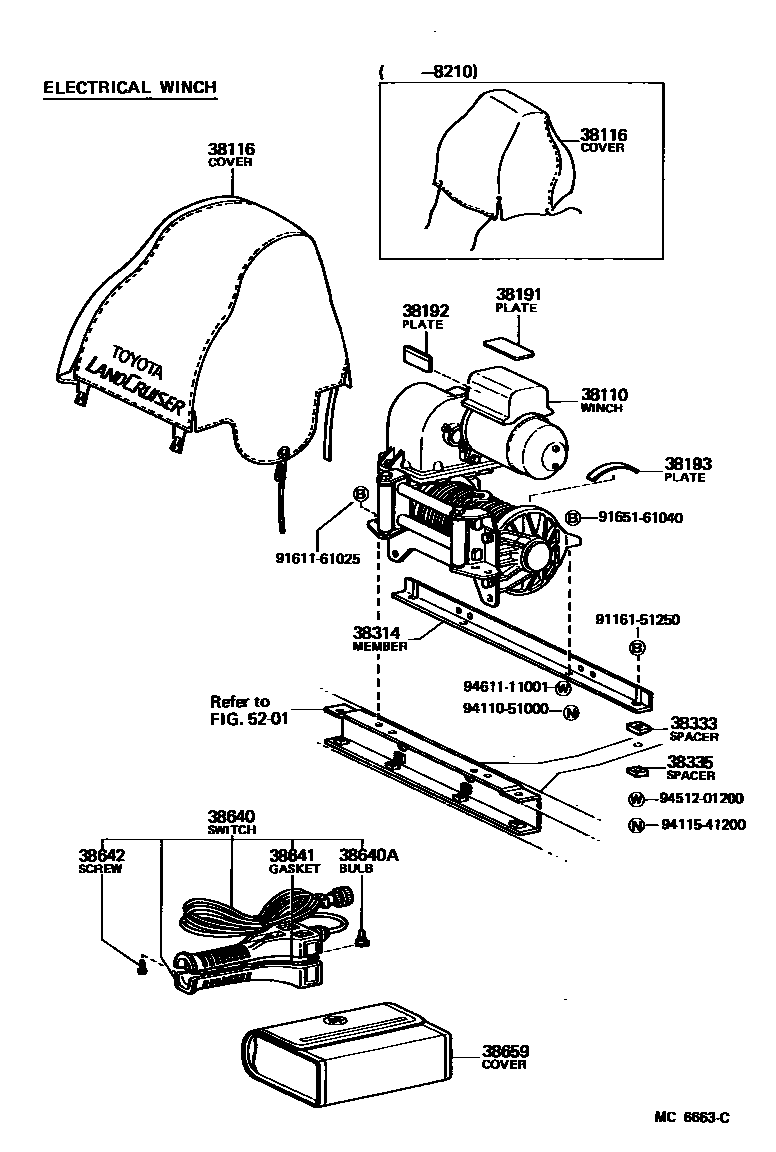

WINCH

0001 1 0002 1 0003 1 0004 1

38110WINCH ASSY

main38110-60040iBJ42198008-198302

main38110-60041iBJ42198302-198410

main38110-60050iFJ40198008-198302

main38110-60051iFJ40198302-198309

38116COVER, WINCH

main38116-60010iBJ42,FJ40198008-198210

main38286-60010iBJ42,FJ40198210-198410

38191PLATE, WINCH CAUTION, NO.1

main38191-60010iFJ40198008-198309

sub38191-60050

main38191-60030iBJ42198008-198410

sub38191-60070

38192PLATE, WINCH CAUTION, NO.2

main38192-60010iBJ42,FJ40198008-198410

sub38192-60040

38193PLATE, WINCH CAUTION, NO.3

main38193-60010iBJ42,FJ40198008-198410

sub38193-60040

38314MEMBER, REAR BASE

main38314-60010iBJ42,FJ40198008-198410

38333SPACER, MEMBER, NO.1

main38333-60010×2iBJ42,FJ40198008-198410

38335SPACER, MEMBER, NO.2

main38334-60010×2iBJ42,FJ40198008-198410

38640SWITCH ASSY, WINCH CONTROL

main38640-60010iFJ40198008-198309

sub38640-35010

main38640-60020iBJ42198008-198410

38640ABULB (FOR WINCH CONTROL SWITCH)

main90981-11024×2iFJ40198008-198309

12V 1.4W,1.4W 12V

main90981-16022×2iBJ42198008-198410

24V 1.4W,1.4W 24V

38641GASKET (FOR WINCH CONTROL SWITCH)

main38641-60010iBJ42,FJ40198008-198410

38642SCREW (FOR WINCH CONTROL SWITCH)

main38642-60010×8iBJ42,FJ40198008-198410

sub93510-13012

38659COVER, WINCH CONTROL SWITCH

main38659-60010iBJ42,FJ40198008-198410

5201

9116151250

main91161-51250

9161161025

main91611-61025

9165161040

main91651-61040

9411051000

main94110-51000

9411541200

main94115-41200

9451201200

main94512-01200

9461111001

main94611-11001

21 parts on this diagram · 4 diagrams in section
