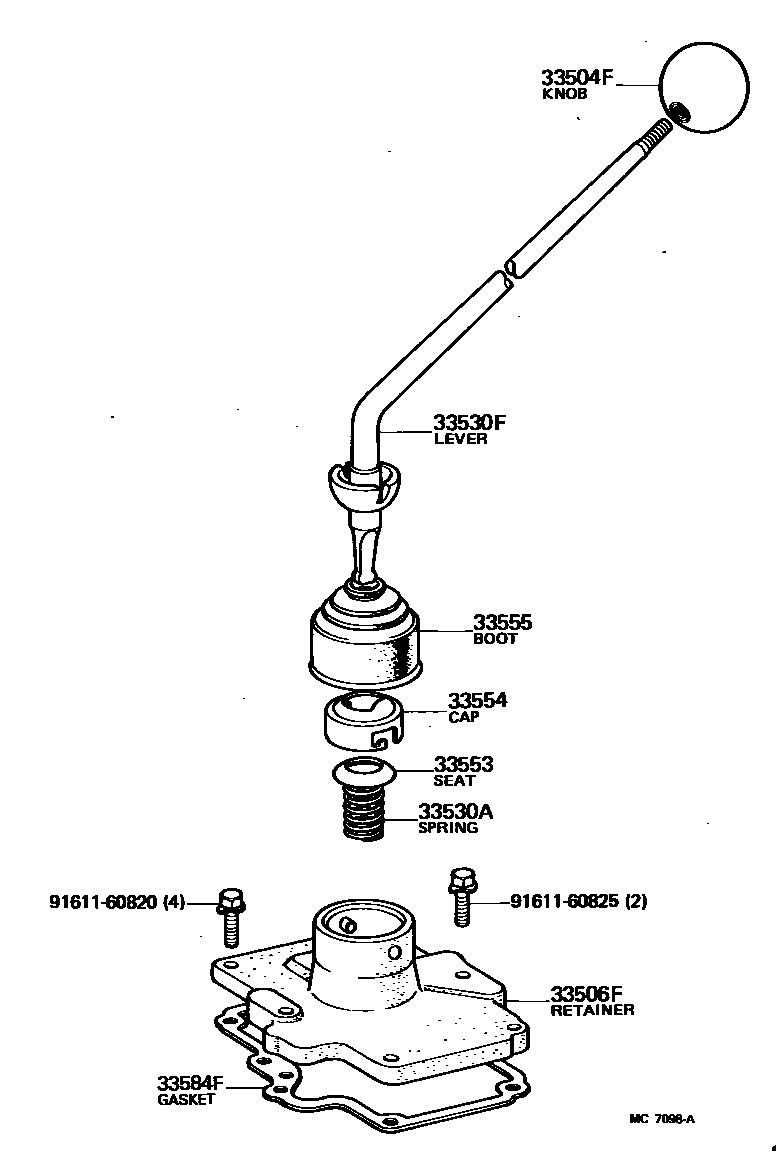

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22111iBJ42198210-198410

main33504-60030iBJ42,FJ40..4F198008-198309

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-60010iBJ42,FJ40..4F198008-198309

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90501-32791iBJ42,FJ40..4F198008-198309

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33541-60081iBJ42,FJ40..4F198008-198309

main33541-60160iBJ42198210-198410

33553SEAT, SHIFT LEVER SPRING

main33553-60010iBJ42,FJ40..4F198008-198309

33554CAP, SHIFT LEVER

main33554-60010iBJ42,FJ40..4F198008-198309

main33554-60021iBJ42198210-198410

33555BOOT, SHIFT LEVER

main33555-55011iBJ42,FJ40198008-198410

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33272-36011iBJ42,FJ40..4F198008-198309

9161160820

main91611-60820

9161160825

main91611-60825

10 parts on this diagram · 2 diagrams in section
