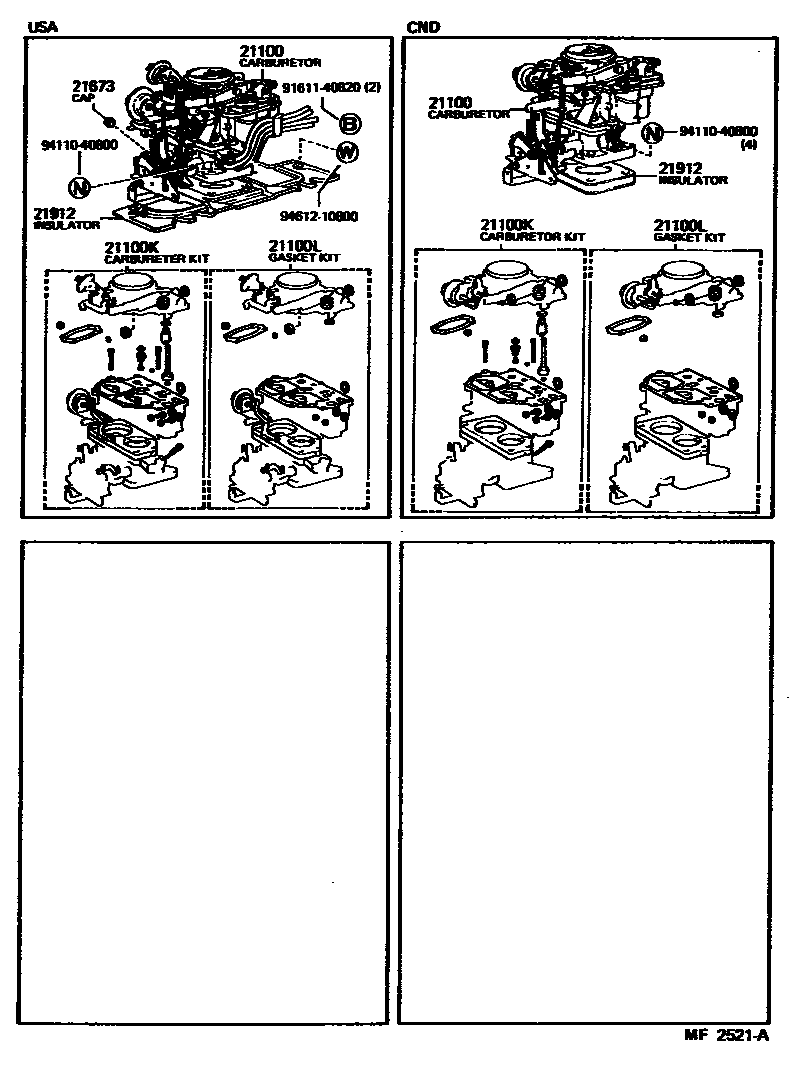

CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-61102i2F..FJ40..CND198008-198110

main21100-61140i2F..FJ40..USA198008-198110

main21100-61141i2F..FJ40198110-198309

21100KCARBURETOR KIT

main04211-61140i2F..FJ40..CND198008-198110

main04211-61170i2F..FJ40..USA198008-198309

21100LGASKET KIT, CARBURETOR

main04212-61030i2F..FJ40198008-198309

21673CAP, IDLE LIMIT

main21673-38020i2F..FJ40..USA198008-198305

21912INSULATOR, CARBURETOR HEAT

main21912-61020i2F..FJ40..CND198008-198110

main21912-61032i2F..FJ40..USA198008-198309

9161140820

main91611-40820

9411040800

main94110-40800

9461210800

main94612-10800

8 parts on this diagram · 1 diagram in section
