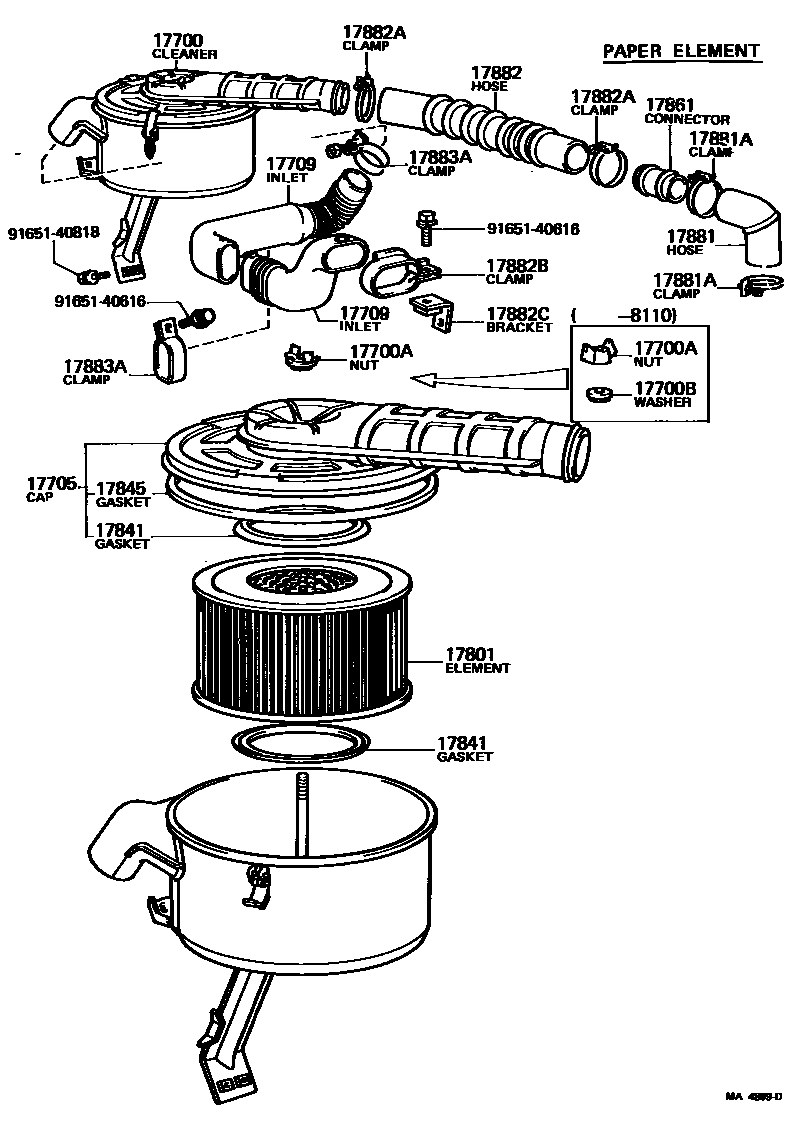

AIR CLEANER
17700CLEANER ASSY, AIR
PAPER ELEMENT
PAPER ELEMENT
PAPER ELEMENT
CYCLONE
CYCLONE
CYCLONE
17700ANUT, WING(FOR AIR CLEANER)
17700BWASHER, SEAL(FOR AIR CLEANER)
17705CAP SUB-ASSY, AIR CLEANER
PAPER ELEMENT
PAPER ELEMENT
17709INLET SUB-ASSY, AIR CLEANER
BODY SIDE
AIR CLEANER SIDE
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
17861CONNECTOR, INTAKE AIR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
INLET SIDE
CONNECTOR SIDE
AIR CLEANER SIDE
AIR CLEANER SIDE
17882BCLAMP(FOR COOL AIR INTAKE)
17882CBRACKET(FOR COOL AIR INTAKE)
17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)
INLET SIDE
AIR CLEANER SIDE
9165140616
main91651-40616
9165140818
main91651-40818
18 parts on this diagram · 3 diagrams in section
