Toyota LAND CRUISER — WATER PUMP

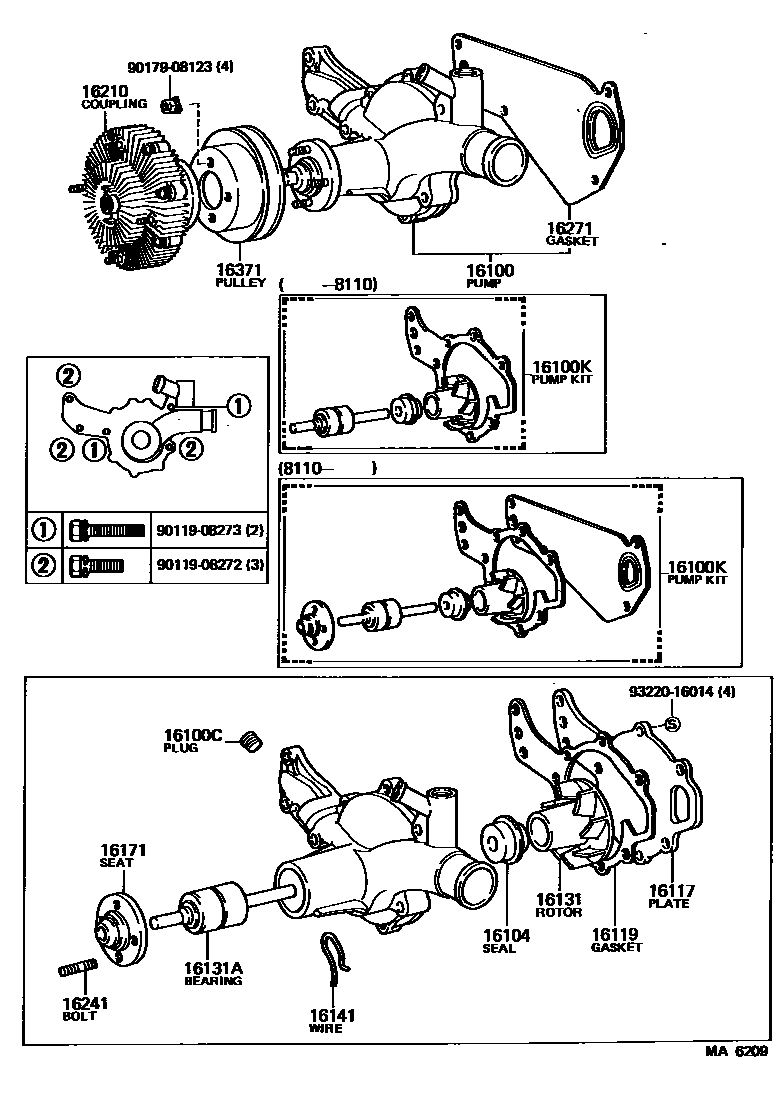

Parts diagram

16100PUMP ASSY, ENGINE WATER

16100CPLUG, W/HEAD TAPER SCREW

16100KPUMP KIT, WATER

16104SEAL SET, WATER PUMP

16117PLATE, WATER PUMP

16119GASKET, WATER PUMP BODY

16131ROTOR, WATER PUMP

16131ABEARING, WATER PUMP

16141WIRE, WATER PUMP BEARING RETAINING

16171SEAT, WATER PUMP PULLEY

16210COUPLING ASSY, FLUID

16241BOLT, STUD(FOR WATER PUMP COUPLING)

16271GASKET, WATER PUMP

16371PULLEY, FAN

9011908272

9011908273

9017908123

9322016014

18 parts on this diagram · 2 diagrams in section

WATER PUMP for Toyota LAND CRUISER

This section contains 26 genuine Toyota parts for the WATER PUMP system of the Toyota LAND CRUISER. Key components include: PUMP ASSY, ENGINE WATER, PLUG, W/HEAD TAPER SCREW, PUMP KIT, WATER, ROTOR KIT, WATER PUMP, SEAL SET, WATER PUMP.
