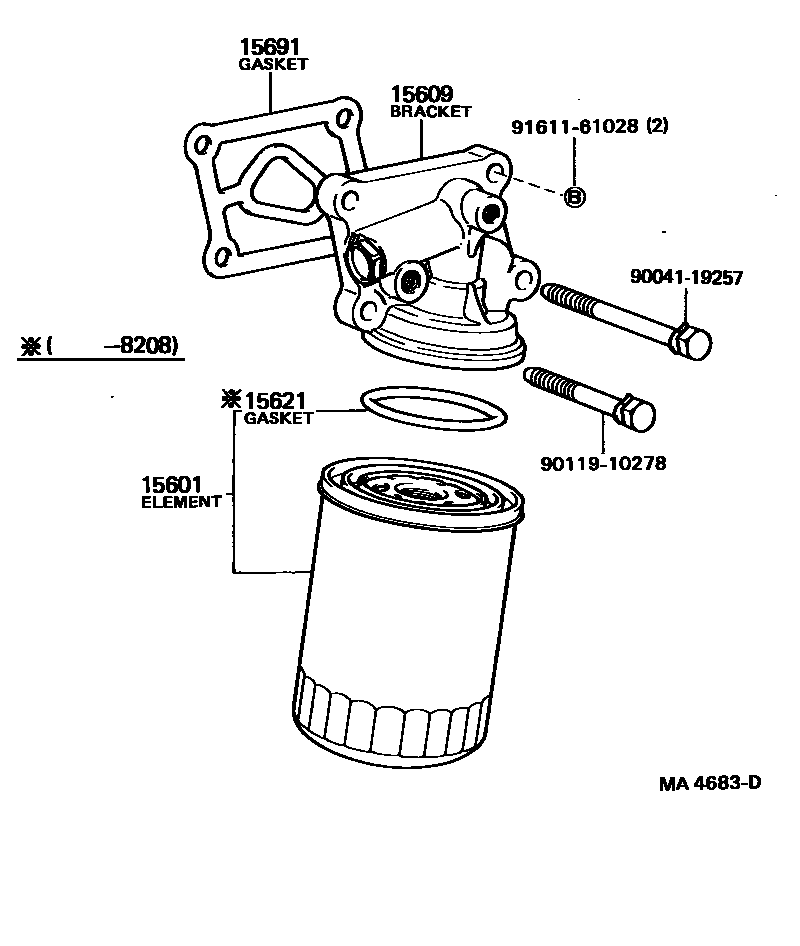

OIL FILTER

0001 1 0002 1

15601FILTER SUB-ASSY, OIL

main15600-41010i2F..FJ40; 3B..BJ42198008-198410

15609BRACKET SUB-ASSY, OIL FILTER

main15609-56040i3B..BJ42198008-198410

main15609-61010i2F..FJ40..USA198008-198210

W/OIL COOLER

main15609-61011i2F..FJ40198210-198309

W/OIL COOLER

main15609-61020i2F..FJ40..CND198008-198110

15621GASKET, OIL FILTER BODY

main15621-41010i2F..FJ40; 3B..BJ42198008-198208

15691GASKET, OIL FILTER

main15691-56030i3B..BJ42198008-198410

main15691-60010i2F..FJ40198008-198309

9004119257

main90041-19257

9011910278

main90119-10278

9161161028

main91611-61028

7 parts on this diagram · 2 diagrams in section
