Toyota LAND CRUISER — HEATING & AIR CONDITIONING - VACUUM PIPING

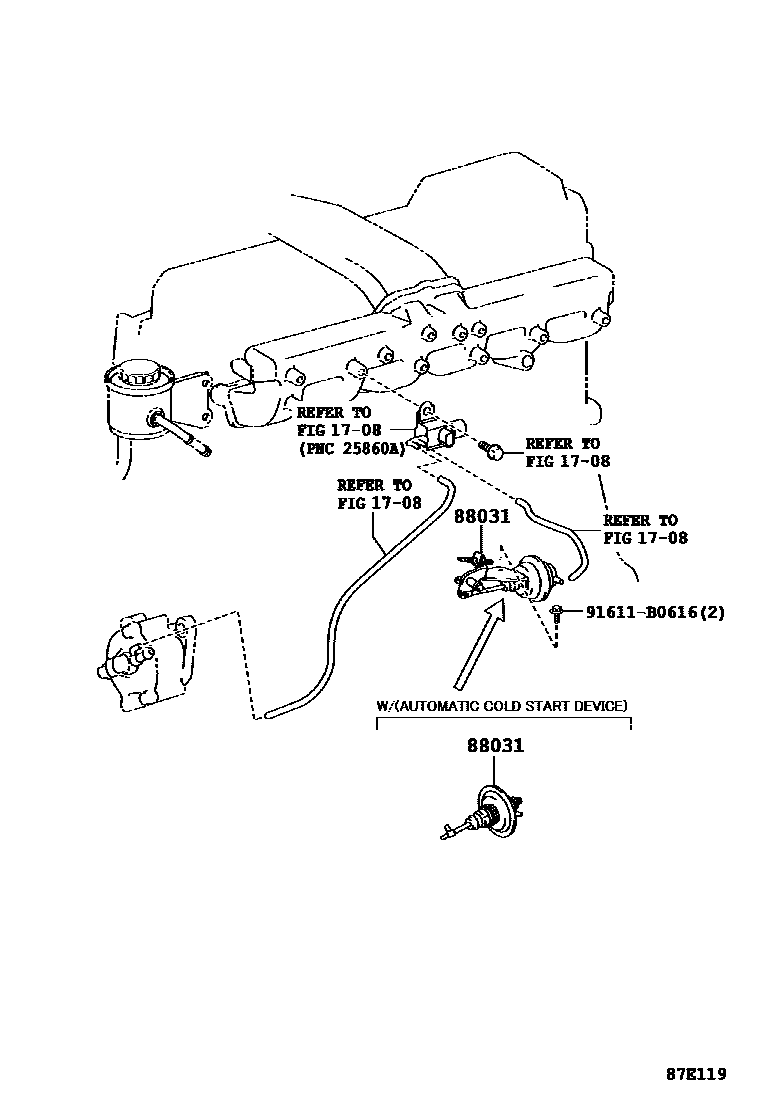

Parts diagram
1708VACUUM PIPING
→ Go to FIG 17-08
88031ACTUATOR SET, IDLE-UP
88031-30060
88031-30070
88031-12150
91611B0616
91611-B0616

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - VACUUM PIPING for Toyota LAND CRUISER

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - VACUUM PIPING system of the Toyota LAND CRUISER. Key components include: VACUUM PIPING, ACTUATOR SET, IDLE-UP.
