HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1BOOST VENTILATOR 0002 1BOOST VENTILATOR 0006 1BOOST VENTILATOR 0008 1FRONT HEATER 0009 1FRONT HEATER 0013 1FRONT HEATER 0014 1FRONT HEATER 0018 1FRONT HEATER 0019 1REAR HEATER 0021 1REAR HEATER 0022 1REAR HEATER

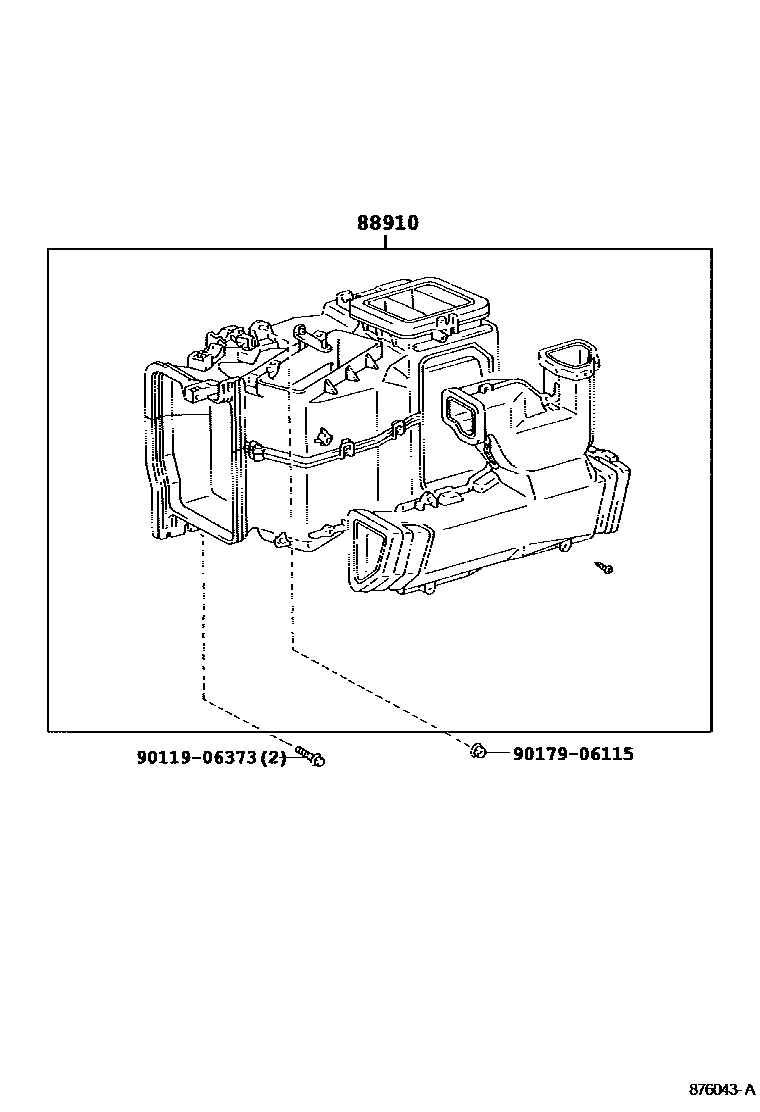

88910VENTILATOR ASSY, BOOST

main88910-60051iFZJ71,78,79,HZJ7#..RHD200701-200907

main88910-60060iFZJ79,HZJ79..STD..GCC; FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD200701-200907

HEATER-BOOST VENTILATOR

main88910-60120iGRJ71,78,79,HZJ7#..RHD200907-201204

main88910-60130iGRJ79..LX;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD..HT200907-201204

main88910-60140iGRJ71,78,79,HZJ7#..RHD201204-201208

main88910-60150iHZJ76,78,79..GCC201608-201612

main88910-60160iGRJ71..GCC;GRJ76,78,79,HZJ7#..LHD202309

main88910-60170iHZJ71,79..RHD..(PIC,SOT)202309

BANGLADESH SPEC&BATTERY-80D26R X 2

9011906373

main90119-06373

9017906115

main90179-06115

3 parts on this diagram · 11 diagrams in section
