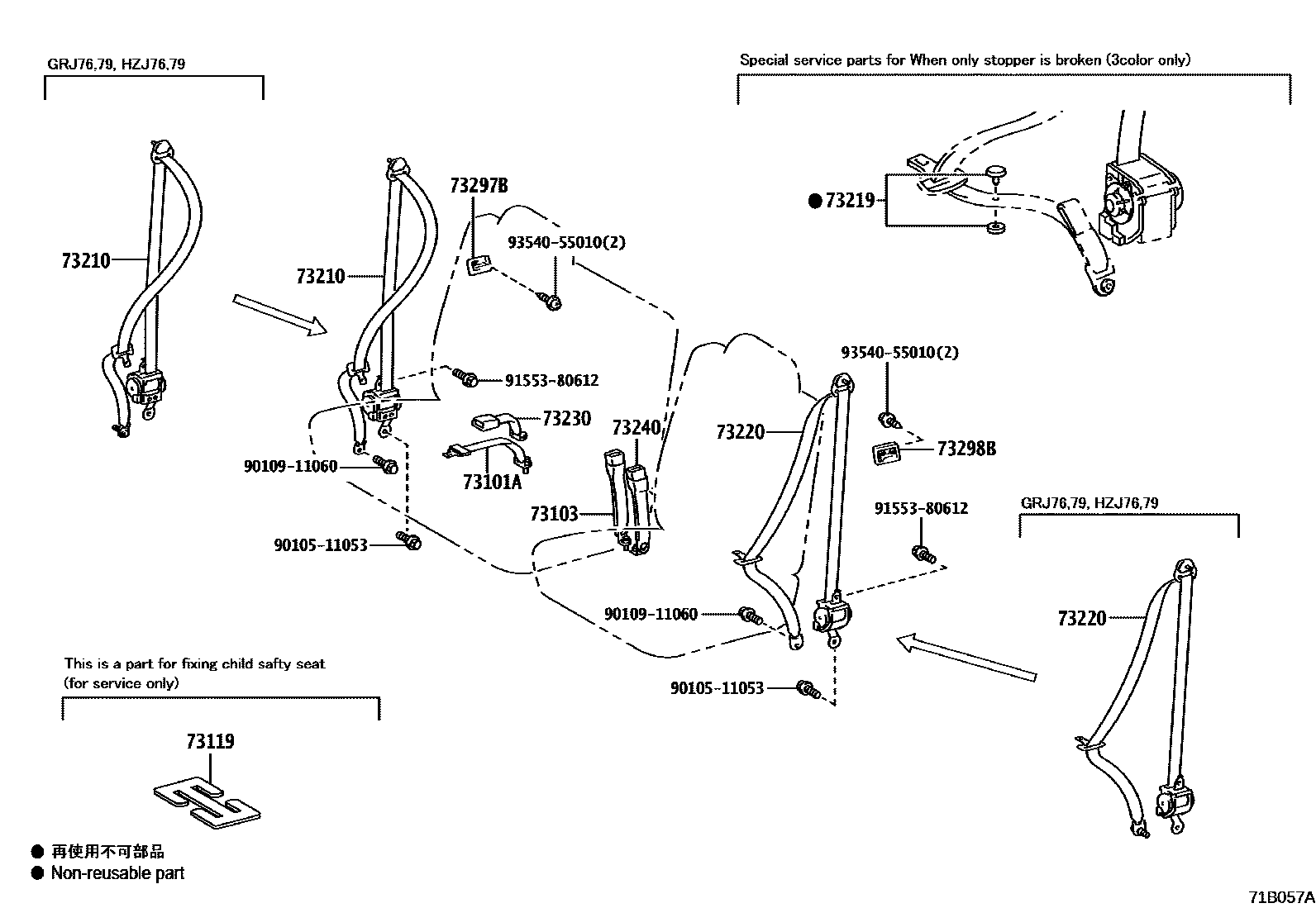

SEAT BELT
73101ABELT SUB-ASSY, FR SEAT LAP, OUTER
main73101-60012-C0iGRJ71,HZJ71..SOT; GRJ76,VDJ76..GCC; GRJ79,VDJ79..DCB..GCC; GRJ79..DCB..GEN;GRJ71,76,HZJ71,76,79..(DCB,HT)..STD201706-202309
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4#
73103BELT SUB-ASSY, FRONT SEAT LAP, INNER RH
main73103-60013-C0iGRJ71..SOT; GRJ76,VDJ76..GCC; GRJ79,VDJ79..DCB..GCC; GRJ79..LHD..DCB..GEN;GRJ71,76,HZJ71,76,79..LHD..(DCB,HT)..STD201706-202309
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4#
73119PLATE, SEAT BELT WEBBING CLIP
73210BELT ASSY, FRONT SEAT OUTER, RH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
OAK,TRIM4#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLUISH GRAY,TRIM1#
FRONT SEAT-BENCH SEAT,GRAY,TRIM1#; GRAY,TRIM1#
OAK,TRIM4#
BLACK,TRIM1#; BLACK,TRIM1#,4#; FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
BLACK,TRIM1#,4#
OAK,TRIM4#
BLACK,TRIM1#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
BLACK,TRIM1#,4#
OAK,TRIM4#
main73210-60663-C0iGDJ79..PIC..5F..LX;GDJ79,GRJ79,HZJ79..PIC..STD..(GCC,GEN); GRJ79..PIC..LX;GDJ79..PIC..6FC..LX202309
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLACK,TRIM1#; BLACK,TRIM1#,2#
73219STOPPER, TONGUE PLATE
BLACK,BLACK
GRAY,GRAY
BEIGE,BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
BLACK,TRIM1#,4#
OAK,TRIM4#
BLACK,TRIM1#,4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
OAK,TRIM4#
BLACK,TRIM1#,4#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
BLACK,TRIM1#,4#
OAK,TRIM4#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLUISH GRAY,TRIM1#
FRONT SEAT-BENCH SEAT,GRAY,TRIM1#; GRAY,TRIM1#
OAK,TRIM4#
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
BLACK,TRIM1#,2#
73230BELT ASSY, FRONT SEAT INNER, RH
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
OAK,TRIM4#
BLACK,TRIM1#,4#
main73230-60154-C0iGDJ76,79,L76,L79..(DCB,HT)..6FC..LX..ARL; GDJ79,HZJ79..LHD..DCB..5F..GEN; GDJ79..LHD..DCB..6FC..GEN; GDJL76,79..5F..LX;GDJ79,L76,L79..(DCB,HT)..STD..ARL; GRJ79..LHD..DCB..GEN202309
BLACK,TRIM1#; BLACK,TRIM1#,2#; EGYPT SPEC&FRONT SEAT-SEPARATE SEAT&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#; EGYPT SPEC&FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#; EGYPT SPEC&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#; GHANA SPEC&FRONT SEAT-SEPARATE SEAT&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#; GHANA SPEC&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#
main73230-60182-B1iFZJ71,76,VDJ76..LX;FZJ71,HZJ71,76..RHD; HZJ76..LHD;FZJ71,76,HZJ71..LHD..STD..GEN200701-200907
BLUISH GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1#
main73230-60182-B2supersedes 73230-60211-B2iGRJ71,76..LX;HZJ71,76..RHD; GRJ71..LX; GRJ76..GEN;HZJ76..LHD; HZJ71..LHD;GRJ71..STD..GEN200907-201208
FRONT SEAT-BENCH SEAT,GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT,GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT,GRAY,TRIM1#; GRAY,TRIM1#
main73230-60182-E2supersedes 73230-60211-E2iGRJ71,76..LX;HZJ71,76..RHD; GRJ76..GEN;HZJ76..LHD200701-201208
FRONT SEAT-SEPARATE SEAT,OAK,TRIM4#; OAK,TRIM4#
main73230-60183-C0supersedes 73230-60211-C0iGRJ71,HZJ71..HT..GEN;GRJ79,HZJ76,79..RHD..(DCB,HT); GRJ71..LX; GRJ76,HZJ76,79..LHD..(DCB,HT)..GEN; GRJ76..GCC; GRJ79,HZJ76,79..(DCB,HT)..GCC; HZJ71..SOT201208-201608
BLACK,TRIM1#; BLACK,TRIM1#,4#; FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4#; FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#
main73230-60184-C0supersedes 73230-60211-C0iGRJ71,HZJ71..LHD..HT..STD..GEN; GRJ71,VDJ76..LX..GEN;GRJ79,HZJ71,76,79..RHD..(DCB,HT); GRJ71..GCC; GRJ79..DCB..GCC;GRJ76,HZJ76,79,VDJ79..LHD..(DCB,HT)..STD; HZJ71..SOT; VDJ79..RHD..DCB;GRJ76,VDJ76,L76,L79..(DCB,HT)..(ARL,GCC)201706-202309
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT,BLACK,TRIM1#,2#,4#; FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT,BLACK,TRIM1#,4#; FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#
BLUISH GRAY,TRIM1#; FRONT SEAT-BENCH SEAT,BLUISH GRAY,TRIM1#
main73230-60211-C0supersedes 73230-60183-C0iGDJ76,79,GRJ76,79..(DCB,HT)..5F..LX..GCC; GDJ79,GRJ71,76,79,HZJ71,79..LHD..(DCB,HT)..5F..STD; GRJ71..SOT; HZJ76..LHD202309
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,2#,4#
FRONT SEAT-BENCH SEAT,OAK,TRIM4#; OAK,TRIM4#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#,4#
OAK,TRIM4#
BLUISH GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1#
FRONT SEAT-SEPARATE SEAT,GRAY,TRIM1#; GRAY,TRIM1#
main73230-60242-C0supersedes 73230-60340-C0iGRJ79,HZJ78,79..RHD..(HT,PIC); GRJ79,VDJ79..PIC..GCC; VDJ79..LX..GEN201608-202309
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#
FRONT SEAT-SEPARATE SEAT,OAK,TRIM4#; OAK,TRIM4#
GRAY,TRIM1#
BLACK,TRIM1#,4#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
main73230-60340-C0iGRJ79,VDJ79..LX..GCC;HZJ79..LHD..PIC..GEN..CBU; HZJ79..IV;GRJ79..LHD..PIC..STD201608-202309
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
OAK,TRIM4#
BLACK,TRIM1#; BLACK,TRIM1#,2#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#,4#
OAK,TRIM4#
FRONT SEAT-BENCH SEAT,GRAY,TRIM1#; GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
OAK,TRIM4#
BLACK,TRIM1#,4#
main73230-60154-C0iGDJ71,76,79,GRJ71,76,79..(DCB,HT)..LX..GCC; GDJ79,GRJ71,79..(DCB,HT)..STD..GCC; GDJ79,HZJ79..LHD..DCB..5F..GEN; GDJ79..LHD..DCB..6FC..GEN; GRJ79..LHD..DCB..GEN202309
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; EGYPT SPEC&FRONT SEAT-SEPARATE SEAT&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#; EGYPT SPEC&FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#; EGYPT SPEC&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#; GHANA SPEC&FRONT SEAT-SEPARATE SEAT&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#; GHANA SPEC&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#
main73230-60182-B1iFZJ71,VDJ76..LX;FZJ76,HZJ76..LHD..GEN; HZJ76..RHD;FZJ71,HZJ71..HT..STD200701-200907
BLUISH GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1#
main73230-60182-B2iGRJ71,HZJ71..HT..STD; GRJ71,VDJ76..LX;GRJ76,HZJ76..LHD..GEN; GRJ71..LX; HZJ76..RHD200907-201208
FRONT SEAT-BENCH SEAT,GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT,GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT,GRAY,TRIM1#; GRAY,TRIM1#
FRONT SEAT-SEPARATE SEAT,OAK,TRIM4#; OAK,TRIM4#
main73230-60183-C0iGRJ71..SOT; GRJ79,HZJ76,79..RHD..(DCB,HT); HZJ71..RHD..HT; VDJ76,79..(DCB,HT)..GEN;GRJ71,76,79,HZJ71,76,79..LHD..(DCB,HT)..GEN201608-201705
BLACK,TRIM1#; BLACK,TRIM1#,4#; FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT,BLACK,TRIM1#,4#; FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#
main73230-60184-C0iGRJ71..SOT; GRJ79..RHD..DCB; HZJ76,79..RHD..(DCB,HT); VDJ76..GEN;GRJ71,76,79,HZJ71,76,79..LHD..(DCB,HT)..GEN; VDJ79..STD..GEN201706-202309
BLACK,TRIM1#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,2#,4#; FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
main73230-60211-C0supersedes 73230-60184-C0iGDJ76..RHD..5F; GDJ79,GRJ79,HZJ71,76,79..RHD..(DCB,HT)..5F..CBU; HZJ71..SOT202309
BLACK,TRIM1#; BLACK,TRIM1#,4#; FRONT SEAT-BENCH SEAT,BLACK,TRIM1#,4#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#,4#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#,4#
OAK,TRIM4#
BLUISH GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#
GRAY,TRIM1#; SOUTH AFRICA SPEC,GRAY,TRIM1#
main73240-60242-C0supersedes 73230-60340-C0iGRJ79..RHD..PIC; HZJ78..RHD; HZJ79..IV;GRJ78,VDJ78,L78..ARL,GEN;GRJ79,HZJ78..LHD..(HT,PIC)..GEN; HZJ79..RHD..PIC; VDJ79..LX..GEN;HZJ79..LHD..PIC..GEN..CBU201608-202309
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,2#,4#; FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#; SOUTH AFRICA SPEC&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT,BLACK,TRIM1#,4#
OAK,TRIM4#; SOUTH AFRICA SPEC,OAK,TRIM4#
BLUISH GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT,BLUISH GRAY,TRIM1#
FRONT SEAT-SEPARATE SEAT,GRAY,TRIM1#; GRAY,TRIM1#
main73240-60281-C0iGDJ79,HZJ79..LHD..PIC..5F..GEN..CBU; GDJ79..LHD..PIC..6FC..GEN; GDJ79..PIC..5F..LX;GDJ78,79,GRJ78,79..(HT,PIC)..STD..GCC; GRJ79..LHD..PIC..GEN..CBU; GRJ79..PIC..LX;GDJ79..PIC..6FC..LX202309
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; EGYPT SPEC&FRONT SEAT-SEPARATE SEAT&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#; EGYPT SPEC&FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,4#; EGYPT SPEC&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#; GHANA SPEC&FRONT SEAT-SEPARATE SEAT&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#; GHANA SPEC&SEAT BELT WARNING-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,4#
FRONT SEAT-SEPARATE SEAT,OAK,TRIM4#; OAK,TRIM4#
BLACK,TRIM1#; BLACK,TRIM1#,2#
73297BCOVER, QUARTER TRIM BELT HOLE, RH
SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#,2#
MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
73298COVER, QUARTER TRIM BELT HOLE, NO.2 RH
REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 &2POINT TYPE X 1,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
MD.OAK,TRIM4#; REAR SEAT-TRANSVERSE SEAT&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1,MD.OAK,TRIM4#
REAR SEAT-TRANSVERSE SEAT,SLATE GRAY,TRIM1#; SLATE GRAY,TRIM1#
MD.OAK,TRIM4#; REAR SEAT-TRANSVERSE SEAT,MD.OAK,TRIM4#
REAR SEAT-TRANSVERSE SEAT; REAR SEAT-TRANSVERSE SEAT&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1
73298BCOVER, QUARTER TRIM BELT HOLE, LH
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
9010511053
main90105-11053
9010911060
main90109-11060
9155380612
main91553-80612
9354055010
main93540-55010
15 parts on this diagram · 9 diagrams in section
