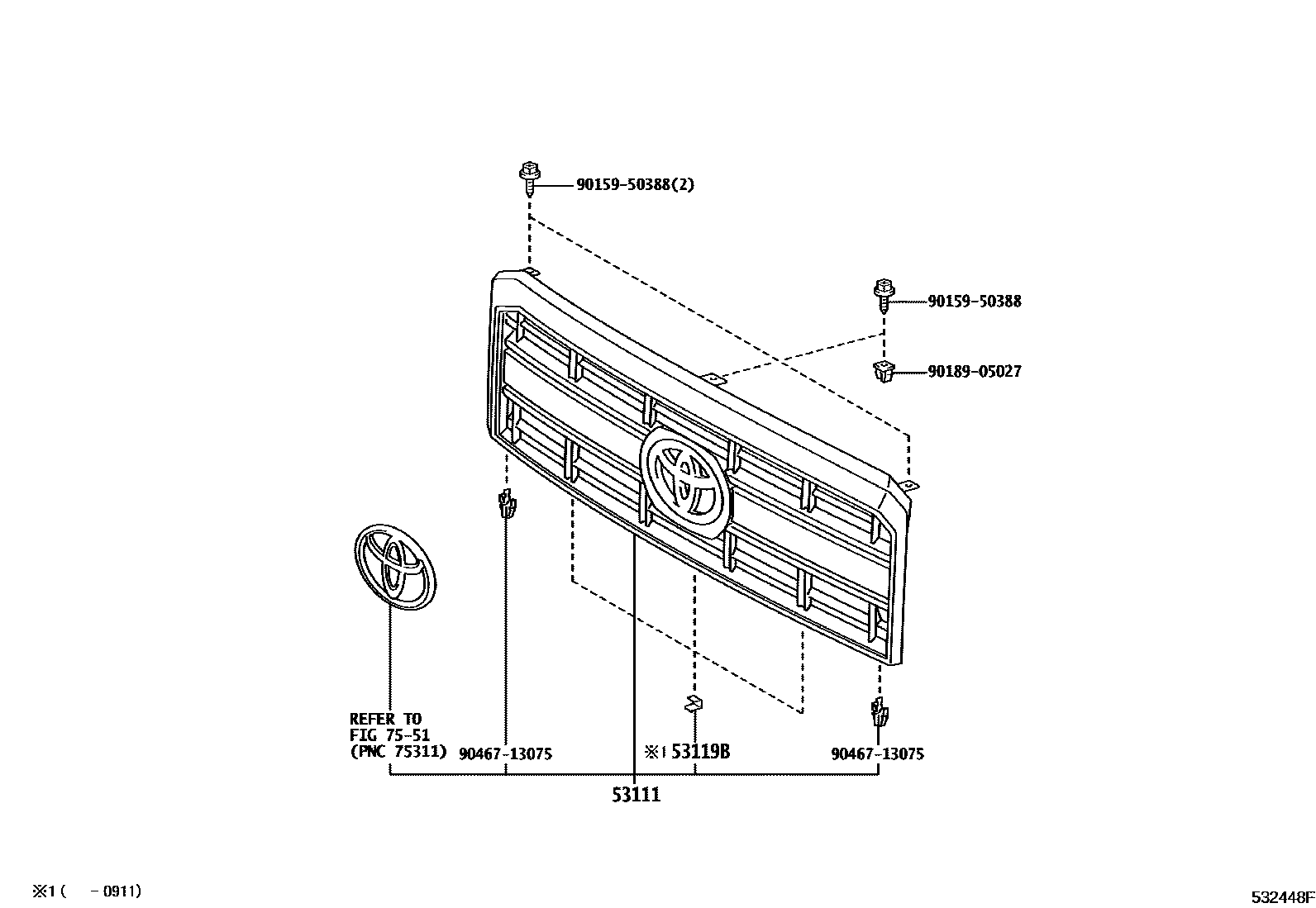

RADIATOR GRILLE
53111GRILLE, RADIATOR
main53101-60450iGRJ7#,HZJ7#,VDJ78,79..STD; GRJ71..GCC;HZJ76,79..RHD;VDJ79..STD..CBU;HZJ79..LHD..PIC..GEN..CBU; HZJ76,79..RHD;VDJ79..STD..CBU;GRJ71,79..(DCB,HT)..GCC;HZJ79..LHD..PIC..GEN..CBU; HZJ76..GCC; HZJ78,79..GEN;GRJ7#,HZJ71,76,VDJ78,79..STD..(GCC,GEN); VDJ76..GEN201608-202209
70TH PACKAGE(BLACK BUMPER)&RADIATOR GRILLE-70TH PACKAGE; 70TH PACKAGE(BODY COLOR BUMPER) & PLATED&RADIATOR GRILLE-70TH PACKAGE; 70TH PACKAGE(BODY COLOR BUMPER)&RADIATOR GRILLE-70TH PACKAGE; RADIATOR GRILLE-MATERIAL COLOR; RADIATOR GRILLE-WITHOUT(FOR DOP)
PLATED; PLATED,FRONT BUMPER-WITH(PLATING GARNISH)
main53101-60461iGRJ71,76,79,HZJ76,VDJ7#..LX; GRJ71,76,79,HZJ76,VDJ79..LX..CBU; VDJ79..DCB..IV201208-201608
PLATED; PLATED,FRONT BUMPER-WITH(PLATING GARNISH); RADIATOR GRILLE-WITHOUT(FOR DOP)
main53101-60N40iGRJ7#,HZJ7#,VDJ78,79,L78,L79..STD..(CBU,IV); GRJ7#,HZJ7#,VDJ78,79..STD..(GCC,GEN); GRJ71..GCC;HZJ76,79..RHD;VDJ79..STD..CBU;HZJ79..LHD..PIC..CBU; HZJ76,79..RHD;VDJ79..STD..CBU;HZJ79..LHD..PIC..CBU;GRJ71,79..(DCB,HT)..GCC; VDJ76,L76..RHD202209-202309
NO PAINT REQ.; NO PAINT REQ.,70TH PACKAGE(BLACK BUMPER)&RADIATOR GRILLE-70TH PACKAGE; NO PAINT REQ.,70TH PACKAGE(BODY COLOR BUMPER) & PLATED&RADIATOR GRILLE-70TH PACKAGE; NO PAINT REQ.,70TH PACKAGE(BODY COLOR BUMPER)&RADIATOR GRILLE-70TH PACKAGE; NO PAINT REQ.,RADIATOR GRILLE-WITHOUT(FOR DOP)
main53101-60N50iGRJ71,76,79,VDJ7#,L7#..LX; HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ78,79..STD..(GCC,GEN); VDJ79,L79..DCB..IV; VDJ79..LX..CBU;GRJ71,76,79,VDJ76..LHD..LX; VDJ79..LX..CBU;GRJ76,79,VDJ76..LX..GCC; VDJ79..LX..CBU;GRJ76,VDJ76..GCC202209-202309
PLATED; PLATED,70TH PACKAGE(BLACK BUMPER)&RADIATOR GRILLE-70TH PACKAGE; PLATED,70TH PACKAGE(BODY COLOR BUMPER) & PLATED&RADIATOR GRILLE-70TH PACKAGE; PLATED,70TH PACKAGE(BODY COLOR BUMPER)&RADIATOR GRILLE-70TH PACKAGE; PLATED,FRONT BUMPER-WITH(PLATING GARNISH); PLATED,RADIATOR GRILLE-PLATING; PLATED,RADIATOR GRILLE-WITHOUT(FOR DOP)
NO PAINT REQ.
main53100-WY050-A0iVDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC)202107-202309
RADIATOR GRILLE-70TH PACKAGE,WHITE,058
main53100-WY050-D0iVDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC)202107-202309
RADIATOR GRILLE-70TH PACKAGE,DK. RED M.M.,3Q3
main53100-WY050-E0iVDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC)202107-202309
RADIATOR GRILLE-70TH PACKAGE,BEIGE,4E9
NO PAINT REQ.,SPECIAL EDITION
53119BPROTECTOR, RADIATOR GRILLE
7551EMBLEM & NAME PLATE
9015950388
main90159-50388
9018905027
main90189-05027
9046713075
main90467-13075
6 parts on this diagram · 4 diagrams in section
