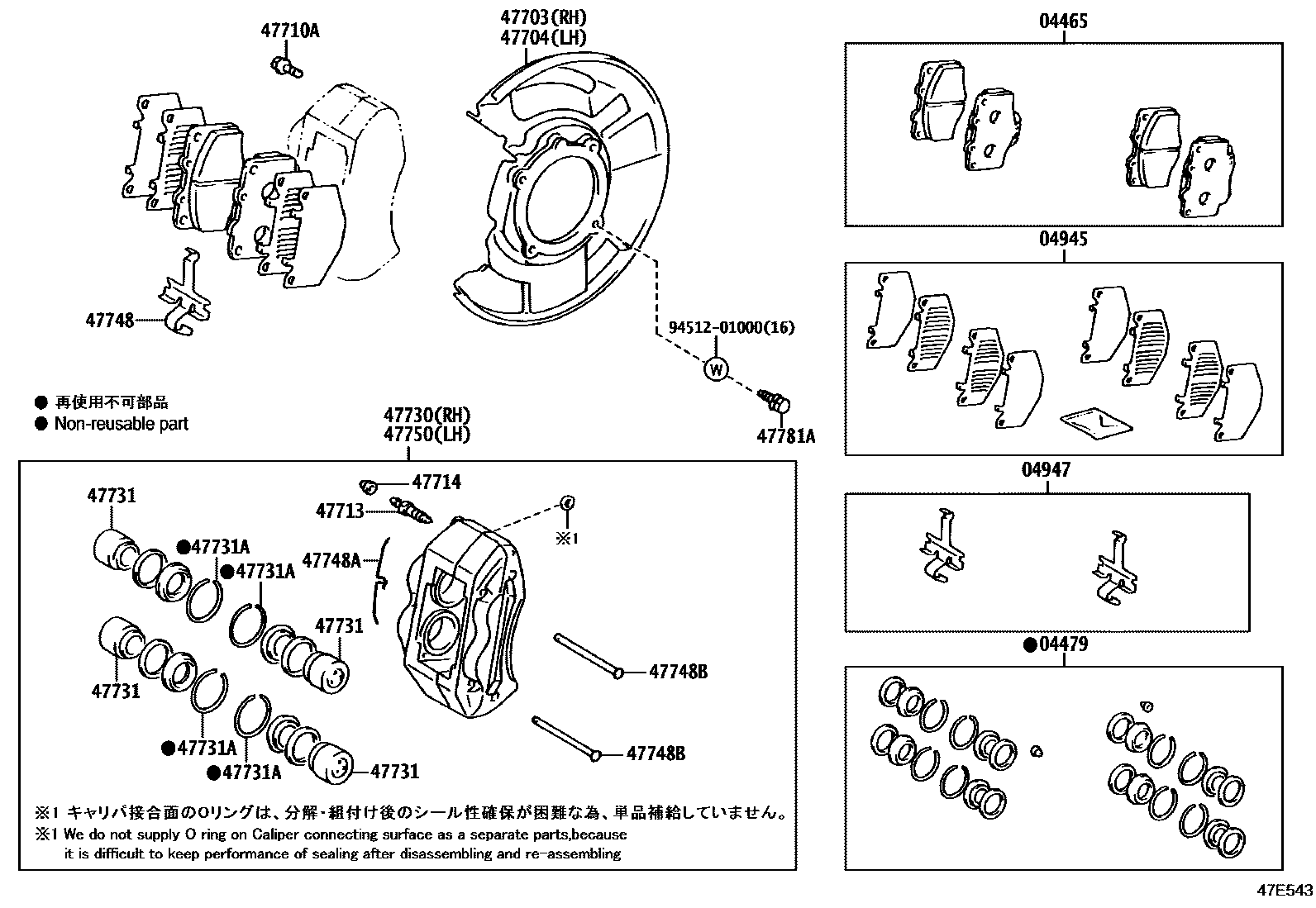

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60250iFZJ7#200701-200907

MARK AISIN PC519

main04465-60340iGRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#200909-201608

MARK AISIN PC519

main04465-60370iVDJ79..RHD;VDJL79..LX202309-202508

MARK ADVICS PC519

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60090iGDJ7#,L7#,GRJ7#,HZJ7#202309

main04479-60070iGRJ71,78..RHD200701-201208

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60030iHZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#,L7#..CBU,IV201608-202309

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60090iGRJ71,78..RHD200701-201208

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-60100iGRJ71,78,VDJ7#..RHD200701-201208

main47781-60150iGRJ79..RHD201408-201608

main47781-60170iGRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..GEN201608-202309

main47781-60180supersedes 47781-60170iVDJ7#..CBU,IV;GRJ79,VDJL7#..RHD201608-202309

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-60100iHZJ7#;GRJ7#..LHD200701-201608

main47782-60150iHZJ7#;GRJ7#..LHD; VDJ7#201208-201608

REAR WHEEL BRAKE-DISC FS14 18V

main47782-60170iGRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..GEN201608-202309

main47782-60180supersedes 47782-60170iVDJ7#..CBU,IV;GRJ79,VDJL7#..RHD201608-202309

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×4iFZJ7#200701-200907

*12-1.25PX35-27

main90105-14198×4iHZJ76,78,79..GCC201608-201612

*14-1.5PX35-30.5

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-60020×2iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

main47547-60030×2iFZJ7#200701-200907

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGRJ71,78..RHD200701-201208

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60120iGRJ71,78..RHD200701-201208

main47730-60370iHZJ76,78,79..GCC201608-201612

47731PISTON, FRONT DISC BRAKE

main47731-14110×8iFZJ7#200701-200907

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-48044×8iFZJ7#200701-200907

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60040×2iFZJ7#200701-200907

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12015×2iFZJ7#200701-200907

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024×4iFZJ7#200701-200907

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60120iFZJ7#200701-200907

main47750-60370iHZJ76,78,79..GCC201608-201612

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10166×16iFZJ7#200701-200907

main90101-10204×16iGRJ7#,HZJ7#,VDJ7#,L7#..CBU,IV202011-202309

9451201000

main94512-01000

18 parts on this diagram · 1 diagram in section
