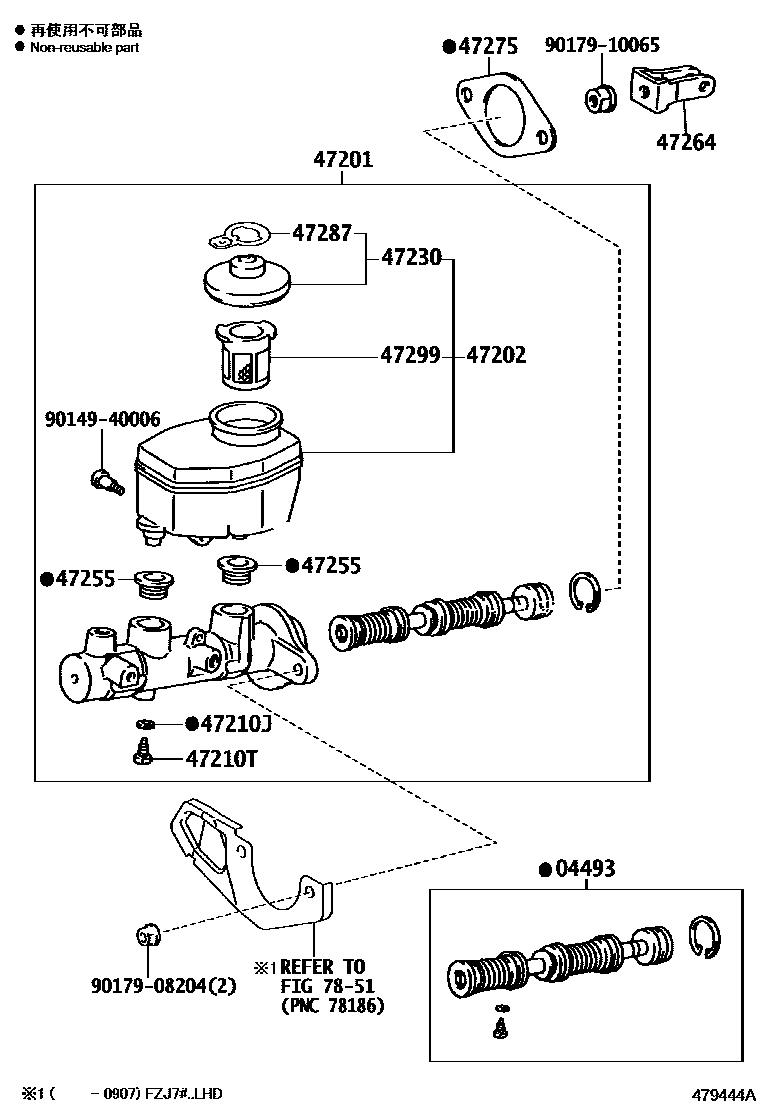

BRAKE MASTER CYLINDER

0001 1 0002 1W/O(ABS),W/O(VSC) 0004 1W(ABS),W(VSC) 0005 1W(ABS)

04493CYLINDER KIT, BRAKE MASTER

main04493-60300iFZJ7#200701-200907

main04493-60380supersedes 04493-60300iGRJ79,VDJ76,79..RHD..GEN201608-202309

main04493-60390iGRJ7#..GCC201701-202309

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60831iFZJ71,78,79..RHD200701-200907

sub47201-60832

main47201-60A00iFZJ7#..LHD200701-200907

main47201-60A50supersedes 47201-60832iGRJ79..RHD202309

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ACTIVE ELECTRIC TYPE)

main47201-60A60iVDJ79..IV;VDJL79..LX202309-202508

main47201-60A70iGRJ7#..5F..GCC;GDJ76,78,79..LHD..5F202309

main47201-60B50iGDJ7#,GRJ7#..LHD..6FC202309

main47201-60A40supersedes 47201-60B00iGRJ7#,HZJ7#..LHD..GEN201709-202309

ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-35010iFZJ71,78,79..RHD200701-200907

sub47220-60080

main47220-60200iFZJ7#..LHD200701-200907

main47220-60250supersedes 47220-60200iGDJ76,78,79,GRJ7#,HZJ7#..LHD..5F202309

main47220-60260supersedes 47220-60080iHZJ7#..RHD201208-201608

REAR WHEEL BRAKE-DISC FS14 18V

main47220-60300iGDJ7#,GRJ7#..LHD..6FC202309

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iGRJ71,78,VDJ7#..RHD200701-201208

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iFZJ7#200701-200907

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iGRJ71,78,79,HZJ7#,VDJ7#..RHD200701-201208

main47230-20140iVDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#..LHD;GRJ79,HZJ79..RHD..DCB200701-201608

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iFZJ7#200701-200907

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-26030iGRJ71,78..RHD200701-201208

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iHZJ76,78,79..GCC201608-201612

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iVDJ7#,L7#..(ARL,GCC)..(CBU,IV)201608-202309

main47287-20010iGRJ7#,HZJ7#,VDJ76,79..GEN201608-201708

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060supersedes 47299-24010iFZJ7#..LHD200701-200907

main47299-24010iFZJ71,78,79..RHD200701-200907

7851

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

15 parts on this diagram · 4 diagrams in section
