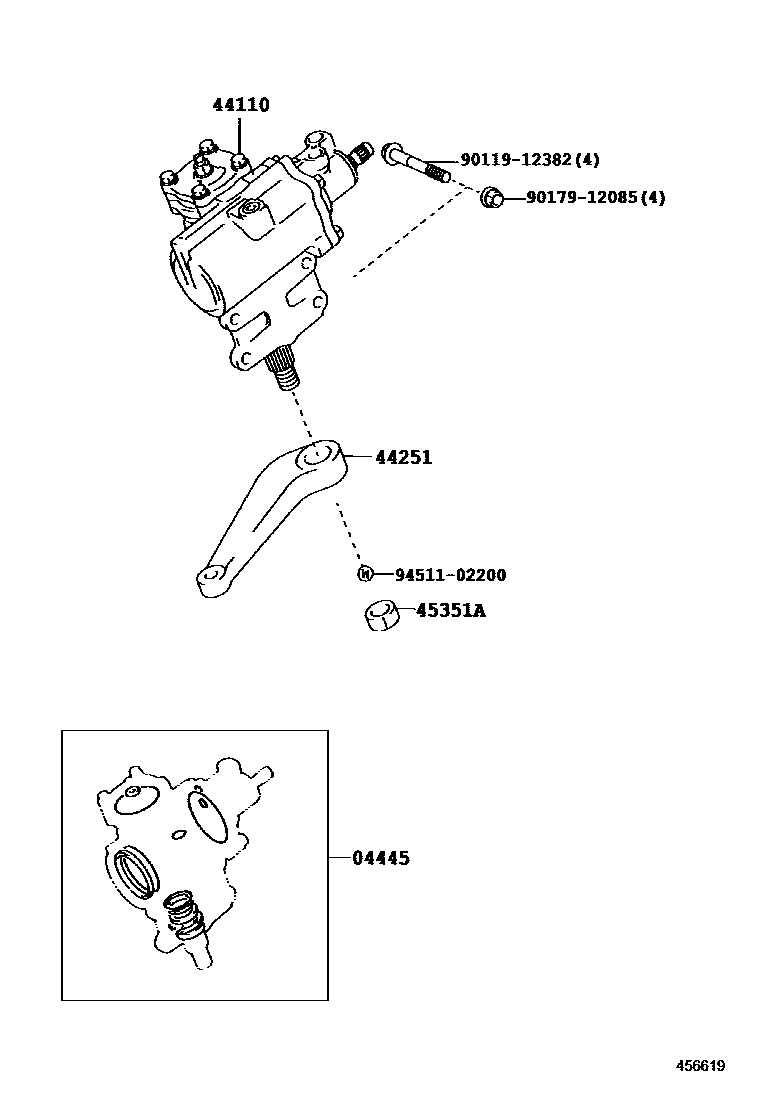

FRONT STEERING GEAR & LINK

0001 1POWER STEERING 0002 1POWER STEERING 0003 1POWER STEERING 0004 1POWER STEERING 0005 1 0006 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-60070iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

44110GEAR ASSY, POWER STEERING

main44110-60393iFZJ71,78,79,HZJ7#,VDJ7#..RHD200701-200706

main44110-60394iFZJ71,78,79,HZJ7#,VDJ7#..RHD200707-200907

main44110-60403iFZJ7#,HZJ7#..LHD200701-200706

main44110-60404iFZJ7#,HZJ7#..LHD200707-200907

main44110-60430iGRJ79,HZJ7#,VDJ7#..RHD200907-201608

main44110-60440iHZJ76,78,79..LHD..GEN;GRJ7#,HZJ71,VDJ7#..LHD201608-202309

main44110-60450iGDJ79,L79..PIC..IV202309

44251ARM, PITMAN

main45411-60370iVDJ79..GEN;VDJ79,L79..DCB..LX..IV202309-202508

main45411-60380iHZJ76,78,79..LHD..GEN;GRJ7#,HZJ71,VDJ7#..LHD201608-202309

main45411-60410iVDJ79,L79..PIC..IV201608-202309

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iFZJ7#200701-200907

9011912382

main90119-12382

9017912085

main90179-12085

9451102200

main94511-02200

7 parts on this diagram · 6 diagrams in section
