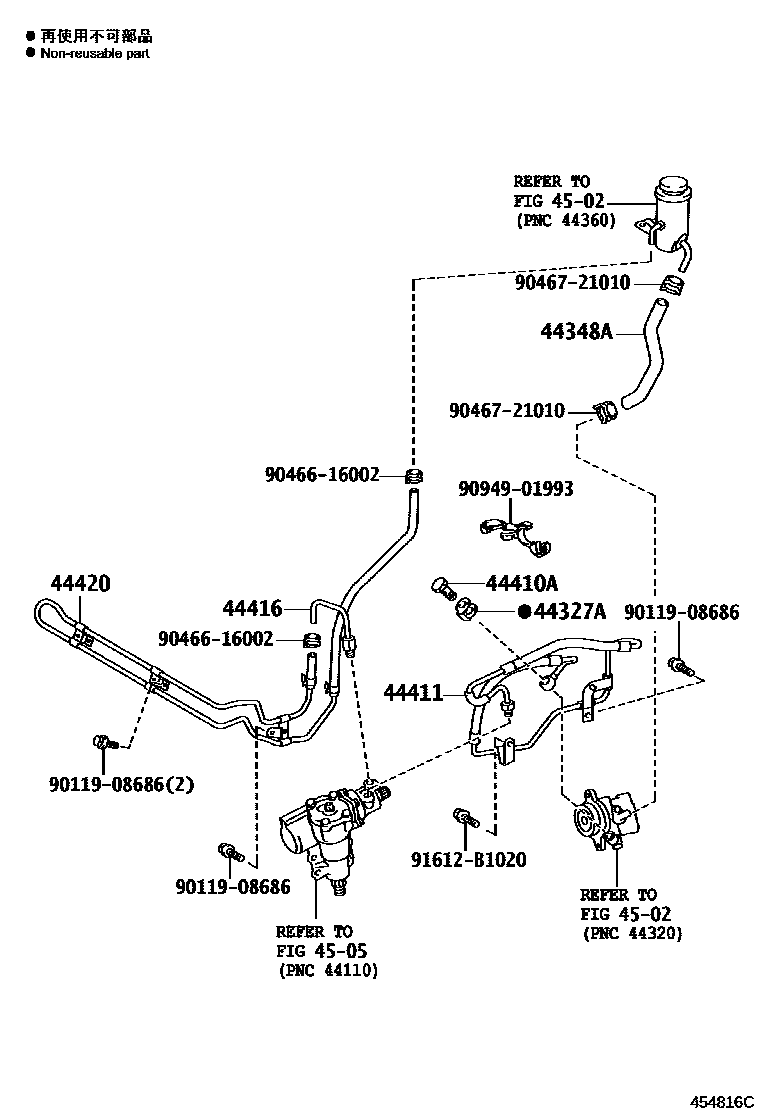

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iHZJ76,78,79..GCC201608-201612

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60360iFZJ7#200701-200907

main44348-60370iHZJ7#202309

main44348-60380iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78202309-202409

main44348-60460iGRJ71,78..RHD200907-201208

main44348-60530iGDJ7#,L7#202309

44410TUBE ASSY, PRESSURE FEED

main44410-60620iHZJ7#..RHD200701-200705

main44410-60621iHZJ7#..RHD201608-202309

main44410-60630iVDJ79..DCB..IV;VDJ7#..RHD..CBU201608-201908

main44410-60631iVDJ79..GEN;VDJ79..DCB..IV;VDJ76,78,L7#..RHD..(DCB,HT)201908-202309

main44410-60640iFZJ71,78,79..RHD200701-200907

main44410-60820iGRJ7#..LHD200907-201608

main44410-60830iGRJ79..RHD200907-201608

main44410-60A90iVDJ79..PIC..IV201608-201908

main44410-60A91iVDJ79..STD..IV;VDJL79..PIC..LX202309-202508

main44410-60B00iVDJ7#..GCC201701-201712

main44410-60B01iVDJ7#..GCC201801-201908

main44410-60B02iVDJ7#..GCC201908-202202

main44410-60B03iVDJ7#..GCC202309-202409

main44410-60C30iGDJ7#..LHD202309

main44410-60C40iGDJ79..RHD..PIC..CBU;GDJ7#,L7#..RHD..(DCB,HT)202309

main44410-60C50iGDJ79,L79..PIC..IV202309

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iHZJ7#200701-201608

44411HOSE, PRESSURE FEED

main44411-60660iFZJ7#..LHD200701-200907

main44411-60670iHZJ7#..LHD200701-201608

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60380iHZJ7#..LHD202309

main44416-60390iFZJ7#..LHD200701-200907

main44416-60400iHZJ7#..RHD202309

main44416-60410iGRJ79,VDJ7#..RHD200701-201608

main44416-60420iFZJ71,78,79..RHD200701-200907

main44416-60460iGRJ7#..LHD201608-202309

main44416-60470iVDJL79..PIC..STD202309-202409

main44416-60510iGDJ79,L79..PIC..IV202309

main44416-60520iGDJ7#..LHD202309

main44416-60530iGDJ79..RHD..PIC..CBU;GDJ7#,L7#..RHD..(DCB,HT)202309

44420COOLER ASSY, OIL

main44420-60480iHZJ7#..LHD..GEN201608-202309

main44420-60490iFZJ7#..LHD200701-200907

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011908686

main90119-08686

9046616002

main90466-16002

9046721010

main90467-21010

9094901993

main90949-01993

91612B1020

main91612-B1020

14 parts on this diagram · 12 diagrams in section
