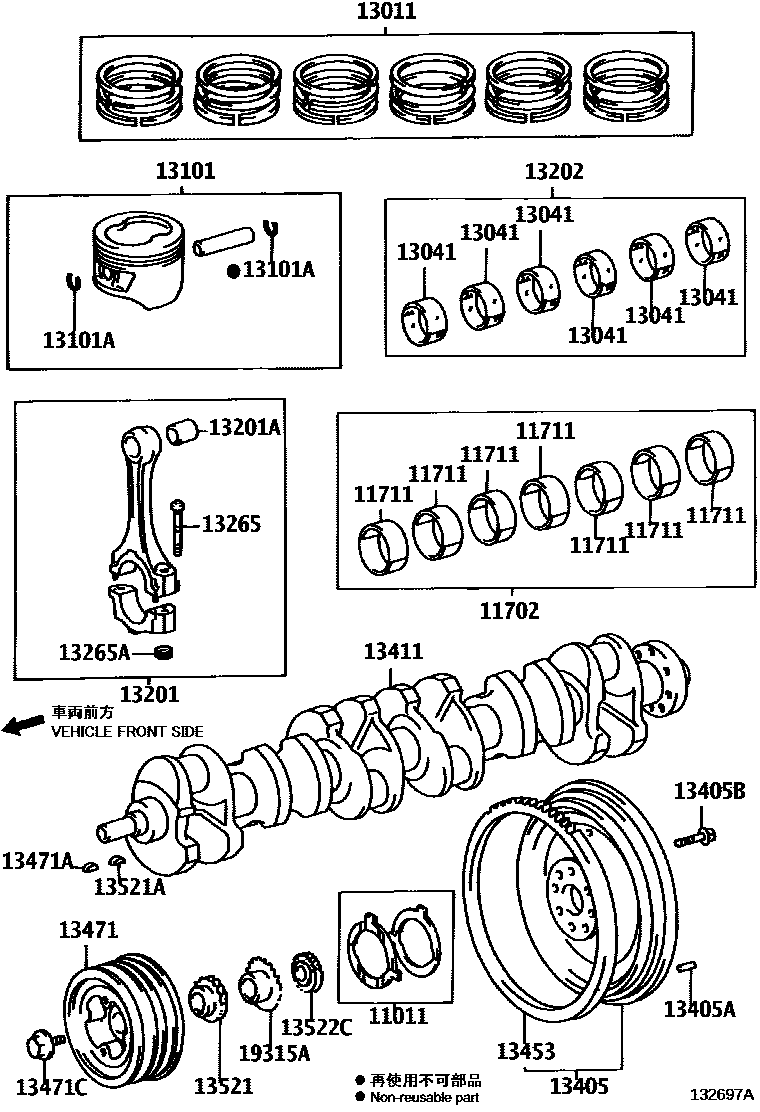

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD
STD
STD
STD
O/S 0.125
O/S 0.125
O/S 0.250
O/S 0.250
11702BEARING SET, CRANKSHAFT
main11701-11030-02×10i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK 2,REFER REPAIR MANUAL; MARK 2,REFER REPAIR MANUAL; UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
main11701-11030-04×10i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK 4,REFER REPAIR MANUAL; MARK 4,REFER REPAIR MANUAL; UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK 4,REFER REPAIR MANUAL
main11701-11030-05×10i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK 5,REFER REPAIR MANUAL; MARK 5,REFER REPAIR MANUAL; UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK 5,REFER REPAIR MANUAL
main11701-11030-06×10i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK 6,REFER REPAIR MANUAL; MARK 6,REFER REPAIR MANUAL; UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK 6,REFER REPAIR MANUAL
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
11711BEARING, CRANKSHAFT
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
MARK6,NO.2,REFER R/M
MARK7,NO.2,REFER R/M
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
MARK5,NO.1,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
MARK5,NO.1,REFER R/M
MARK6,NO.1,REFER R/M
MARK7,NO.1,REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,REFER REPAIR MANUAL
13011RING SET, PISTON
STD
main13011-11221×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
STD; STD,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS); STD,UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
STD
STD
STD
STD
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
main13041-11061-02×8i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK 2,REFER REPAIR MANUAL; MARK 2,REFER REPAIR MANUAL; UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK 2,REFER REPAIR MANUAL
main13041-11061-03×8i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK 3,REFER REPAIR MANUAL; MARK 3,REFER REPAIR MANUAL; UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
main13041-11061-06×8i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK 6,REFER REPAIR MANUAL; MARK 6,REFER REPAIR MANUAL; UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK 6,REFER REPAIR MANUAL
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK2
MARK3
MARK4
MARK5
MARK6
13101PISTON SUB-ASSY, W/PIN
STD,REFER REPAIR MANUAL
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
main13101-11241-01×8i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
STD,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK 1,REFER REPAIR MANUAL; STD,MARK 1,REFER REPAIR MANUAL; STD,UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARK 1
STD,MARK 2
STD,MARK 3
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-32013×16i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS); UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
13201ROD SUB-ASSY, CONNECTING
MARK A,(L),REFER R/M
MARK B,(L),REFER R/M
MARK C,(L),REFER R/M
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
REFER REPAIR MANUAL
REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
main13405-35040×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS); UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5
L=20,OD=10
L=22,OD=10
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-18003×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS); UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-11050×2i1GDFTV..GDJ76,78,79..RHD..5F..CBU; 1GDFTV..GDJ79..5F..STD..GCC; 1GDFTV..GDJL7#..5F202410-202509
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS); UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13522CGEAR, PUMP DRIVE SHAFT
19315PLATE, CRANK ANGLE SENSOR, NO.1
19315AROTOR, CRANK POSITION SENSOR
25 parts on this diagram · 5 diagrams in section
