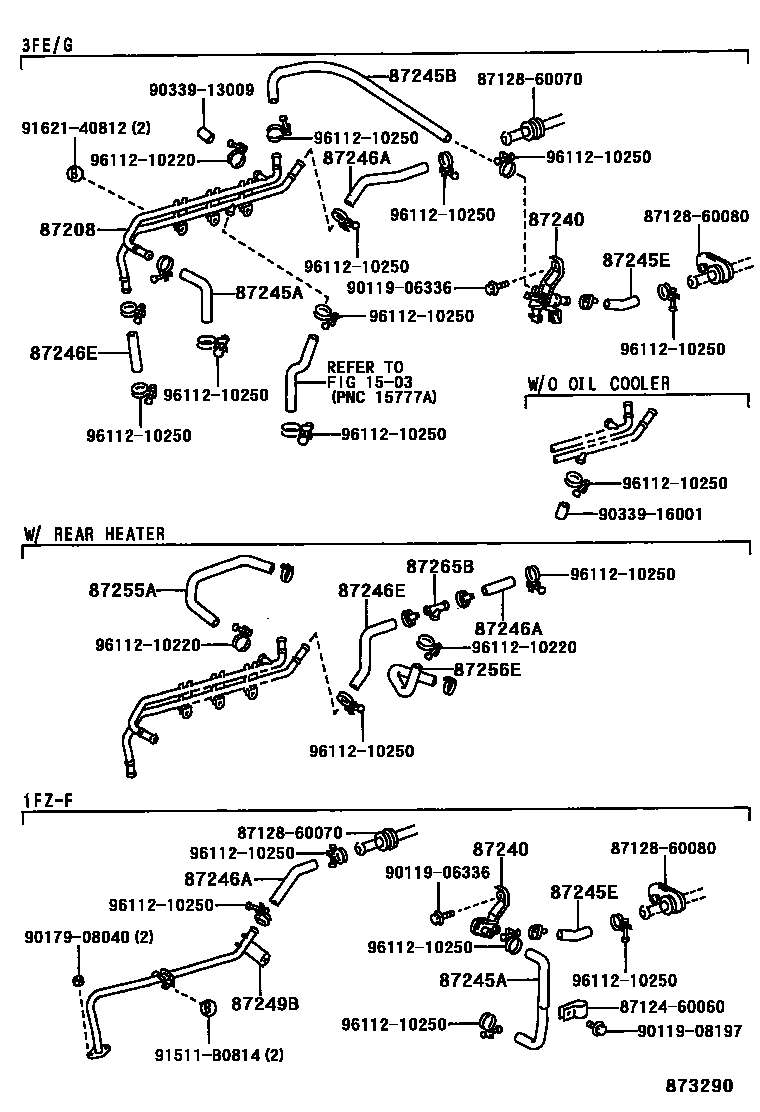

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0004 1FRONT 0005 1FRONT 0006 1FRONT 0007 1FRONT 0008 1FRONT 0009 1FRONT 0010 1FRONT 0011 1FRONT 0012 1REAR 0013 1REAR 0014 1REAR 0015 1REAR 0017 1REAR

1503ENGINE OIL COOLER

→ Go to FIG 15-03

87208PIPE SUB-ASSY, HEATER WATER

main87208-14280iRJ7#..GCC,GEN199001-199202

main87208-22130iRJ70..ARL199001-199108

main87208-35170iRJ7#199202-199305

main87208-60280iLJ72,77..LX;LJ72,79..RHD; LJ79..LHD;LJ72..LHD..HT..STD199210-199305

COLD SPEC; W(RR HEATER)

main87208-60310iFZJ70,75..EFI199305-199404

main87208-60311iFZJ70..EFI199404-199501

main87208-60330iKZJ7#199305-199604

main87208-90K06iFJ7#199001-199208

87240VALVE ASSY, HEATER WATER

main87240-60100iLJ72..SOT;LJ72,77..LX;LJ72,79..RHD; LJ79..LHD;LJ72..LHD..HT..STD199210-199305

COLD SPEC

main87240-60110iFZJ78,79..ARL199908-200605

main87240-60150iFZJ73,75..(PIC,SOT)..GEN..EFI199305-200405

main87240-60190iHDJ7#200108-200701

main87240-90K00iRJ70..SOT199305-199401

main87240-90K01iFZJ75..HT..GEN;FZJ70,73..LHD..HT..GEN199201-199208

W(RR HEATER)

main87240-90K06iHJ75199001-199108

87245AHOSE, HEATER WATER, INLET A

main87245-60150iLJ7#..STD;LJ79..LHD..LX199305-199604

main87245-60160iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

main87245-60190iPZJ75..5F199305-199501

main87245-60230iLJ7#..STD;LJ79..LHD..LX199305-199604

W(RR HEATER)

main87245-60400iFZJ75..SA199305-199911

main87245-60510iFZJ70..EFI199305-199501

main87245-60530iKZJ7#199305-199604

main87245-6A580iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main87245-90K05iHJ75199001-199108

main87245-90K53iFJ7#199001-199208

main87245-90K64iRJ7#..HT..GEN199305-199604

W(RR HEATER)

main87245-90K66iRJ7#..HT199305-199604

main99556-30100iFZJ70,75..GEN..CBU..EFI199709-200106

*H,L=55

87245BHOSE, HEATER WATER, INLET B

main87245-60380iFZJ7#..HT..GEN199201-199305

main87245-60560iKZJ7#199305-199604

main87245-60680iFZJ70,75..GEN..CBU..EFI199709-200106

main87245-6A400iHDJ7#200108-200701

main87245-6A550iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN199908-200701

main87245-6A570iFZJ71,74,78..HT..GEN199908-200701

W(RR HEATER)

main87245-90K61iRJ7#..HT..GEN199001-199305

W(RR HEATER)

main87245-90K66iRJ7#..GCC,GEN199001-199305

main99556-30100iLJ7#..LHD; LJ7#..RHD..STD199305-199604

*H,L=60; *H,L=60,W(RR HEATER)

main99556-30500iFJ7#199001-199208

*H,L=350

87245EHOSE, HEATER WATER, INLET E

main87245-1B060iRJ70..SOT199305-199401

main87245-60220iLJ72..SOT;LJ72,77..LX;LJ72,79..RHD; LJ79..LHD;LJ72..LHD..HT..STD199210-199305

COLD SPEC

main87245-60290iPZJ70,73;PZJ75..4F199305-199401

main87245-60390iFZJ70..RHD;FZJ75..HT..GEN;FZJ70,73..LX..GEN199608-199908

W(RR HEATER)

main87245-60500iFZJ70,75..EFI199208-199305

main87245-6A390iHDJ7#200108-200701

87246AHOSE, HEATER WATER, OUTLET A

main87245-60140iLJ7#199001-199305

main87245-60170iHZJ7#199001-199305

main87245-60171iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199908-200701

main87245-60200iPZJ75..5F199305-199501

main87245-60250iHZJ75,PZJ70,75..HT..GEN199001-199305

W(RR HEATER)

main87245-60251iHZJ71..HT199908-200701

W(RR HEATER)

main87245-60360iFZJ70..RHD;FZJ75..HT..GEN;FZJ70,73..LX..GEN199608-199908

W(RR HEATER)

main87245-60410iFZJ7#199201-199305

main87245-60520iKZJ7#199305-199604

main87245-60540iKZJ7#199305-199307

W(RR HEATER)

main87245-60541iKZJ7#199307-199604

W(RR HEATER)

main87245-6A410iHDJ7#200108-200701

main87245-6A560iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main87245-90K03iRJ7#199001-199305

main87245-90K06iHJ75199001-199108

main87245-90K07iFJ7#199001-199208

main87245-90K15iFJ7#..HT..GEN199001-199208

W(RR HEATER)

main87245-90K21iRJ7#..HT..GEN199305-199604

W(RR HEATER)

87246EHOSE, HEATER WATER, OUTLET E

main87245-60260iPZJ70,75..HT199305-199401

main87245-60270iHZJ70..HT;HZJ75..RHD..HT..GEN; HZJ75..LHD..HT199510-199608

W(RR HEATER)

main87245-60271iHZJ78..GEN200001-200701

main87245-60370iFZJ7#..HT..GEN199608-199908

main87245-60550iKZJ7#199305-199604

main87245-90A19iHJ75199001-199108

main87245-90K22iRJ7#..HT..GEN199305-199604

main87245-90K27iFJ7#..HT..GEN199001-199208

W(RR HEATER)

main87245-90K36iFJ7#199001-199208

main99556-30100iFZJ70,75..EFI199208-199305

*H,L=60

87249BPIPE, HEATER WATER OUTLET, B

main87208-60160iFZJ7#199201-199305

main87208-60161iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN199908-200701

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-60180iHZJ71,78..HT..GEN199908-200701

main87245-60210iPZJ70,75..HT199305-199401

main87245-60450iFZJ7#..HT..GEN199201-199305

main87245-60580iKZJ7#199305-199604

main87245-6A630iFZJ71,74,78..HT..GEN199908-200701

main87245-90K25iFJ7#..HT..GEN199001-199208

main99556-20080iLJ72,77..LX;LJ72,79..RHD; LJ79..LHD;LJ72..LHD..HT..STD199210-199305

*H,L=80; *H,L=80,COLD SPEC

main99556-20100iRJ7#..HT..GEN199305-199604

*H,L=55

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-60240iLJ7#..HT..GEN199001-199210

main87245-60280iHZJ7#..HT..GEN199305-199805

main87245-60281iHZJ78..GEN200001-200701

main87245-60440iFZJ7#..HT..GEN199201-199305

main87245-60570iKZJ7#199305-199604

main87245-6A590iFZJ71,74,78..HT..GEN199908-200701

main87245-90K24iRJ7#..HT..GEN199305-199604

main87245-90K26iFJ7#..HT..GEN199001-199208

87265CONNECTOR, HEATER WATER HOSE

main87248-60460iKZJ7#199305-199604

main87248-95400iRJ70..HT..GEN199001-199004

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87208-60690iFZJ71,74,78..HT..GEN199908-200701

main87248-60192iFZJ70,73..HT..GEN; FZJ75..HT..GEN199201-199305

main87248-60460iKZJ7#199305-199604

main87248-95400iHZJ78..GEN200001-200701

8712460060CLAMP, HEATER

main87124-60060

8712860070GROMMET, HEATER

main87128-60070

8712860080GROMMET, HEATER

main87128-60080

9011906336

main90119-06336

9011908197

main90119-08197

9017908040

main90179-08040

9033913009

main90339-13009

9033916001

main90339-16001

91511B0814

main91511-B0814

9162140812

main91621-40812

9611210220

main96112-10220

9611210250

main96112-10250

25 parts on this diagram · 14 diagrams in section
