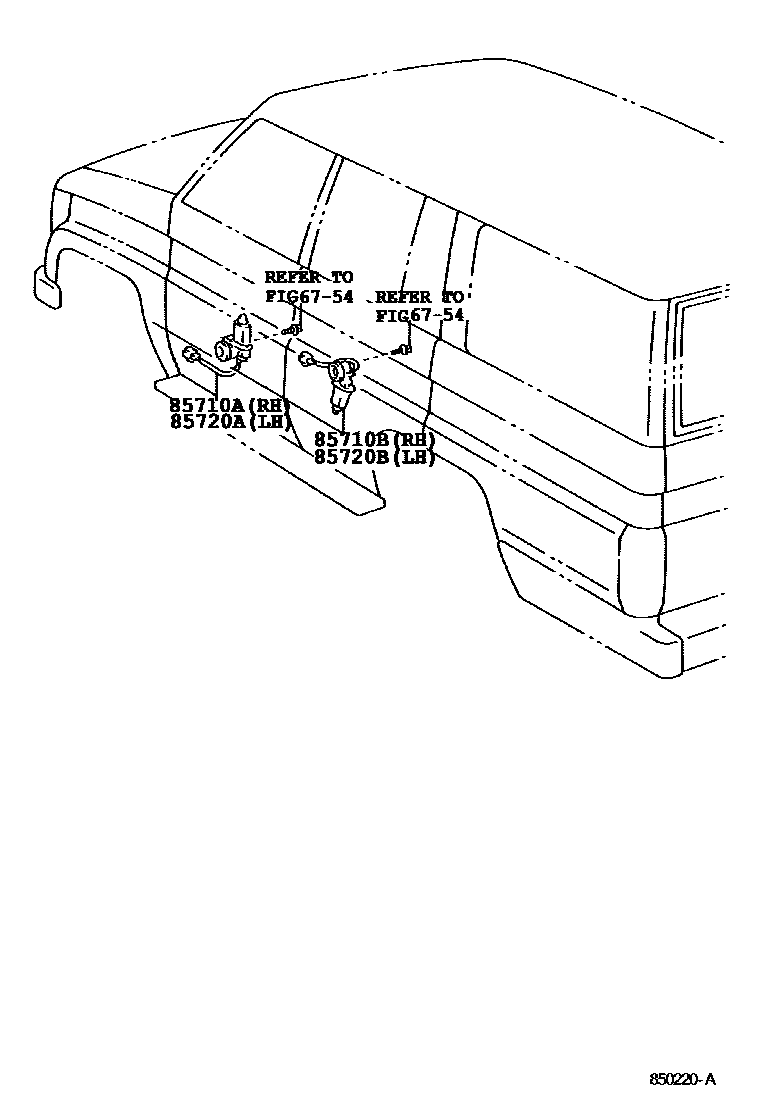

DOOR MOTOR & DOOR SOLENOID

6754FRONT DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-54

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-60030iFZJ70,75,HZJ75..LHD..LX..(CBR,DSL);FJ7#,FZJ71,73,74,79,HDJ7#,HZJ73,LJ7#,PZJ70,73,RJ7#..LX199001-200109

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-60020iLJ77,79,RJ77..LX199004-199305

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-60030iFZJ70,75,HZJ75..LHD..LX..(CBR,DSL);FJ7#,FZJ71,73,74,79,HDJ7#,HZJ73,LJ7#,PZJ70,73,RJ7#..LX199001-200109

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-60020iLJ77,79,RJ77..LX199004-199305

5 parts on this diagram · 1 diagram in section
