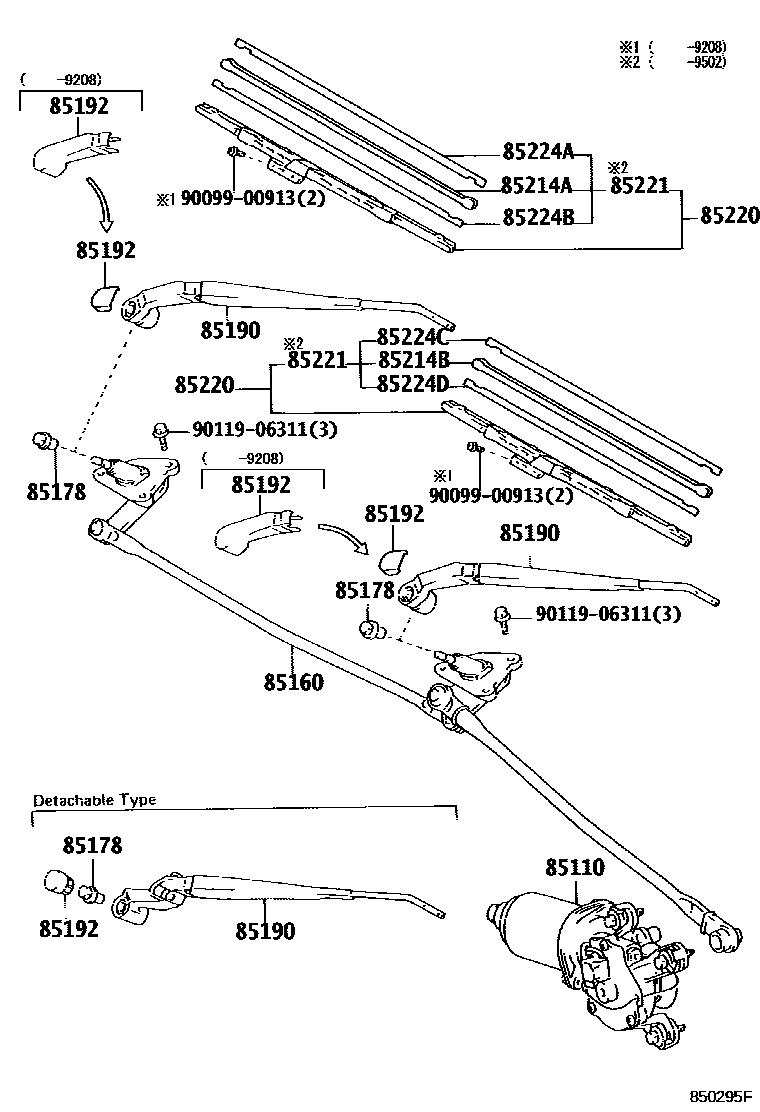

Toyota LAND CRUISER — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85190ARM ASSY, WINDSHIELD WIPER
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85220BLADE ASSY, WINDSHIELD WIPER
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
9009900913
9011906311
15 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota LAND CRUISER
This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota LAND CRUISER. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM.
