Toyota LAND CRUISER — HEADLAMP

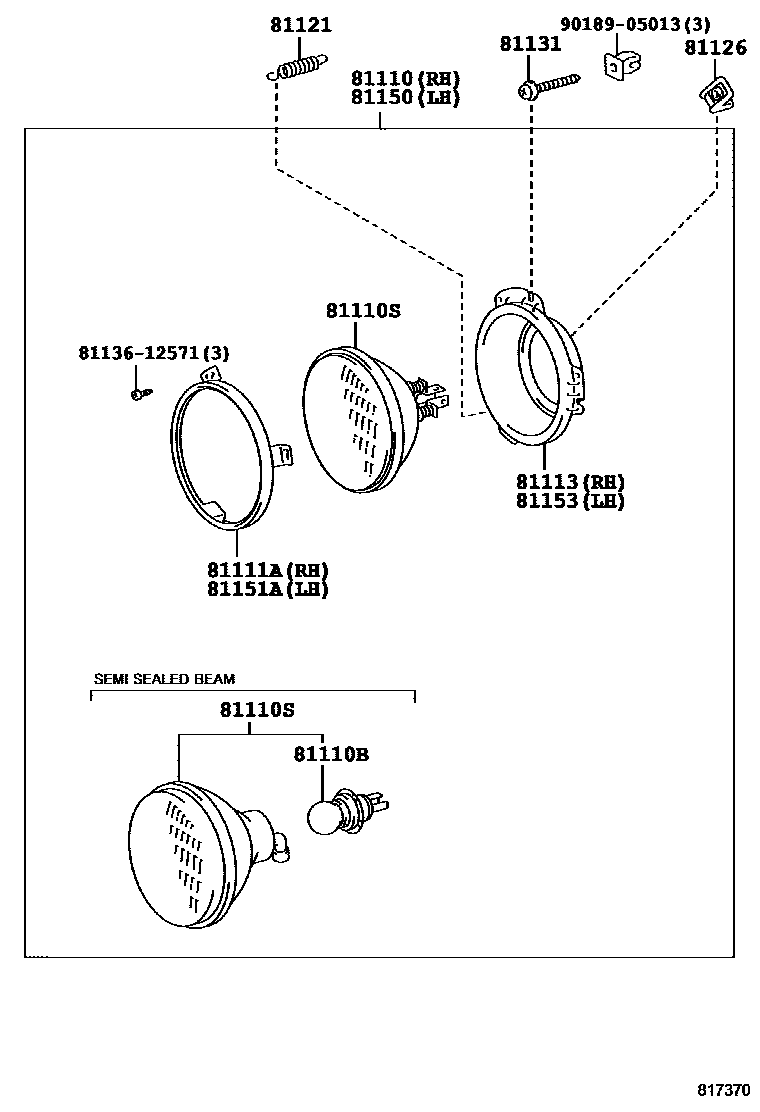

Parts diagram

81110BBULB(FOR HEADLAMP, NO.1)

81110SSEALED BEAM UNIT, NO.1

81111ARING, SEALED BEAM RETAINING, NO.1 RH

81113RING, SEALED BEAM MOUNTING, NO.1 RH

81121SPRING, HEADLAMP TENSION

81126PLATE, HEADLAMP

81131SCREW, HEADLAMP ADJUSTING

81151ARING, SEALED BEAM RETAINING, NO.1 LH

81153RING, SEALED BEAM MOUNTING, NO.1 LH

8113612571PROTECTOR, HEADLAMP, NO.1 RH

9018905013

13 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota LAND CRUISER

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota LAND CRUISER. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH, RING, SEALED BEAM MOUNTING, NO.1 RH.
