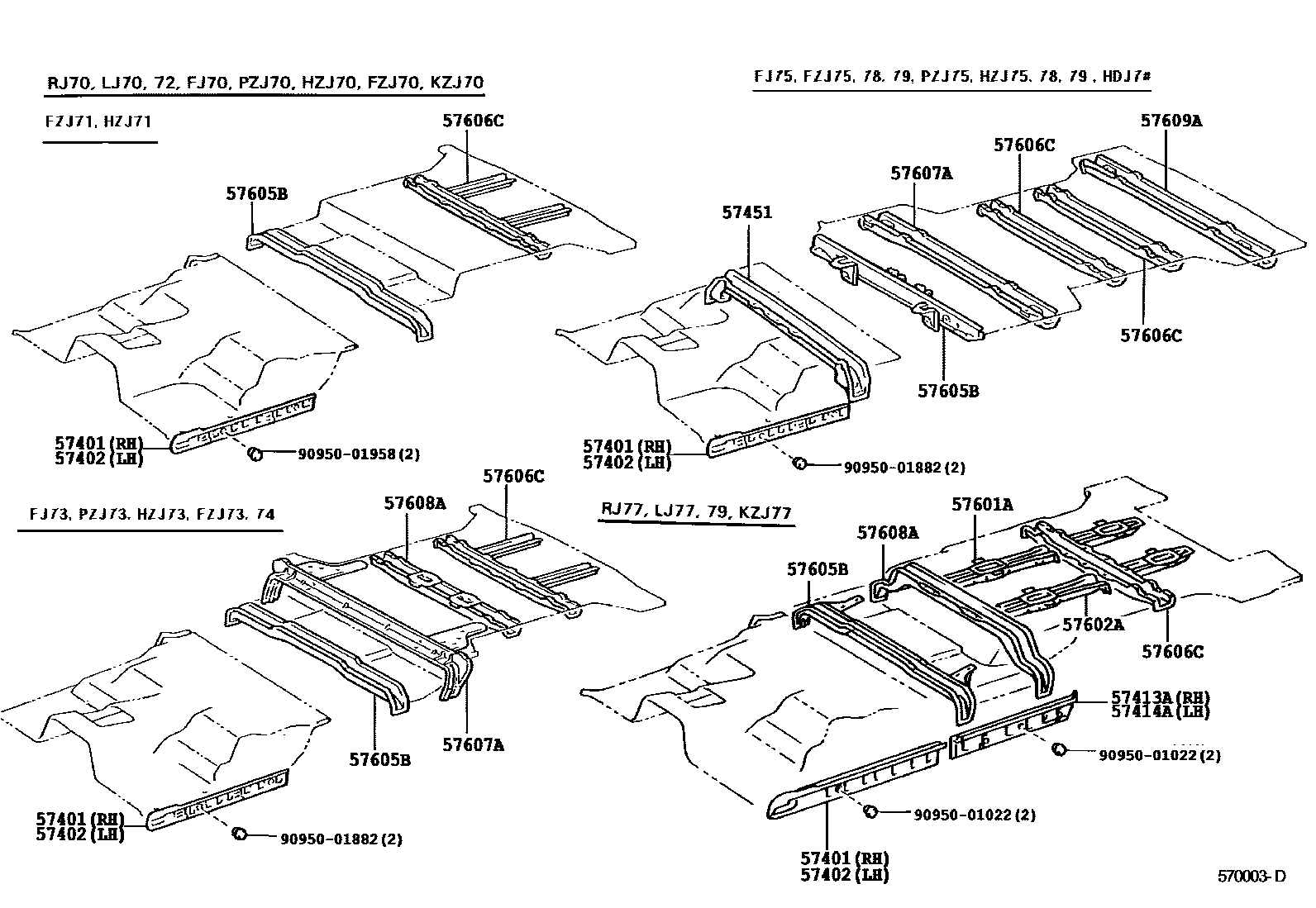

FLOOR MEMBER
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
main57402-90K01iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,LJ70,72,PZJ7#,RJ70199001-199305
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57451MEMBER, FRONT FLOOR CROSS
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
W(FRONT SEPARATE SEAT W/*SBE & AUXILIARY FUEL TANK)
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
W(FRONT SEPARATE SEAT W/*SBE)
USSR SPEC
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
CHINA SPEC OR W(FRONT BENCH SEAT W/*SBE); W(FRONT BENCH SEAT W/*SBE)
FOR PAKISTAN GOVERNMENT
W(FRONT SEPARATE SEAT W/*SBE)
main57605-90K11iFJ70,FZJ70,HZJ70,PZJ70..ARL;FZJ71,HZJ71,LJ79,RJ77..RHD..STD; LJ79,RJ77..RHD..LX;FJ70,FZJ70,LJ72,77,PZJ70,73,RJ70..RHD..GEN199001-199305
W(FRONT BENCH SEAT W/*SBE)
W(FRONT BENCH SEAT W/*SBE); W(FRONT BENCH SEAT W/*SBE) OR COLUBBIA SPEC
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
W(FRONT SEPARATE SEAT) OR W(FR0NT BENCH SEAT)
main57606-60100iFJ70,FZJ70,LJ70,72,PZJ70,RJ70..LX..GEN; FJ70,FZJ70..STD..GEN;LJ72,PZJ70,RJ70..HT..STD..GEN; FZJ70..LX..CBR;FJ70,FZJ71,LJ70,72,PZJ70,RJ70..LHD..LX199004-199305
W(*FFRS) & W/O REAR SEAT BELT; W(FRONT BENCH SEAT W/*SBE)
W(FRONT SEPARATE SEAT OR FRONT BENCH SEAT)
W(*FFRS); W(REAR SEAT BELT(ELR 3-2-3));W(*FFRS)
main57606-90K08iFJ70,LJ70,PZJ70,RJ70..LHD..LX; FJ70,LJ70,PZJ70,RJ70..LX..GEN; FJ70..STD..GEN;PZJ70,RJ70..HT..STD..GEN199001-199004
W(*FFRS) & W/O REAR SEAT BELT; W(FRONT BENCH SEAT W/*SBE)
FRONT
W(REAR SEAT BELT(NR 2-8)),REAR
REAR
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
W(REAR SEAT BELT)
W/O(REAR SEAT)
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
W(*AFT)
W(FRONT SEPARATE SEAT W/*SBE & AUXILIARY FUEL TANK); W(FRONT SEPARATE SEAT W/*SBE),NO.1
COLUMBIA SPEC
57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
W(TRANSVERSE REAR SEAT)
9095001022
main90950-01022
9095001882
main90950-01882
9095001958
main90950-01958
15 parts on this diagram · 1 diagram in section
