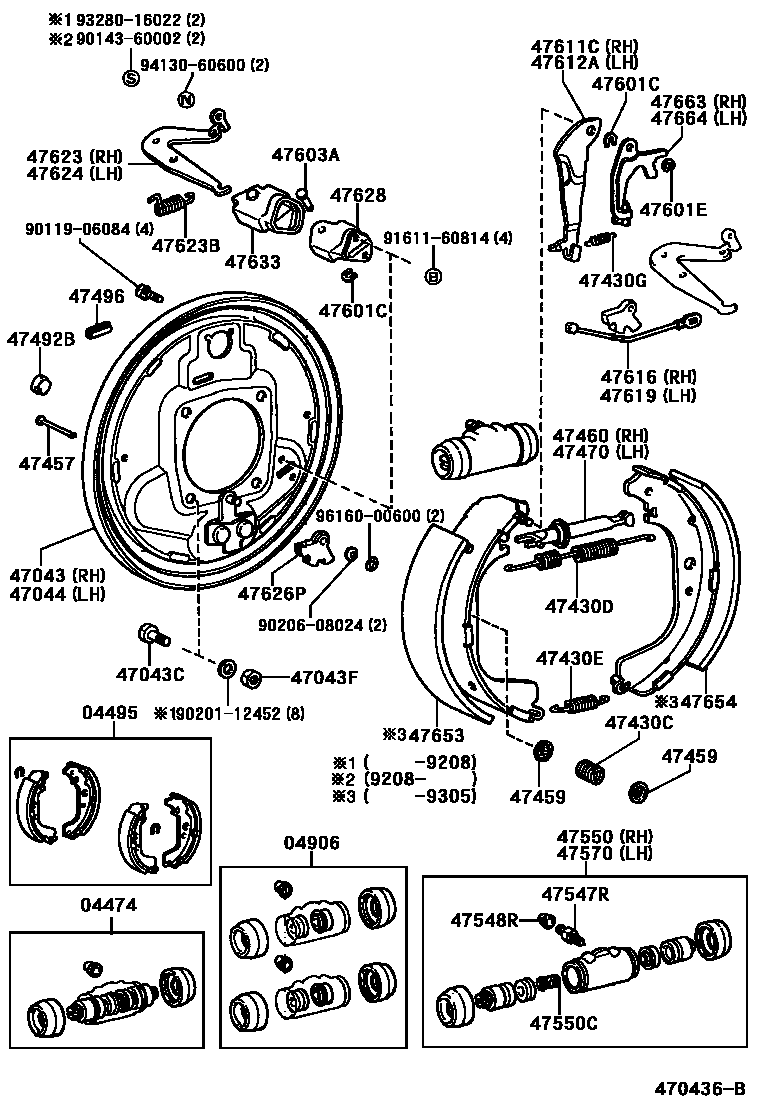

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0005 1

04474CYLINDER KIT, REAR WHEEL

main04474-35100iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199511-200808

main04474-60010iFJ7#,FZJ7#,HZJ7#,LJ77,79,PZJ7#,RJ77199001-199305

main04474-60010iPZJ70,73;RJ70..SOT199001-199511

W(FR DISC BRAKE)

main04474-60010iFJ75..LHD..IV;FJ75..HT..5F..GEN199001-199006

VENEZUELA SPEC OR W(FR DISC BRAKE)

main04474-60020iFJ75,HZJ75,PZJ75..GEN199001-199201

04495SHOE KIT, REAR BRAKE

main04495-26051iLJ77,79,RJ77199004-199012

main04495-26121iLJ70,RJ70..ARL199001-199305

main04495-26121iLJ70,72,RJ70..LX199012-199201

W(FR DISC BRAKE)

main04495-35151iRJ70..SOT199012-199604

main04495-40021iLJ70,72,RJ70..LX..GEN199001-199012

W(FR DISC BRAKE)

main04495-60011iFJ7#,HZJ75,PZJ7#..GCC,GEN199001-199012

main04495-60041iLJ72,RJ70..STD199001-199201

main04495-60060iFJ7#,HJ75,HZJ7#,PZJ70,73..ARL,SA199001-200405

MARK NBK LN508

main04495-60070iHZJ78..LX;HZJ79..ARL..CBU199908-200808

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iLJ70,72,RJ70..LX199001-199201

W(FR DISC BRAKE)

main04906-30060iLJ70,RJ70;LJ72..LHD199201-199305

main04906-30080iLJ72,RJ70..STD199001-199201

main04906-35130iKZJ7#,LJ7#,RJ7#199001-200808

main04906-35130iFJ70..5F..LX..GEN199012-199208

VENEZUELA SPEC

main04906-35130iFJ70..5F..LX..GEN199012-199201

W(FR DISC BRAKE)

main04906-35130iFJ70,75..GEN..CBU199201-199908

COLOMBIA SPEC

main04906-35130iFJ70,75..GEN..CBU199201-199208

VENEZUELA SPEC OR COLOMBIA SPEC

main04906-60050iFJ75,HZJ75..ARL,GCC;FJ70,73,HZJ70,73,PZJ70,73199012-199511

W(FR DISC BRAKE & AIR SCOOP)

main04906-60050iFJ7#,HJ75,HZJ7#,PZJ70,73..ARL,SA199001-199208

main04906-60060iFJ75,HZJ75,PZJ75..GEN199001-199201

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-60070iLJ70,RJ70;LJ72..LHD199001-199208

main47043-60071iLJ72,RJ70..LHD199208-199305

main47043-60080iFJ73199201-199305

COLOMBIA SPEC

main47043-60080iFJ75..LHD..IV;FJ70,75..(HT,SOT)..5F..GEN199001-199208

VENEZUELA SPEC

main47043-60080iFJ70,75..GEN..CBU199201-199208

VENEZUELA SPEC OR COLOMBIA SPEC

main47043-60090iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199208

main47043-60100iLJ77,79,RJ77199008-199208

main47043-60101iLJ77,79,RJ77199208-199305

main47043-60110iFZJ70,75..GEN..CBU..EFI199208-200405

main47043-60120iRJ70..SOT199305-199604

main47043-60130iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-12021iFJ7#,HJ75,HZJ7#,PZJ7#199001-199101

*12-1.25PX33-21

main90101-12175iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199101-200808

*12-1.25PX33-21

main90114-10002iKZJ7#,LJ7#,RJ7#199001-199604

*10-1.25PX37-18.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10041iKZJ7#,LJ7#,RJ7#..HT199001-199604

main90179-12119iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199208-200808

main94115-71200iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199208

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-60020iLJ70,72,RJ70199001-199208

main47044-60021iLJ72,RJ70..LHD199208-199305

main47044-60030iFJ73199201-199208

VENEZUELA SPEC OR COLOMBIA SPEC

main47044-60030iFJ75..GEN..IV199001-199208

VENEZUELA SPEC

main47044-60030iFJ75..GEN..IV199201-199305

COLOMBIA SPEC

main47044-60040iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#199001-199208

main47044-60050iLJ77,79,RJ77199008-199208

main47044-60051iLJ77,79,RJ77199208-199305

main47044-60060iPZJ70,73;PZJ75..4F199208-200405

main47044-60070iKZJ7#,LJ7#,RJ7#..HT199305-199604

main47044-60080iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iFZJ78,79..ARL199001-200808

main90501-20604iLJ77,79,RJ77199004-199604

main90501-20756iLJ70,RJ70;LJ72..LHD199001-199305

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12031iRJ70..SOT199305-199604

main90506-26011iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200405

RH

main90506-26014iFZJ70,75..GEN..CBU..EFI199001-200405

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200808

main90506-20005iLJ70,72,RJ70199001-199305

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12015iLJ70,72,RJ70199001-199305

main90506-12031iFJ7#,FZJ7#,HJ75,HZJ7#,LJ77,79,PZJ7#,RJ77199001-200808

main90506-26011iKZJ7#,LJ7#,RJ7#..HT199305-199604

RH

main90506-26014iKZJ7#,LJ7#,RJ7#..HT199305-199604

LH

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iLJ7#,RJ7#199001-199604

main47447-60010iFZJ75,HZJ75..SA199001-200808

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iPZJ70,73;PZJ75..4F;RJ70..SOT199001-200808

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-60011iFJ7#,FZJ7#,HJ75,HZJ7#,LJ77,79,PZJ7#,RJ77199001-200405

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-60011iFJ7#,FZJ7#,HJ75,HZJ7#,LJ77,79,PZJ7#,RJ77199001-200405

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iFZJ7#,HZJ7#,PZJ7#199208-200808

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iFJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200808

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iLJ70,72,RJ70199001-199305

main47547-60020iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200808

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT199001-200808

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-30100iLJ70,RJ70;LJ72..LHD199201-199305

main47550-30100iLJ70,72,RJ70..LX199001-199201

W(FR DISC BRAKE)

main47550-30120iLJ72,RJ70..STD199001-199201

main47550-60120iFJ75..LHD..IV;FJ75..HT..5F..GEN199001-200007

W(FR DISC BRAKE)

main47550-60120iFJ75..LHD..IV;FJ75..HT..5F..GEN199001-199006

VENEZUELA SPEC OR W(FR DISC BRAKE)

main47550-60120iFZJ78,79..ARL199001-200808

main47550-60130iFJ75,HZJ75,PZJ75..GEN199001-199201

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-22010iLJ72,RJ70..STD199001-199201

main47509-35020iLJ70,RJ70;LJ72..LHD199201-199305

main47509-35020iLJ70,72,RJ70..LX199001-199201

W(FR DISC BRAKE)

main47509-60010iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-199511

main90029-60009iHZJ7#..HT..GEN;HZJ75..GEN..IV;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI)199511-200808

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-30100iLJ72,RJ70..STD199001-199201

W(FR DISC BRAKE)

main47550-30100iLJ70,RJ70;LJ72..LHD199201-199305

main47550-30120iLJ72,RJ70..STD199001-199201

main47550-60120iFJ75..LHD..IV;FJ75..HT..5F..GEN199001-200007

W(FR DISC BRAKE)

main47550-60120iFJ75..RHD..GEN;HZJ75,PZJ75..GEN;FJ75..LHD..HT..4F;FJ75..LHD..PIC..GEN..CBU199001-199006

VENEZUELA SPEC OR W(FR DISC BRAKE)

main47550-60120iFJ75,HZJ75..ARL,GCC,SA;FJ70,73,HJ75,HZJ70,73,LJ77,79,PZJ70,73,RJ77199001-200808

main47550-60130iFJ75,HZJ75,PZJ75..GEN199001-199201

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

T=1.2

main90213-07010iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200808

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iFJ7#,FZJ7#,HJ75,HZJ7#,LJ77,79,PZJ7#,RJ77199001-200808

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08068iPZJ70,73;PZJ75..4F;RJ70..SOT199001-200808

main90249-08075iLJ70,RJ70;LJ72..LHD199001-199305

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-35040iPZJ70,73;PZJ75..4F199305-200808

main47611-60010iFZJ75,HZJ75..SA199001-199911

main47612-35020iLJ70,72,RJ70199001-199305

47612ALEVER, PARKING BRAKE SHOE, LH

main47611-35020iLJ70,RJ70;LJ72..LHD199001-199305

main47612-35040iHZJ78..LX;HZJ79..ARL..CBU199305-200808

main47612-60010iKZJ7#,LJ7#,RJ7#..HT199001-199911

47616WIRE, PARKING BRAKE, RH

main47616-26020iLJ70,72,RJ70199001-199305

main47616-35030iHZJ78..LX;HZJ79..ARL..CBU199908-200808

main47616-60010iFZJ70,75..GEN..CBU..EFI199001-200106

47619WIRE, PARKING BRAKE, LH

main47616-26020iLJ70,RJ70;LJ72..LHD199001-199305

main47616-35030iHZJ78..LX;HZJ79..ARL..CBU199908-200808

main47616-60010iFZJ75,HZJ75..SA199001-200106

47623CRANK, PARKING BRAKE BELL, NO.1

main47624-26020iLJ70,72,RJ70199001-199305

main47624-26050iLJ77,79,RJ77199004-199604

main47624-60010iFJ7#,FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-200405

main47624-60030iFZJ75,HZJ75..SA199004-199911

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90506-20033iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

main90507-23006iLJ70,RJ70;LJ72..LHD199001-199305

47624CRANK, PARKING BRAKE BELL, NO.2

main47625-26020iLJ70,RJ70;LJ72..LHD199001-199305

main47625-26050iLJ77,79,RJ77199004-199604

main47625-60010iFJ7#,FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-200405

main47625-60030iFJ75,FZJ75,HJ75,HZJ75..SA199004-199911

47626PPULLEY, PARKING BRAKE SEGMENTAL

main47626-60010iKZJ7#,LJ7#,RJ7#..HT199001-200405

47628BRACKET, REAR BRAKE BELLCRANK

main47628-26010iLJ70,RJ70;LJ72..LHD199001-199305

main47628-35020iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200808

47633BOOT, PARKING BRAKE BELLCRANK

main47633-26010iLJ70,72,RJ70199001-199305

main47633-35020iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200405

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-30050iLJ72,RJ70..STD199001-199012

W(FR DISC BRAKE)

main47655-60010iFJ73199012-199208

VENEZUELA SPEC

main47655-60010iFJ7#,HZJ75,PZJ7#..GCC,GEN199001-199012

main47655-60010iFJ70,75..GEN..CBU199201-199305

COLOMBIA SPEC

main47655-60010iFJ70,75..GEN..CBU199201-199208

VENEZUELA SPEC & COLOMBIA SPEC

main47655-60030iLJ72..RHD199001-199305

main47655-60040iFJ75,HZJ75..ARL,GCC;FJ70,73,HZJ70,73,PZJ70,73199012-199201

W(FR DISC BRAKE)

main47655-60040iFJ7#,HJ75,HZJ7#,PZJ70,73..ARL,SA199001-199208

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-30050iLJ70,72,RJ70..LX..GEN199001-199012

W(FR DISC BRAKE)

main47655-60010iFJ75..LHD..IV;FJ70,75..(HT,SOT)..5F..GEN199012-199208

VENEZUELA SPEC

main47655-60010iFJ7#,HZJ75,PZJ7#..GCC,GEN199001-199012

main47655-60010iFJ70,75..GEN..CBU199201-199305

COLOMBIA SPEC

main47655-60010iFJ70,75..GEN..CBU199201-199208

VENEZUELA SPEC & COLOMBIA SPEC

main47655-60030iLJ72..RHD199001-199305

main47655-60040iFJ7#,FZJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-199208

main47655-60040iFJ75,HZJ75..ARL,GCC;FJ70,73,HZJ70,73,PZJ70,73199012-199201

W(FR DISC BRAKE)

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-60010iKZJ7#,LJ7#,RJ7#..HT199001-200808

main47644-35020iLJ70,72,RJ70199001-199305

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47643-35020iLJ70,72,RJ70199001-199305

main47644-60010iFZJ70,75..GEN..CBU..EFI199001-200808

9011906084

main90119-06084

9014360002

main90143-60002

9020112452

main90201-12452

9020608024

main90206-08024

9161160814

main91611-60814

9328016022

main93280-16022

9413060600

main94130-60600

9616000600

main96160-00600

47 parts on this diagram · 4 diagrams in section
