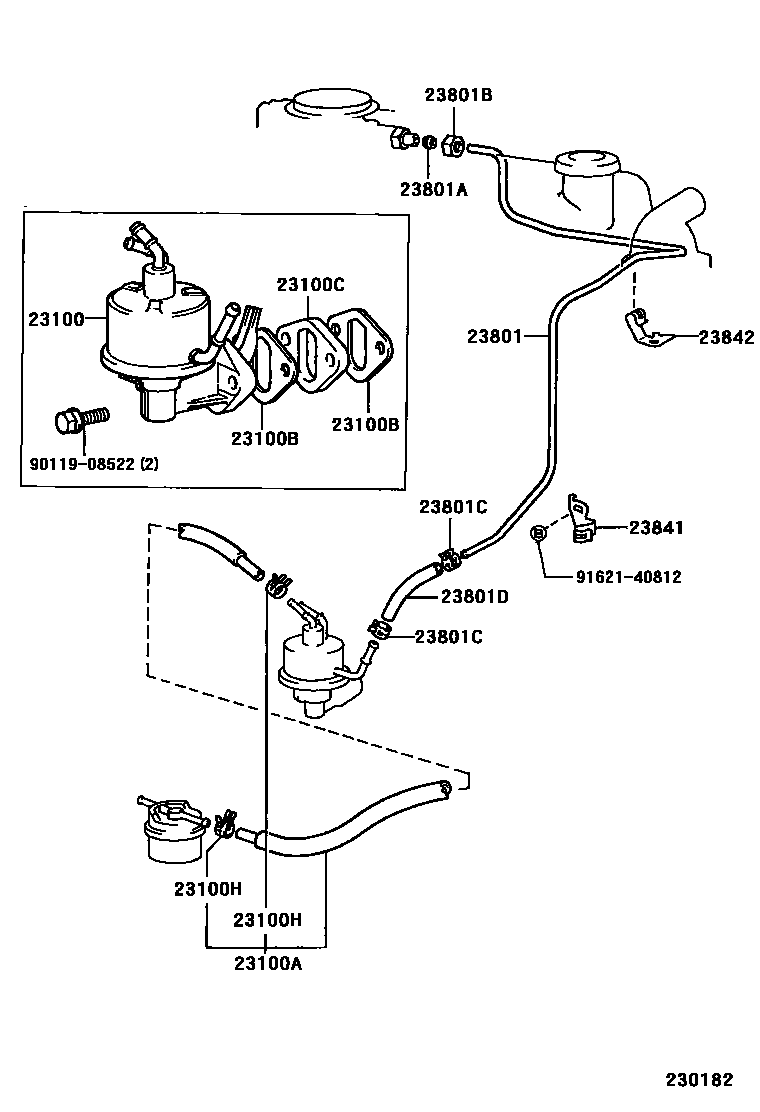

Toyota LAND CRUISER — FUEL PUMP & PIPE
23100PUMP ASSY, FUEL
23100AHOSE, FUEL
23100BGASKET, FUEL PUMP
23100CINSULATOR, FUEL PUMP
23100HCLIP(FOR FUEL HOSE)
23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801AOLIVE(FOR FUEL PIPE)
23801BNUT, UNION(FOR FUEL PIPE)
23801CCLIP(FOR CARBURETOR FUEL HOSE)
23801DHOSE, FUEL PIPE, NO.1
23842CLAMP, FUEL PIPE(HOSE), NO.2
9011908522
9162140812
14 parts on this diagram · 3 diagrams in section
FUEL PUMP & PIPE for Toyota LAND CRUISER
This section contains 26 genuine Toyota parts for the FUEL PUMP & PIPE system of the Toyota LAND CRUISER. Key components include: PUMP ASSY, FUEL, HOSE, FUEL, GASKET, FUEL PUMP, INSULATOR, FUEL PUMP, CLIP(FOR FUEL HOSE).
