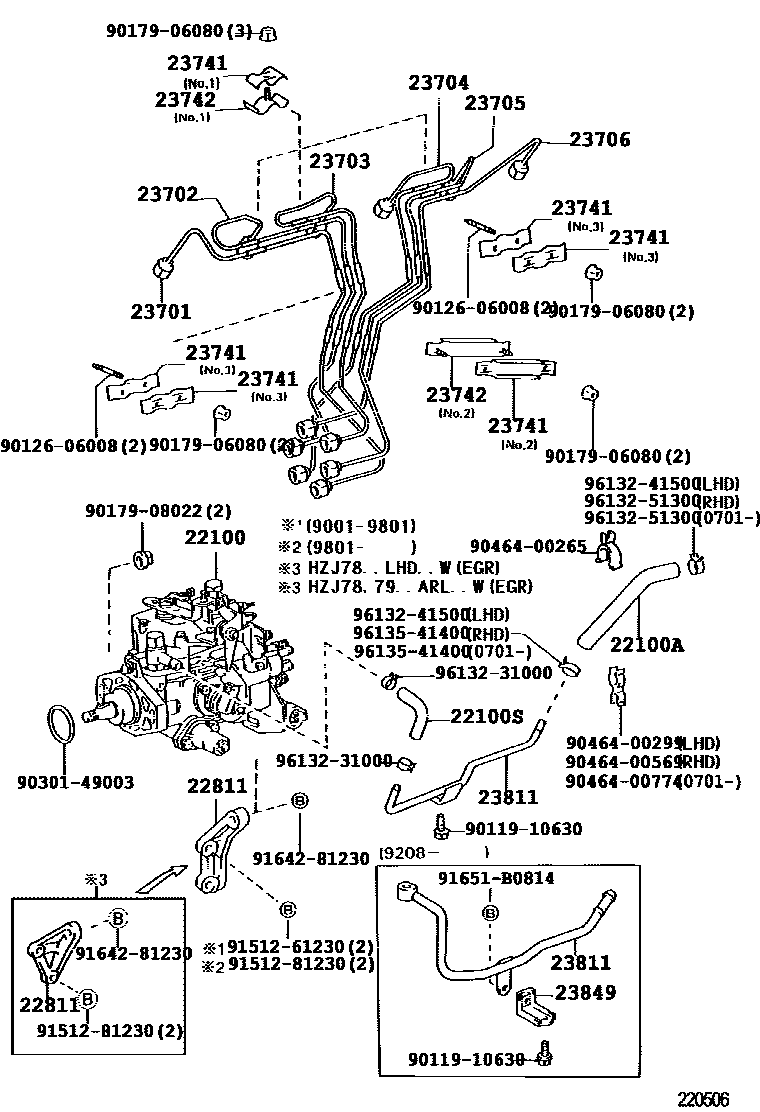

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0006 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-17050i1HZ..HZJ75..SA199108-199208

sub22100-17060

main22100-17050i1HZ..HZJ75..GEN199001-199208

W(HIGH ALTITUDE COMPENSATOR)

sub22100-17060

main22100-17060i1HZ..HZJ75..GEN199001-199208

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-17070i1HZ..HZJ73..4FC199001-199108

main22100-17200i1HZ..HZJ75..RHD..PIC..GEN..CBU199001-199208

BANGLADESH CKD SPEC

sub22100-17100

main22100-17310i1HZ..HZJ75..STD..(GCC,GEN)199001-199208

sub22100-17320

main22100-17320i1HZ..HZJ75..LX;1HZ..HZJ7#..5F..ARL199001-199208

W(TACHO METER)

main22100-17491i1HZ..HZJ75..GEN199208-199805

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-17491i1HZ..HZJ70..LX199401-199501

W(HIGH ALTITUDE COMPENSATOR)

main22100-17491i1HZ..HZJ70..LX199501-199805

W(HIGH ALTITUDE COMPENSATOR & TACHO METER)

main22100-17500i1HZ..HZJ75..STD..GCC199208-199805

sub22100-17510

main22100-17510i1HZ..HZJ75..ARL;1HZ..HZJ75..LX..GCC199208-199805

main22100-17680i1HZ..HZJ75..SA199208-199805

W(HIGH ALTITUDE COMPENSATOR)

sub22100-17491

main22100-17780i1HZ..HZJ75..RHD..PIC..GEN..CBU199208-199805

BANGLADESH CKD SPEC

main22100-17790i1HZ..HZJ7#..STD..GEN199208-199805

main22100-17800i1HZ..HZJ75..RHD..GEN;1HZ..HZJ75..LHD..GEN..CBU199208-199805

W(TACHO METER)

main22100-17800i1HZ..HZJ75..LHD..IV199501-199805

W(TACHO METER PICK UP)

main22100-17800i1HZ..HZJ70..LX199401-199501

main22100-17A10i1HZ..HZJ78,79..ARL200401-200701

W(EGR)

main22100-18010i1PZ..PZJ70..SOT199001-199208

BANGLADESH CKD SPEC

sub22100-18020

main22100-18050i1PZ..PZJ75..RHD;1PZ..PZJ75..LHD..CBU;1PZ..PZJ70,73..STD..GEN199001-199208

sub22100-18060

main22100-18060i1PZ..PZJ70..LX;1PZ..PZJ70,73..ARL199001-199208

main22100-18070i1PZ..PZJ75..RHD;1PZ..PZJ75..LHD..CBU;1PZ..PZJ70,73..STD..GEN199001-199208

W(HIGH ALTITUDE COMPENSATOR)

sub22100-18080

main22100-18080i1PZ..PZJ70..LX199001-199208

W(HIGH ALTITUDE COMPENSATOR)

main22100-18131i1PZ..PZJ75..RHD;1PZ..PZJ70,73..STD;1PZ..PZJ75..LHD..CBU199208-199401

sub22100-18141

main22100-18141i1PZ..PZJ70..LX199208-199401

main22100-18151i1PZ..PZJ75..4F..IV199208-199401

W(HIGH ALTITUDE COMPENSATOR)

sub22100-18161

main22100-18151i1PZ..PZJ75199401-199501

sub22100-18161

main22100-18161i1PZ..PZJ70..LX199208-199401

W(HIGH ALTITUDE COMPENSATOR)

main22100-18180i1PZ..PZJ70..SOT199208-199401

BANGLADESH CKD SPEC

main22100-1C050i1HZ..HZJ75..RHD..PIC..GEN..CBU199805-200701

W(TACHO METER PICK UP)

main22100-1C060i1HZ..HZJ70..LX199805-200007

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-1C060i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199908-200207

main22100-1C070i1HZ..HZJ78..LHD200010-200207

CHINA SPEC

main22100-1C190i1HZ..HZJ71,78,79..GCC,GEN199805-200701

main22100-1C200i1HZ..HZJ79..ARL..IV199908-200002

W(HIGH ALTITUDE CONPENSATOR)

sub22100-1C201

main22100-1C200i1HZ..HZJ71,78,79..GEN199805-200002

W(HIGH ALTITUDE COMPENSATOR)

sub22100-1C201

main22100-1C200i1HZ..HZJ71,78,79..GEN199908-200002

PAPUA NEW GUINEA SPEC

sub22100-1C201

main22100-1C200i1HZ..HZJ75..SA199805-199811

sub22100-1C201

main22100-1C201i1HZ..HZJ71,78,79..GEN200002-200701

PAPUA NEW GUINEA SPEC

main22100-1C201i1HZ..HZJ70,75200002-200701

W(HIGH ALTITUDE COMPENSATOR)

main22100-1C210i1HZ..HZJ75..RHD..PIC..GEN..CBU199805-200007

EAST MALAYSIA CKD SPEC

sub22100-1C070

main22100-1C220i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199805-200007

BANGLADESH CKD SPEC

sub22100-1C320

main22100-1C240i1HZ..HZJ75..SA199811-199911

sub22100-1C241

main22100-1C240i1HZ..HZJ79..RHD..GEN199908-200002

SOUTH AFRICA SPEC

sub22100-1C241

main22100-1C241i1HZ..HZJ79..RHD..GEN200002-200701

SOUTH AFRICA SPEC

main22100-1C320i1HZ..HZJ71,79..RHD..(PIC,SOT)..CBU200408-200701

BANGLADESH CKD SPEC

main22100-1C350i1HZ..HZJ79..RHD..GEN199908-200408

W(EGR)

main22100-1C370i1HZ..HZJ78,79..ARL200207-200401

W(EGR)

main22100-1C380i1HZ..HZJ78,79..GEN200002-200701

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP)

main22100-1C410i1HDFTE..HDJ7#200108-200701

main22100-1C461i1HZ..HZJ78,79..LHD..GEN..CBU200408-200701

COLD SPEC

main22100-54710i3L..LJ79..RHD..LX199011-199305

MALAYSIA SPEC

main22100-54710i3L..LJ79..RHD..LX199305-199604

main22100-54850i3L..LJ72,79..STD199004-199305

sub22100-54860

main22100-54860i3L..LJ72,79..LX199004-199305

W(TACHO METER PICK UP)

main22100-54860i3L..LJ7#..STD;3L..LJ79..LHD..LX199305-199604

main22100-54880i3L..LJ7#..STD;3L..LJ79..LHD..LX199004-199604

W(HIGH ALTITUDE COMPENSATOR)

main22100-5B030i3L..LJ79..RHD..LX199004-199011

MALAYSIA SPEC

main22100-5B051i3L..LJ72,79..LHD..HT..STD199108-199305

COLD AREA SPEC OR SWEDEN SPEC

sub22100-5B420

main22100-5B051i3L..LJ7#..LHD199305-199604

COLD AREA SPEC

sub22100-5B420

main22100-5B051i3L..LJ79..LHD;3L..LJ72..LHD..HT..STD199108-199305

COLD AREA SPEC OR W(POWER STEERING)

sub22100-5B420

main22100-5B270i2LT..LJ70,77199001-199305

main22100-67050i1KZT..KZJ7#199305-199604

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-17060i1PZ..PZJ7#199002-199208

*H,L=300

main23271-17061i1PZ..PZJ7#199208-199501

*H,L=320

main23271-17150i1HZ..HZJ79..ARL..IV;1HZ..HZJ79..RHD..GEN;1HZ..HZJ78..RHD..STD199908-200308

FUEL FILTER,E+SUBFILTER 12MM

main23271-17150i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199908-200701

main23271-17170i1HDFTE..HDJ7#200108-200305

main23271-17180i1HZ..HZJ78,79..RHD200303-200308

sub23271-17181

main23271-17181i1HZ..HZJ78,79..RHD200308-200701

FUEL FILTER,E+SUBFILTER 12MM

main23271-17190i1HDFTE..HDJ7#200305-200701

main23271-67010i1KZT..KZJ77..RHD199305-199604

L=500

main23271-67020i1KZT..KZJ7#..LHD199305-199604

L=580

main90447-14068i2LT,3L..LJ7#..RHD199001-199604

main90447-14069i2LT,3L..LJ7#..LHD199001-199604

main95332-10030i1PZ..PZJ7#199001-199002

L=300

main95332-10040i1HZ..HZJ7#199208-200007

L=400(*H,L=340)

main95332-10040i1HZ..HZJ7#199001-199208

L=400(*H,L=320)

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-17050i1PZ..PZJ7#199001-199208

main90447-12004i1KZT..KZJ7#199305-199604

22811STAY, INJECTION PUMP, NO.1

main22811-17010i1PZ..PZJ70,73;1PZ..PZJ75..RHD;1PZ..PZJ75..LHD..CBU199001-199505

sub22811-17011

main22811-17011i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199505-200701

main22811-17030i1HZ..HZJ78..LHD200207-200701

W(EGR)

main22811-17030i1HDFTE..HDJ7#200108-200701

main22811-54041i2LT,3L..LJ7#199001-199604

sub22811-54042

main22811-54041i3L..LJ79..RHD..LX199011-199305

MALAYSIA SPEC

sub22811-54042

main22811-67010i1KZT..KZJ7#199305-199604

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-17010i1HZ..HZJ75;1HZ..HZJ70..GEN199001-199805

main23701-17040i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV199805-200701

main23701-17080i1HDFTE..HDJ7#200108-200701

main23701-18010i1PZ..PZJ7#199001-199501

main23701-54140i3L..LJ7#199001-199604

main23701-67020i1KZT..KZJ7#199305-199507

sub23701-67021

main23701-67021i1KZT..KZJ7#199507-199604

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-17010i1HZ..HZJ75;1HZ..HZJ70..GEN199001-199805

main23702-17040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199805-200701

main23702-17080i1HDFTE..HDJ7#200108-200701

main23702-18010i1PZ..PZJ7#199001-199501

main23702-54140i2LT,3L..LJ7#199001-199604

main23702-67020i1KZT..KZJ7#199305-199604

sub23702-67021

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-17010i1HZ..HZJ7#199001-199805

main23703-17040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199805-200701

main23703-17080i1HDFTE..HDJ7#200108-200701

main23703-18010i1PZ..PZJ7#199001-199501

main23703-54100i3L..LJ7#199001-199604

main23703-67020i1KZT..KZJ7#199305-199507

sub23703-67021

main23703-67021i1KZT..KZJ7#199507-199604

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-17010i1HZ..HZJ75;1HZ..HZJ70..GEN199001-199805

main23704-17040i1HZ..HZJ75..SA199805-200701

main23704-17080i1HDFTE..HDJ7#200108-200701

main23704-18010i1PZ..PZJ7#199001-199501

main23704-54100i3L..LJ7#199001-199604

main23704-67020i1KZT..KZJ7#199305-199604

23705PIPE SUB-ASSY, INJECTION, NO.5

main23705-17010i1HZ..HZJ75;1HZ..HZJ70..GEN199001-199805

main23705-17040i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199805-200701

main23705-17080i1HDFTE..HDJ7#200108-200701

main23705-18010i1PZ..PZJ7#199001-199501

23706PIPE SUB-ASSY, INJECTION, NO.6

main23706-17010i1HZ..HZJ7#199001-199805

main23706-17040i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199805-200701

main23706-17080i1HDFTE..HDJ7#200108-200701

23741CLAMP, INJECTION PIPE, NO.1

main23741-17010i1HZ..HZJ7#199001-200701

NO.1

main23741-17020i1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV199001-200701

NO.2

main23741-17030i1PZ..PZJ7#199001-200701

NO.3

main23741-17051i1HDFTE..HDJ7#200108-200701

main23741-54010i3L..LJ7#199001-199604

NO.1

main23741-56010i2LT,3L..LJ7#199001-199604

NO.2

main23741-64030i1KZT..KZJ7#199305-199604

23742CLAMP, INJECTION PIPE, NO.2

main23742-17010i1PZ..PZJ7#199001-200701

NO.1

main23742-17020i1HZ..HZJ70..ARL199001-200701

NO.2

main23742-17030i1HDFTE..HDJ7#200108-200701

main23742-54010i2LT,3L..LJ7#199001-199604

main23742-67010i1KZT..KZJ7#199305-199604

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-17010i1HZ..HZJ75..RHD..GEN..CBU;1HZ..HZJ75..LHD..PIC..GEN199208-199305

W(HIGH ALTITUDE COMPENSATOR)

main23811-17010i1PZ..PZJ7#199001-199208

main23811-17020i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199208-200701

main23811-17080i1HDFTE..HDJ7#200108-200701

main23811-54150i2LT,3L..LJ7#199001-199108

sub23811-54151

main23811-54151i2LT,3L..LJ7#199108-199604

main23811-67020i1KZT..KZJ7#199305-199604

23849SUPPORT, FUEL

main23849-17010i1PZ..PZJ7#199208-200701

9011910630

main90119-10630

9012606008

main90126-06008

9017906080

main90179-06080

9017908022

main90179-08022

9030149003

main90301-49003

9046400265

main90464-00265

9046400299

main90464-00299

9046400569

main90464-00569

9046400774

main90464-00774

9151261230

main91512-61230

9151281230

main91512-81230

9164281230

main91642-81230

91651B0814

main91651-B0814

9613231000

main96132-31000

9613241500

main96132-41500

9613251300

main96132-51300

9613541400

main96135-41400

31 parts on this diagram · 5 diagrams in section
