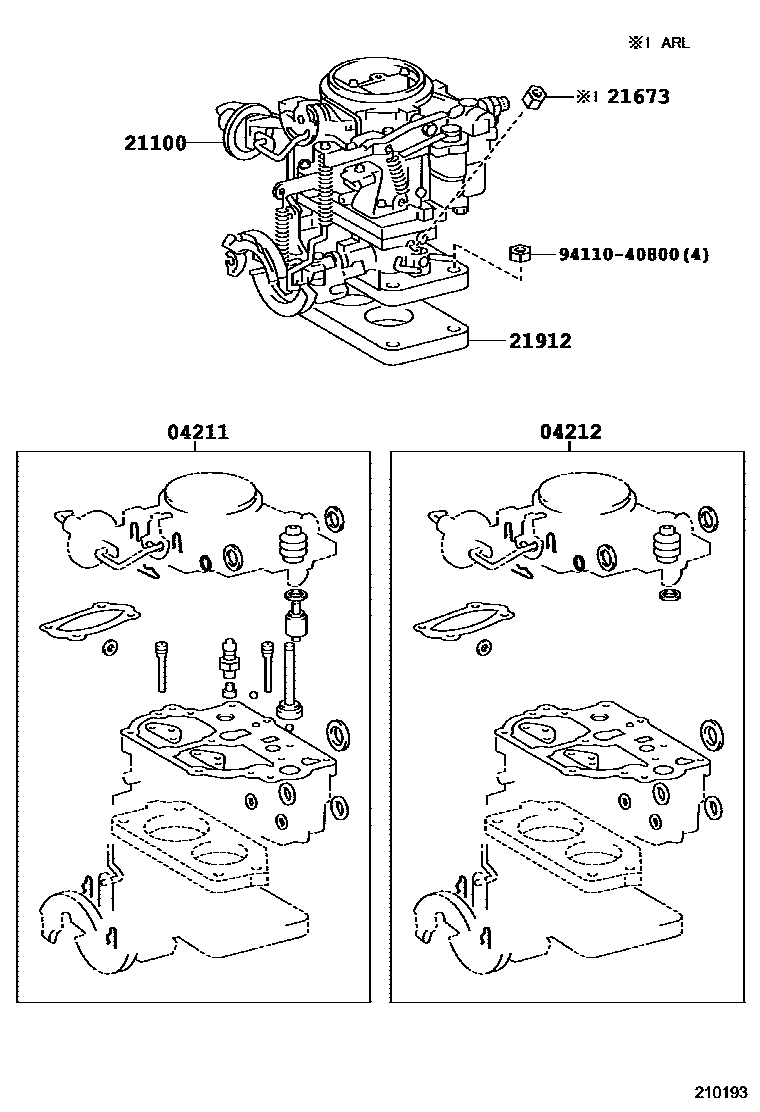

CARBURETOR ASSEMBLY

0001 1 0002 1 0003 1

04211CARBURETOR KIT

main04211-35082i22R..RJ77..RHD..LX199208-199305

EAST MALAYSIA SPEC

main04211-35090i22R..RJ7#..GCC,GEN199004-199006

main04211-35091i22R..RJ7#..GCC,GEN199006-199208

main04211-35092i22R..RJ7#199305-199401

main04211-35420i22R..RJ70..ARL199001-199006

main04211-35421i22R..RJ70..ARL199006-199108

main04211-61251i3F..FJ7#..GEN,SA199001-199002

main04211-61253i3F..FJ7#..GEN,SA199002-199011

main04211-61260i3F..FJ7#..ARL199001-199002

main04211-61261i3F..FJ7#..ARL199002-199208

main04211-61270i3F..FJ7#..5F..GCC199001-199002

main04211-61271i3F..FJ7#..5F..GCC199002-199201

main04211-61290i3F..FJ73..4FC199001-199002

main04211-61291i3F..FJ73..4FC199002-199201

main04211-61300i3F..FJ75..SA199011-199201

main04211-61310i3F..FJ73,75..(PIC,SOT)..GEN199201-199208

main04211-66010i1FZF..FZJ7#..GCC199201-199305

main04211-66011i1FZF..FZJ7#..GCC199502-199908

main04211-66020i1FZF..FZJ75..SA199201-199305

main04211-66021i1FZF..FZJ75..SA199502-199911

main04211-66030i1FZF..FZJ7#..GEN199501-199502

main04211-66031i1FZF..FZJ7#..GEN199502-199908

04212GASKET KIT, CARBURETOR

main04212-35030i22R..RJ7#..GCC,GEN199004-199006

main04212-35031i22R..RJ7#..GCC,GEN199006-199208

main04212-35402i22R..RJ7#199305-199401

main04212-35410i22R..RJ70..ARL199001-199006

main04212-35421i22R..RJ70..ARL199006-199108

main04212-61030i3F..FJ7#199001-199002

main04212-61031i3F..FJ7#199002-199011

main04212-61050i3F..FJ75..SA199011-199201

main04212-66010i1FZF..FZJ7#..GCC,SA199305-199501

main04212-66011i1FZF..FZJ70,73,75199502-199911

21100CARBURETOR ASSY

main21100-35360i22R..RJ77..RHD..LX199208-199305

EAST MALAYSIA SPEC

main21100-35370i22R..RJ70..GEN199001-199004

main21100-35500i22R..RJ70..ARL199001-199108

main21100-61191i3F..FJ7#..MTM..GEN199011-199201

main21100-61221i3F..FJ70..4FC199001-199201

main21100-61251i3F..FJ7#..ARL199001-199208

main21100-61271i3F..FJ70,75..GEN..CBU; 3F..FJ75..GEN..IV199201-199208

VENEZUELA SPEC; W(OUTER VENT CONTROL)

main21100-61300i3F..FJ7#..5F..GCC199001-199201

main21100-61320i3F..FJ73..4FC199001-199201

main21100-61330i3F..FJ75..SA199011-199201

main21100-61340i3F..FJ73,75..(PIC,SOT)..GEN199201-199208

main21100-66010i1FZF..FZJ7#..GCC199201-199305

main21100-66011i1FZF..FZJ7#..GCC199403-199502

main21100-66012i1FZF..FZJ7#..GCC199502-199908

main21100-66020i1FZF..FZJ75..SA199305-199502

main21100-66021i1FZF..FZJ75..SA199502-199911

main21100-66030i1FZF..FZJ7#..GEN199201-199305

main21100-66031i1FZF..FZJ7#..GEN199502-199908

main21100-66040i1FZF..FZJ70,75..LHD..STD..GEN..CBU199510-199908

CHINA SPEC

21673CAP, IDLE LIMIT

main21673-13280i22R..RJ70..GEN199001-199004

21912INSULATOR, CARBURETOR HEAT

main21912-35040i22R..RJ7#199401-199604

main21912-35050i22R..RJ70..ARL199001-199108

main21912-61070i3F..FJ7#199001-199208

main21912-66010i1FZF..FZJ7#199201-199305

9411040800

main94110-40800

6 parts on this diagram · 3 diagrams in section
