TIMING GEAR COVER & REAR END PLATE

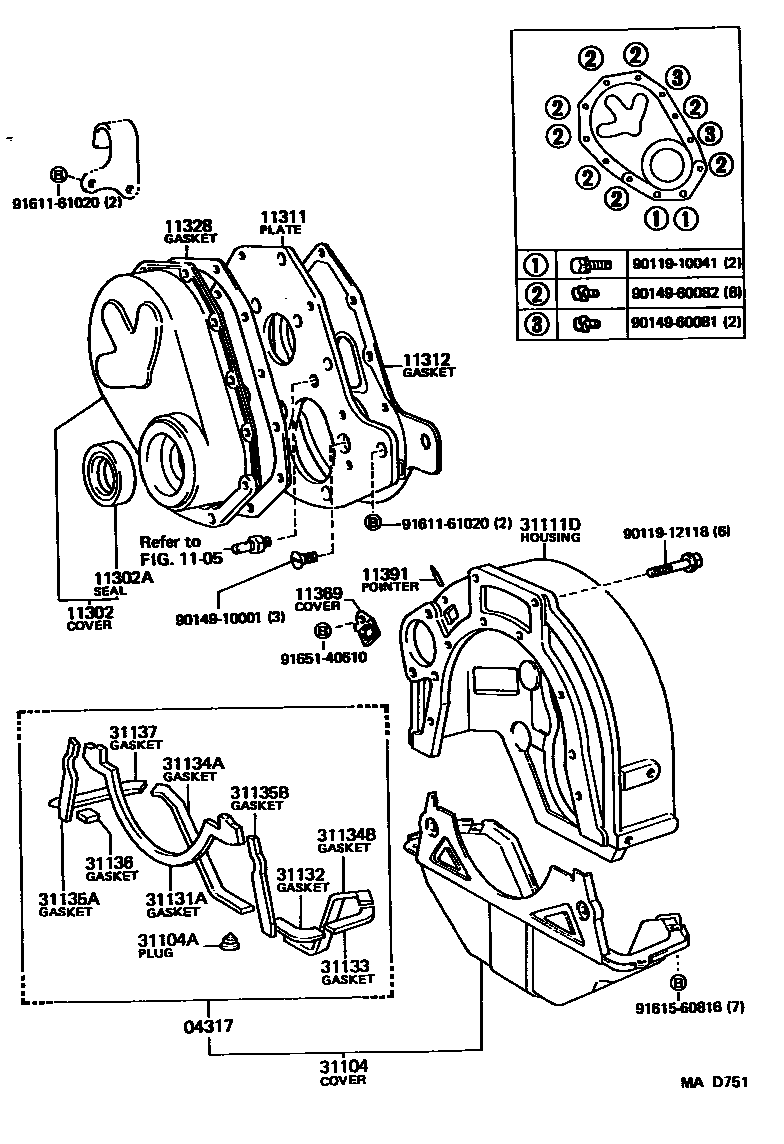

Parts diagram
04317GASKET KIT, CLUTCH UNDER COVER
main04317-60030i199001-199208
1105CYLINDER BLOCK
→ Go to FIG 11-05
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
main11302-35010i199305-199401
main11302-61031i199001-199208
main11302-67010i199305-199604
main11310-66020i199305-200405
main11321-54020i199305-199604
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
main90311-45006i199001-199004
main90311-45008i199001-199208
main90311-45011i199006-199305
main90311-45014i199401-199604
main90311-50017i199305-199604
main90311-52022i199908-200605
main90311-58006i199305-199501
NO.1
main90311-58007i199908-200701
NO.2
main90311-65003i200108-200701
NO.1
11311PLATE, FRONT END
main11311-61020i199001-199208
11312GASKET, FRONT END PLATE
main11312-54021i199305-199604
main11312-61021i199001-199208
11328GASKET, TIMING GEAR OR CHAIN COVER
main11328-17010i199305-199501
main11328-17030i199908-200701
main11328-17040i200108-200701
main11328-35020i199001-199004
main11328-35030i199305-199401
main11328-54021i199001-199305
main11328-61010i199001-199208
main11328-66020i199908-200701
main11328-67020i199305-199604
11369COVER, FLYWHEEL HOUSING FRONT
main11369-60011i199001-199208
11391POINTER, TIMING
main11391-54020i199001-199305
main11391-60010i199001-199208
main11391-67010i199305-199604
31104COVER SUB-ASSY, CLUTCH HOUSING UNDER
main31104-60030i199001-199208
31104APLUG, HOLE(FOR CLUTCH HOUSING UNDER COVER)
main90950-01200i199001-199208
31111DHOUSING, CLUTCH
main31111-60220i199001-199208
31131AGASKET, CLUTCH HOUSING UNDER COVER, NO.1
main31131-60010i199001-199208
31132GASKET, CLUTCH HOUSING UNDER COVER, NO.2
main31132-60020i199001-199208
31133GASKET, CLUTCH HOUSING UNDER COVER, NO.3
main31133-60020i199001-199208
31134AGASKET, CLUTCH HOUSING UNDER COVER, NO.4
main31134-60020i199001-199208
31134BGASKET, CLUTCH HOUSING UNDER COVER, NO.4
main31134-60030i199001-199208
31135AGASKET, CLUTCH HOUSING UNDER COVER, NO.5
main31135-60021i199001-199208
31135BGASKET, CLUTCH HOUSING UNDER COVER, NO.5
main31135-60031i199001-199208
31136GASKET, CLUTCH HOUSING UNDER COVER, NO.6
main31136-60010i199001-199208
31137GASKET, CLUTCH HOUSING UNDER COVER, NO.7
main31137-60010i199001-199208
9011910041
main90119-10041
9011912118
main90119-12118
9014910001
main90149-10001
9014960081
main90149-60081
9014960082
main90149-60082
9161161020
main91611-61020
9161560816
main91615-60816
9165140610
main91651-40610

29 parts on this diagram · 10 diagrams in section
