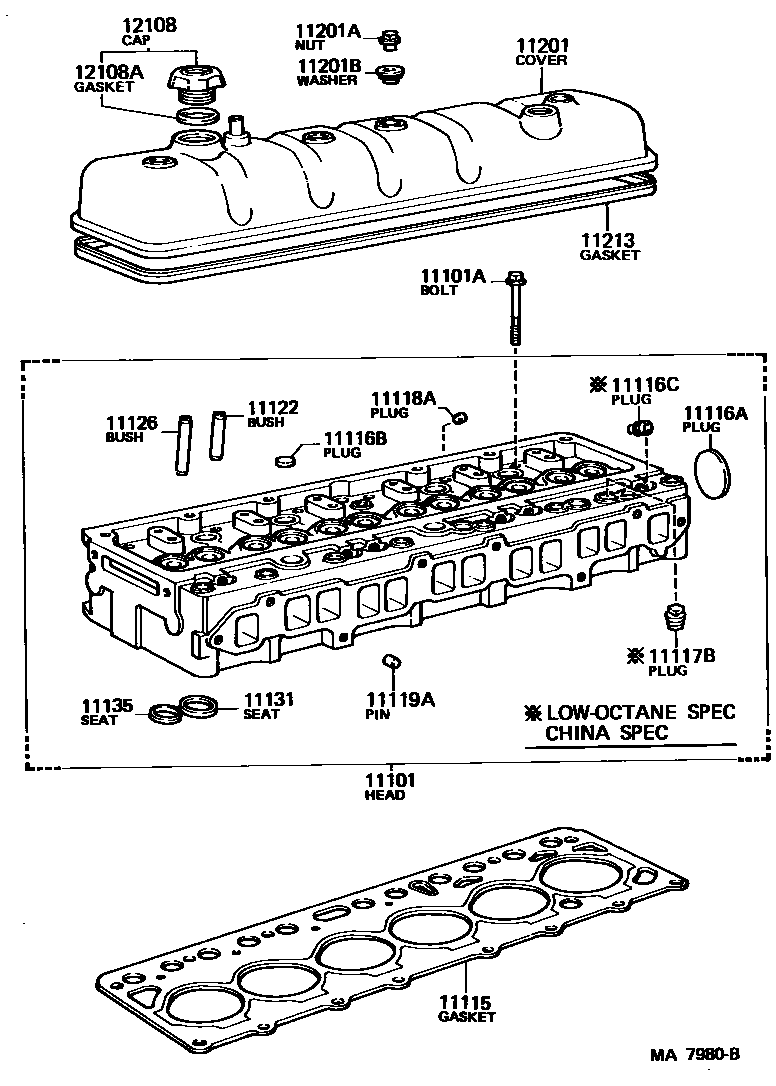

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-17011
sub11101-17012
main11101-17050i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199805-200701
sub11101-35080
sub11101-54121
sub11101-54131
W/O EMISSION CONTROL
sub11101-69096
sub11101-69097
sub11101-69107
W/O(PNC 11101G)
sub11101-69128
sub11176-67011
sub12281-67070
sub12282-67030
sub90119-10907
sub91512-81025
sub91552-81020
sub91651-61016
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1
NO.2
L=133.5
L=121.5
11115GASKET, CYLINDER HEAD
REFER TO REPAIR MANUAL,MARK 1,MARK 1
REFER TO REPAIR MANUAL,MARK 3,MARK 3
REFER TO REPAIR MANUAL,MARK 5,MARK 5
REFER TO REPAIR MANUAL,MARK 1
REFER TO REPAIR MANUAL,MARK 3
REFER TO REPAIR MANUAL,MARK 5
REFER TO REPAIR MANUAL,MARK 1
REFER TO REPAIR MANUAL,MARK 1,MARK 1
REFER TO REPAIR MANUAL,MARK 3
REFER TO REPAIR MANUAL,MARK 3,MARK 3
REFER TO REPAIR MANUAL,MARK 5,MARK 5
REFER TO REPAIR MANUAL,MARK 5
MARK 1
MARK 3
MARK 5
sub11115-35021
sub11115-35022
MARK B
MARK D
MARK F
T=1.40
sub11115-66030
sub11115-66031
MARK 3
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
EMISSION CONTROL(LOW OCTANE)
11117BPLUG, W/HEAD TAPER SCREW, NO.2
LOW OCTANE SPEC
11118APLUG, STRAIGHT, NO.1
11119APIN, STRAIGHT, NO.1
L=18,OD=8
L=53.5,OD=9
L=8,OD=11
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-17020
sub11201-35032
sub11201-61050
sub11201-66021
sub11210-54021
sub11210-54022
sub11210-54041
sub11210-54041
sub11210-54042
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
