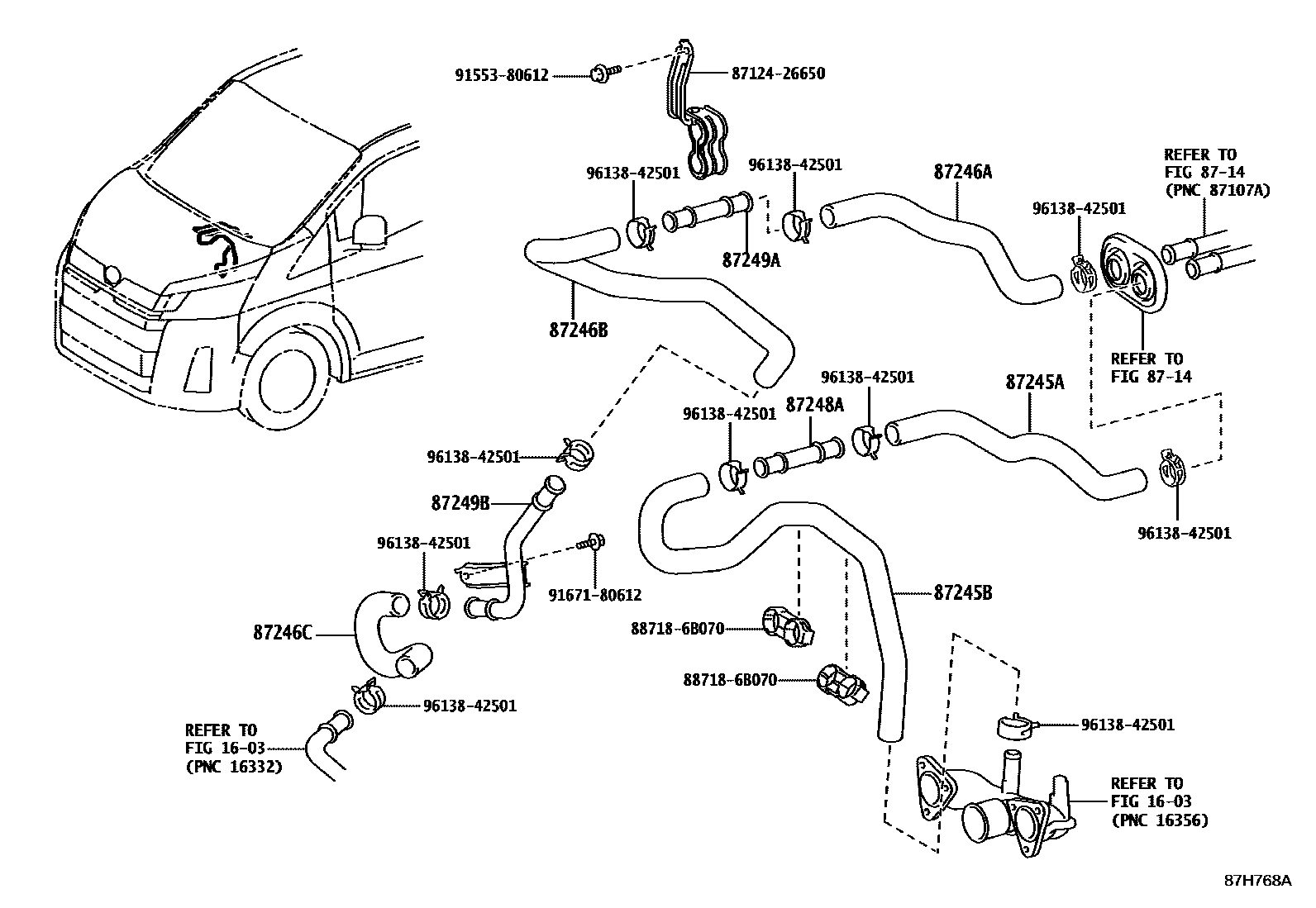

HEATING & AIR CONDITIONING - WATER PIPING
1603RADIATOR & WATER OUTLET
8714HEATING & AIR CONDITIONING - COOLER UNIT
87245AHOSE, HEATER WATER, INLET A
REAR HEATER-WITH(FLOOR SET)
main87245-26G70iGDH303..LHD..H;GDH301..GSOB..N;GDH322..GSOB..6F..N;GDH300,320,322..(D,P,Q)..(AGT,GCC); GDH320..LHD..6FC..GEN;GDH320..LHD..PSOB..6F..GEN;GDH300,301,322..LHD..D..GEN;GDH322..LHD..SG..6FC..N..GEN; GDH320..LHD..GEN;GDH301..LHD..GSOB..D;GDH322..LHD..GSOB..6F..D;GDH322..LHD..6FC..(D,N)..GEN;GDH322..LHD..SG..6F..(D,N)..GEN;GDH300,301,328..LHD..(PSOB,SG,SP)..(GEN,PH,VN)201902
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
main87245-26K40supersedes 87245-26L90iGDH300,320..ARL;GDH304,322..(H,P)..(NZ,TH); GDH300..5D..SP..GEN;GDH301..RHD..SG..6FC..GEN;GDH320,322..RHD..(SG,SP)..(D,N)..GEN;GDH300,301..RHD..4D..(SG,SP)..6F..D..GEN; GDH322..RHD..GSOB..N;GDH300..5D..(PSOB,SP)..GEN;GDH300,301..RHD..(GSOB,PSOB,SHP)..6FC..GEN;GDH300,322..RHD..4D..(GSOB,PSOB,SP)..6F..GEN;GDH301,320,322..RHD..(PSOB,SG,SP)..(D,N)..GEN201902
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
main87245-26L10iGRH300,301,320,322..RHD..GEN; GRH301..RHD..N;GRH301..RHD..6FC..D;GRH300,320,322..RHD..GEN; GRH304;GRH300,320,321..ARL201902
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
main87245-26L60iGRH320,322..LHD..SG..D; GRH320..LHD..SG;GRH322..LHD..6FC..D; GRH322..6F..Q201902-202208
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
REAR HEATER-WITH(FLOOR SET)
87245BHOSE, HEATER WATER, INLET B
main87245-26K30iGDH300..SHP..GEN;GDH301..RHD..6F..N;GDH300..RHD..4D..6FC..GEN; GDH322..ARL;GDH301,321..NZ201902-202208
FRONT HEATER-WITH(PTC HEATER)
main87245-26K90iGDH303..LHD..H;GDH301..GSOB..N;GDH322..GSOB..6F..N;GDH300,320,322..(D,P,Q)..(AGT,GCC); GDH320..LHD..6FC..GEN;GDH320..LHD..PSOB..6F..GEN;GDH300,301,322..LHD..D..GEN;GDH322..LHD..SG..6FC..N..GEN; GDH320..LHD..GEN;GDH301..LHD..GSOB..D;GDH322..LHD..GSOB..6F..D;GDH322..LHD..6FC..(D,N)..GEN;GDH322..LHD..SG..6F..(D,N)..GEN;GDH300,301,328..LHD..(PSOB,SG,SP)..(GEN,PH,VN)201902
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
main87245-26L20iGRH301..6F..N;GRH301..LHD..D;GRH322..RHD..N;GRH322..LHD..6F..GEN;GRH301,322..LHD..6FC..N; GRH301..N;GRH300..GEN;GRH301..6FC..D;GRH322..LHD..N;GRH320..LHD..SP..GEN;GRH320,322..RHD..GEN; GRH303,304,321;GRH300,320,322..ARL,GCC; GRH322..6FC..N;GRH322..6F..GEN;GRH300,301..GEN;GRH322..RHD..6FC;GRH320..RHD..GEN;GRH320..LHD..SP..GEN201902
FRONT HEATER-WITH; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)
L=80.9
87246HOSE, HEATER WATER, OUTLET
87246AHOSE, HEATER WATER, OUTLET A
main87245-26K50supersedes 87245-26G80iGDH300..SHP..GEN;GDH301..RHD..6F..N;GDH300..RHD..4D..6FC..GEN; GDH322..ARL;GDH301,321..NZ201902-202208
FRONT HEATER-WITH(PTC HEATER)
main87245-26L00iGRH300,301,320,322..RHD..GEN; GRH301..RHD..N;GRH301..RHD..6FC..D;GRH300,320,322..RHD..GEN; GRH304;GRH300,320,321..ARL201902
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
main87245-26L70iGRH320,322..LHD..SG..D; GRH320..LHD..SG;GRH322..LHD..6FC..D; GRH322..6F..Q201902-202208
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
main87245-26M70iGDH303..LHD..H;GDH301..GSOB..N;GDH322..GSOB..6F..N;GDH300,320,322..(D,P,Q)..(AGT,GCC); GDH320..LHD..6FC..GEN;GDH320..LHD..PSOB..6F..GEN;GDH300,301,322..LHD..D..GEN;GDH322..LHD..SG..6FC..N..GEN; GDH320..LHD..GEN;GDH301..LHD..GSOB..D;GDH322..LHD..GSOB..6F..D;GDH322..LHD..6FC..(D,N)..GEN;GDH322..LHD..SG..6F..(D,N)..GEN;GDH300,301,328..LHD..(PSOB,SG,SP)..(GEN,PH,VN)201902
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
REAR HEATER-WITH(FLOOR SET)
87246BHOSE, HEATER WATER, OUTLET B
main87245-26L30iGRH301..6F..N;GRH301..LHD..D;GRH322..RHD..N;GRH322..LHD..6F..GEN;GRH301,322..LHD..6FC..N; GRH301..N;GRH300..GEN;GRH301..6FC..D;GRH322..LHD..N;GRH320..LHD..SP..GEN;GRH320,322..RHD..GEN; GRH303,304,321;GRH300,320,322..ARL,GCC; GRH322..6FC..N;GRH322..6F..GEN;GRH300,301..GEN;GRH322..RHD..6FC;GRH320..RHD..GEN;GRH320..LHD..SP..GEN201902
FRONT HEATER-WITH; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)
87246CHOSE, HEATER WATER, OUTLET C
REAR HEATER-WITH(FLOOR SET)
87248APIPE, HEATER WATER INLET, A
main87248-26E10iGRH301..6F..N;GRH301..LHD..D;GRH322..RHD..N;GRH322..LHD..6F..GEN;GRH301,322..LHD..6FC..N; GRH301..N;GRH300..GEN;GRH301..6FC..D;GRH322..LHD..N;GRH320..LHD..SP..GEN;GRH320,322..RHD..GEN; GRH303,304,321;GRH300,320,322..ARL,GCC; GRH322..6FC..N;GRH322..6F..GEN;GRH300,301..GEN;GRH322..RHD..6FC;GRH320..RHD..GEN;GRH320..LHD..SP..GEN201902
FRONT HEATER-WITH; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)
87249APIPE, HEATER WATER OUTLET, A
main87248-26E10iGRH301..6F..N;GRH301..LHD..D;GRH322..RHD..N;GRH322..LHD..6F..GEN;GRH301,322..LHD..6FC..N; GRH301..N;GRH300..GEN;GRH301..6FC..D;GRH322..LHD..N;GRH320..LHD..SP..GEN;GRH320,322..RHD..GEN; GRH303,304,321;GRH300,320,322..ARL,GCC; GRH322..6FC..N;GRH322..6F..GEN;GRH300,301..GEN;GRH322..RHD..6FC;GRH320..RHD..GEN;GRH320..LHD..SP..GEN201902
FRONT HEATER-WITH; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)
87249BPIPE, HEATER WATER OUTLET, B
main87248-26E20iGRH301..6F..N;GRH301..LHD..D;GRH322..RHD..N;GRH322..LHD..6F..GEN;GRH301,322..LHD..6FC..N; GRH301..N;GRH300..GEN;GRH301..6FC..D;GRH322..LHD..N;GRH320..LHD..SP..GEN;GRH320,322..RHD..GEN; GRH303,304,321;GRH300,320,322..ARL,GCC; GRH322..6FC..N;GRH322..6F..GEN;GRH300,301..GEN;GRH322..RHD..6FC;GRH320..RHD..GEN;GRH320..LHD..SP..GEN201902
FRONT HEATER-WITH; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)
8712426650CLAMP, HEATER
main87124-26650
887186B070PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-6B070
9155380612
main91553-80612
9167180612
main91671-80612
9613842501
main96138-42501
16 parts on this diagram · 16 diagrams in section
