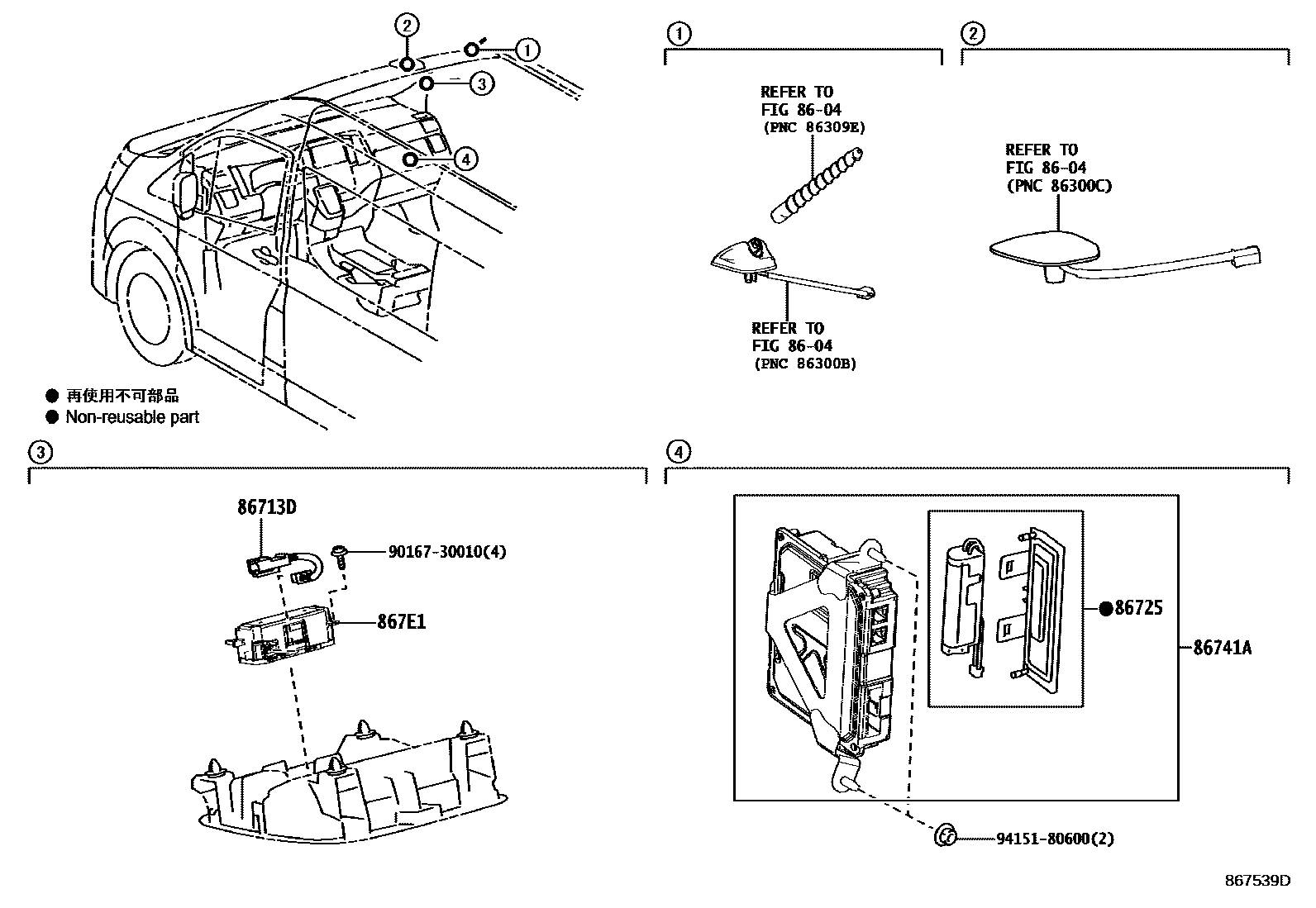

TELEPHONE & MAYDAY

0001 1 0002 1

8604ANTENNA

→ Go to FIG 86-04

86713DWIRE, MAYDAY

main86713-33101iGDH306..LHD201907-202505

86725BATTERY, MOBILEPHONE

main86725-48010supersedes 86725-78011iGDH306..LHD;GDH322..LHD..6F..P..GEN; GDH322..LHD..6F..P..GEN201903-202107

GEORGIA SPEC

main86725-78010iGDH300..SG202107-202208

main86725-78011iGDH303,320..5D..ARL;GDH322..(P,Q)..(ARL,GEN);GDH300..(PSOB,SHP,SP)..ARL; GDH320..5D..ARL;GDH300..SHP..ARL202408

NEW ZEALAND SPEC

86741ATRANSCEIVER, TELEMATICS

main86740-26011iGDH306..LHD;GDH322..LHD..6F..P..GEN; GDH322..LHD..6F..P..GEN201903-202107

GEORGIA SPEC

main86740-50390iGDH306,322..LHD..(G,J,P)..GEN202107-202310

main86740-60390iGDH322..P..GEN202310

main86741-60020iGDH303,322..ARL;GDH300,320..(PSOB,SHP,SP)..ARL; GDH320..5D..ARL;GDH300..SHP..ARL202310-202505

NEW ZEALAND SPEC

main86741-71011iGDH300,320..SG..ARL202107-202208

867E1BOX, COMMUNICATION TELEMATICS

main867E1-33011iGDH306..LHD;GDH322..LHD..6F..P..GEN; GDH322..LHD..6F..P..GEN201903-202107

GEORGIA SPEC

main867E1-60020iGDH306..G202107-202505

9016730010

main90167-30010

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
